flexfactory ag Quick Setup Guide and User’s anyfeed SX Series 58
8.7 FUNCTION CHECK
On the side of the backlight an LED indicates if the backlight was installed correctly and
operates properly. The LED of the G1 is red, that of the G2 is green. Their function is the
same. When it is lit, the backlight is on (static mode). In flash mode of the G2 this LED blinks.
Given that the backlight is installed in the feeder, you need to remove the front cover (as in
step 2 of the backlight installation) to see the LED.

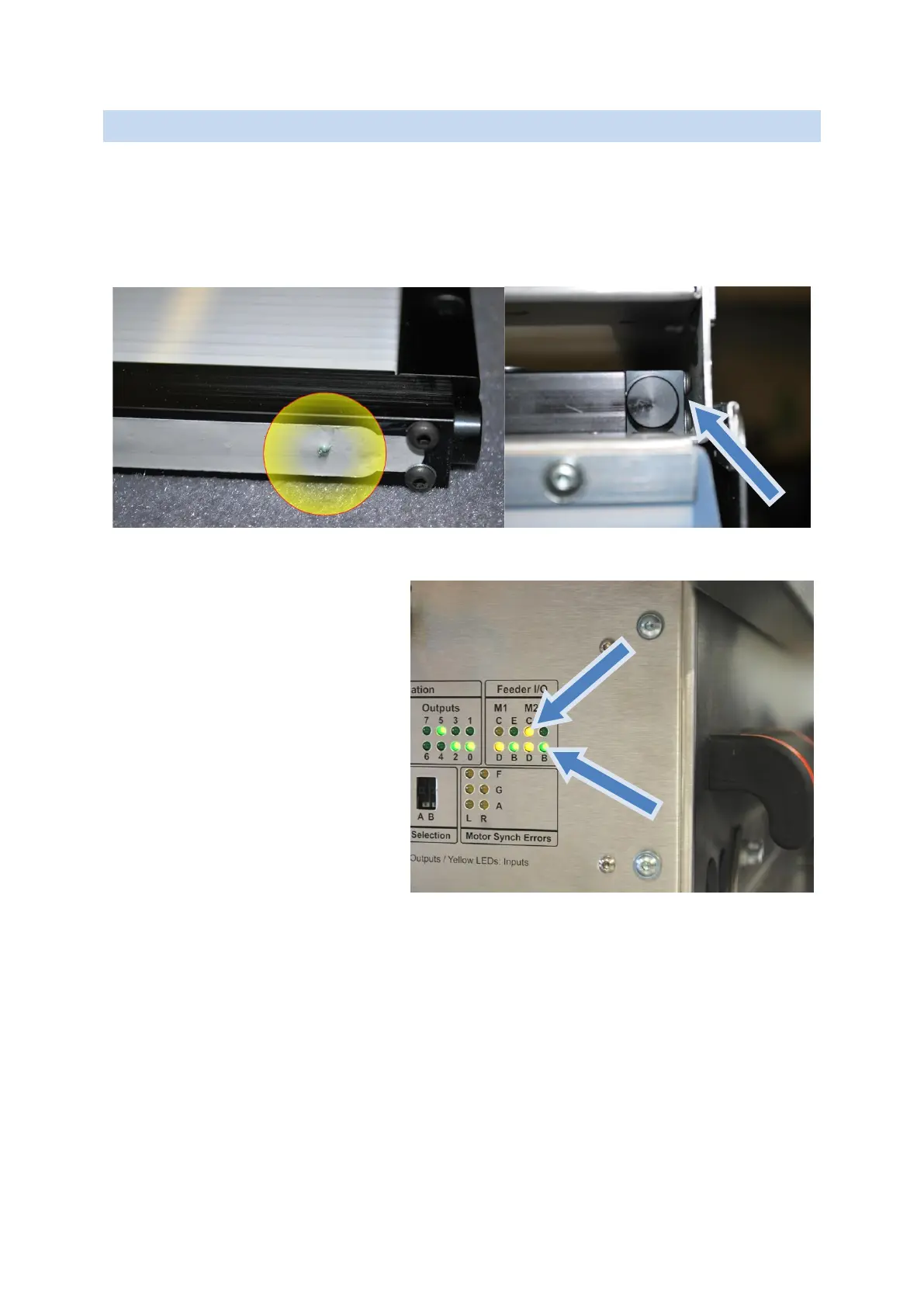

Figure 8-18 LED on the side of the backlight
In static mode a damaged LED bar is
ascertained only immediately after
turning on the LED controller. In
flash mode error notification is
refreshed after every flash. If one of
the LED bars is not connected or a
cable or an LED group is damaged,
the according error LED will light up
after power-up. If the backlight is
ready, LED C of motor 2 (see picture
on the right). This LED is also lit if the
backlight is turned off via output B.
The LED B (see picture on the right)
is lit when the backlight is on.
Backlight ON = LED ON.
Figure 8-19 Check LEDs on the front panel
