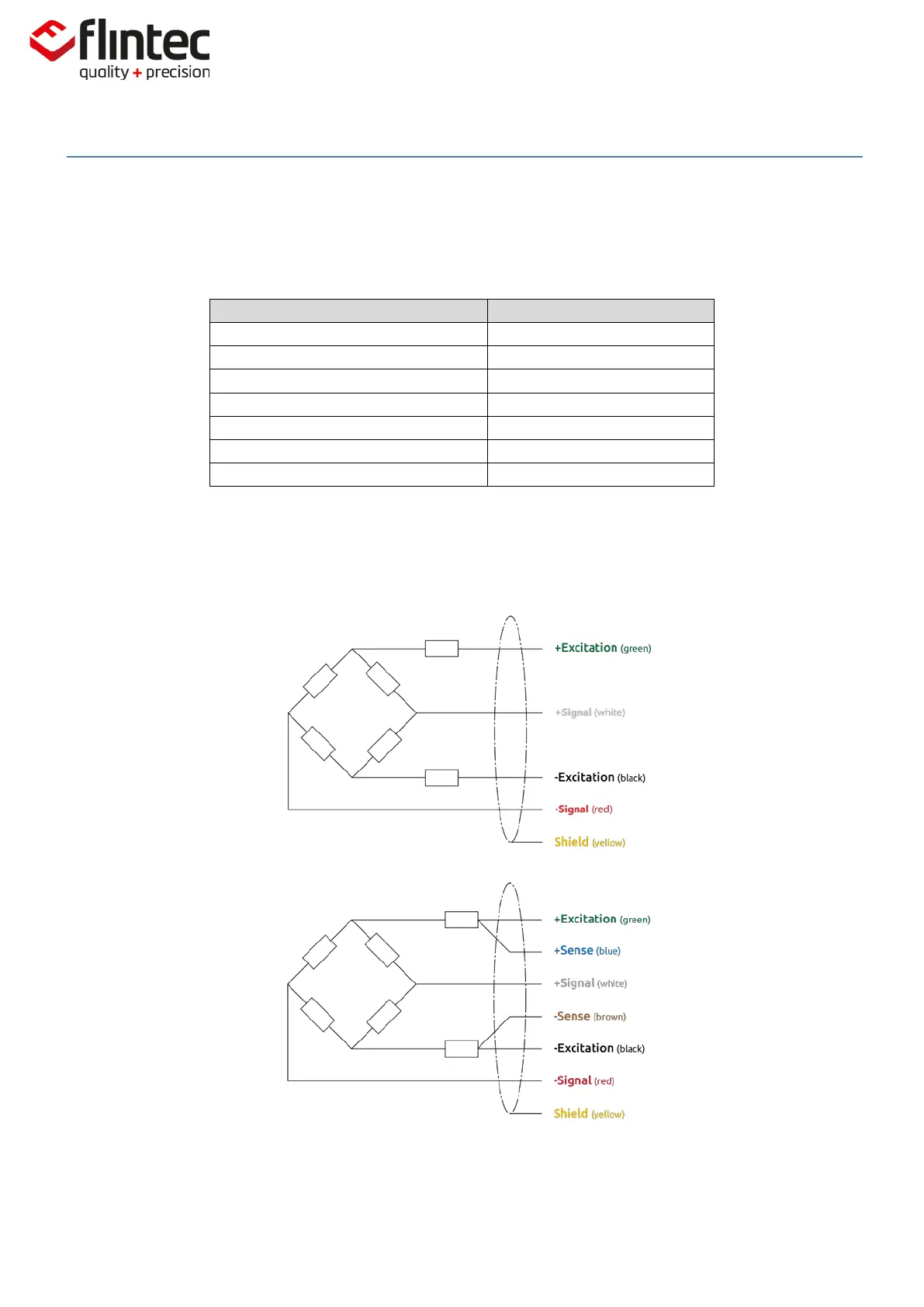

3.3.1. Load-Cell Connections
Connect the input using the colour coding for Load-cell connections:
EM100 J3 Load-Cell Pin-Out
Function
2
Excitation+
4
Sense+
6
Signal+
8
Signal-
10
Sense-
12
Excitation-
1, 3, 5, 7, 9 & 11
GND
Note: If using 4-wire configuration, tie the Excitation+ (EXC+) to the Sense+ (S+) & Excitation-
(EXC-) to the Sense- (S-) for correct configuration.
4-Wire Connection:
6-Wire Connection:
