EM100-
F User Manual
0084293
Page
17
of
93

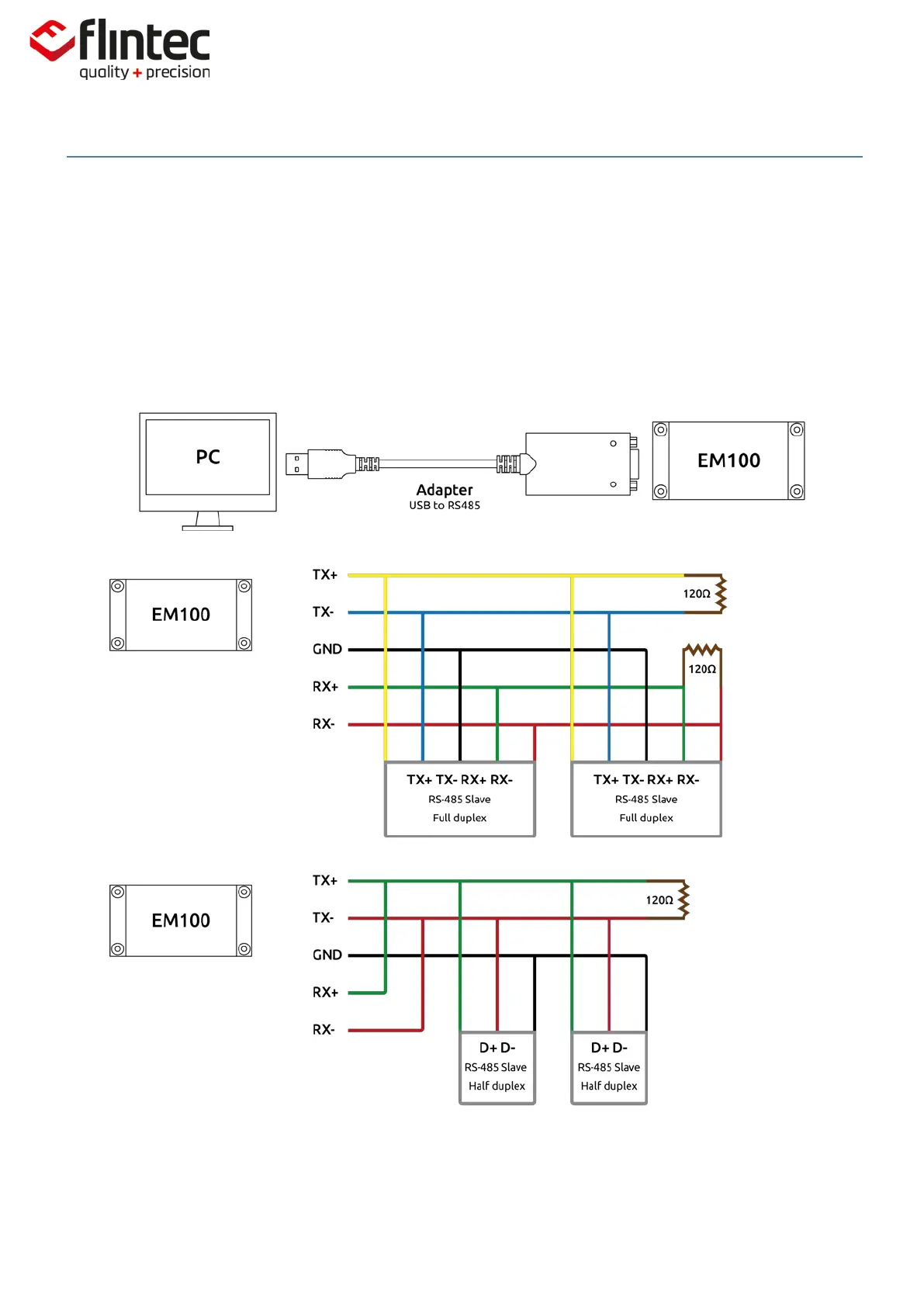

3.3.4.
RS
-
485
Connection
The RS
-
485 network requires a 120Ω termination resistor at both the host end (EM100) and at the
furthest point in the network. The E
M100 has a software selectable terminator built
-
in (see ‘
STR
’
command).
Note:
For half
-
duplex (RS
-
485) operation tie RS
-
485 TX+ with RS
-
485 R
X+ and RS
-
485 TX
-
with
RS
-
485 RX
-.
16
