EM100-F User Manual
0084293
Page 58 of 93
5.11. Save Calibration & Setup Data Commands – CS, WP, SS, SDD
The calibration and setup parameters can be divided in 4 groups:
Calibration: ‘CE’, ‘CM’n’’, ‘CI’, ‘MR’, ‘DS’, ‘DP’, ‘CZ’, ‘CG’, ‘ZT’, ‘FD’, ‘IZ’, ‘ZR’, ‘ZI’, ‘TM’, ‘TN’, ‘ZN’,
‘WT’’, & ‘OF’ saved by command ‘CS’.
Setup: ‘FL’, ‘FM’, ‘UR’, ‘NR’, ‘NT’, ‘AD’, ‘NA’, ‘NS’, ‘BR’, ‘DX’, ‘TD’, ‘CTR’, ‘STR’, ‘SBR’, ‘SD’,
‘MT’, ‘TE’, ‘HT’, ‘TR’, ‘TL’, saved by command ‘WP’.
Set-Points: ‘S0’, ‘S1’, ‘H0’, ‘H1’, ‘A0’, ‘A1’ saved by command ‘SS’.
Dosing: ‘DI’, ‘SC’, ‘AC’, ‘GD’, ‘DT’, ‘DP1-DP21’, ‘TR’ saved by command ‘SDD’.
Note: Calibration data can only be saved if the TAC code is known and precedes the ‘CS’
command. The setup data and set-point data will be stored in non-volatile memory using the ‘WP’,
‘SS’ & ‘SDD’ commands.
5.11.1. CS Save Calibration Data
This command results in the calibration data being saved causing the TAC to be incremented.
Request: TAC Counter CE13.
Calibration Sequence Active.
Calibration Values Saved.
The ‘CS’ command saves changes made using ‘Calibration’ group commands. The Output Format
command ‘OF’ is also included. The command returns ‘ERR’ unless it is preceded by the ‘CE xx’.
5.11.2. WP Save Setup Parameters

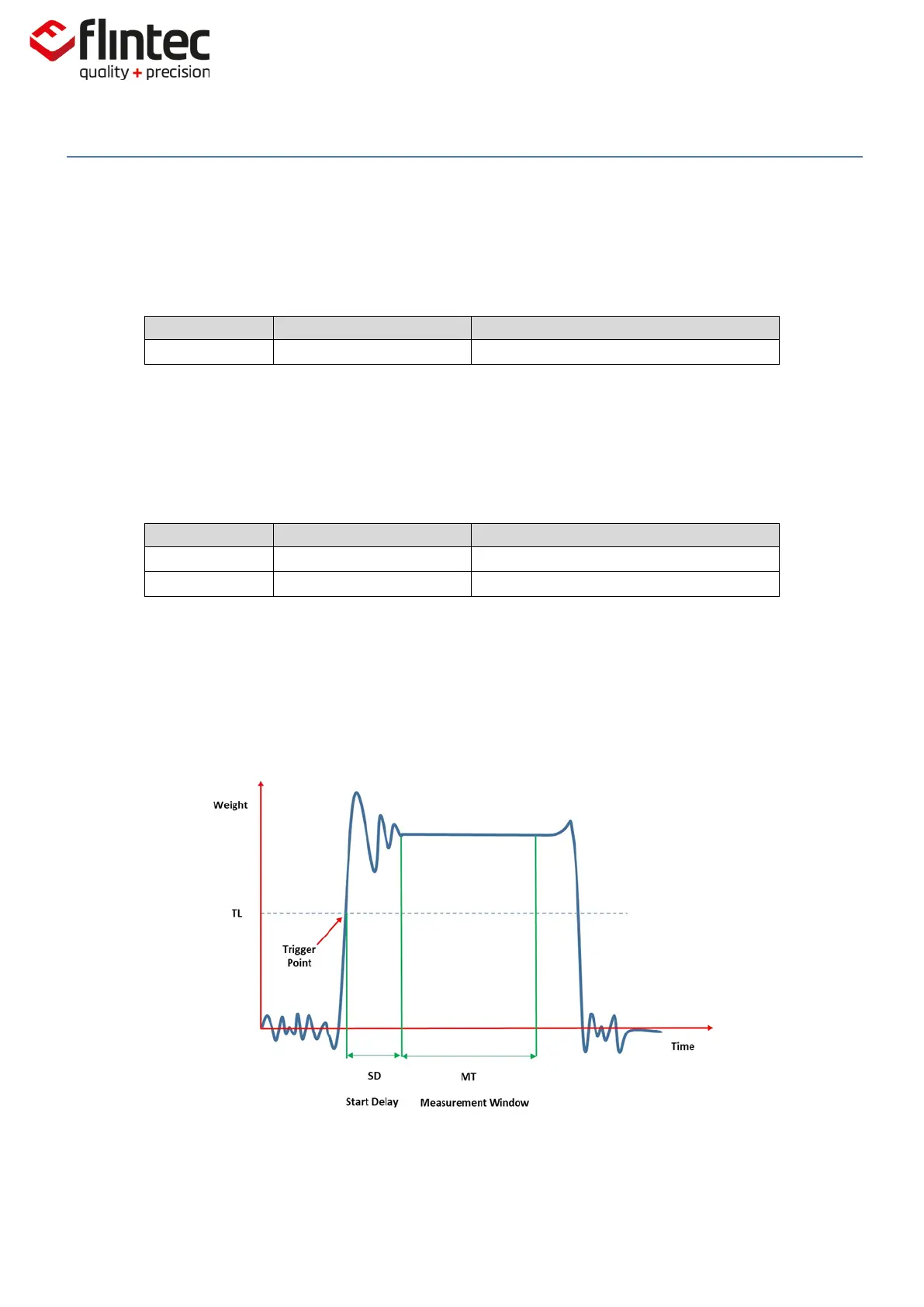

The settings of the following groups, ‘Filter’ (‘FL’, ‘FM’, ‘UR’), ‘No-motion’ (‘NR’, ‘NT’),
‘Communications’ (‘AD’, ‘NA’, ‘NS’, ‘BR’, ‘DX’, ‘TD’, ‘CTR’, ‘STR’, ‘SBR’), & ‘Trigger’ (‘SD’, ‘MT’,
‘TE’, ‘HT’, ‘TR’, ‘TL’) will be saved in non-volatile memory using the ‘WP’ command.
5.11.3. SS Save Set-Point Parameters
The set-points (S’n’), the set-point hysteresis (H’n’) and the set-point allocation (A’n’) will be saved
in non-volatile memory using the ‘SS’ command.
Set-Point Parameter Saved.
