Flintec EM100-C User Manual

EM100-F User Manual
0084293
Page 61 of 93

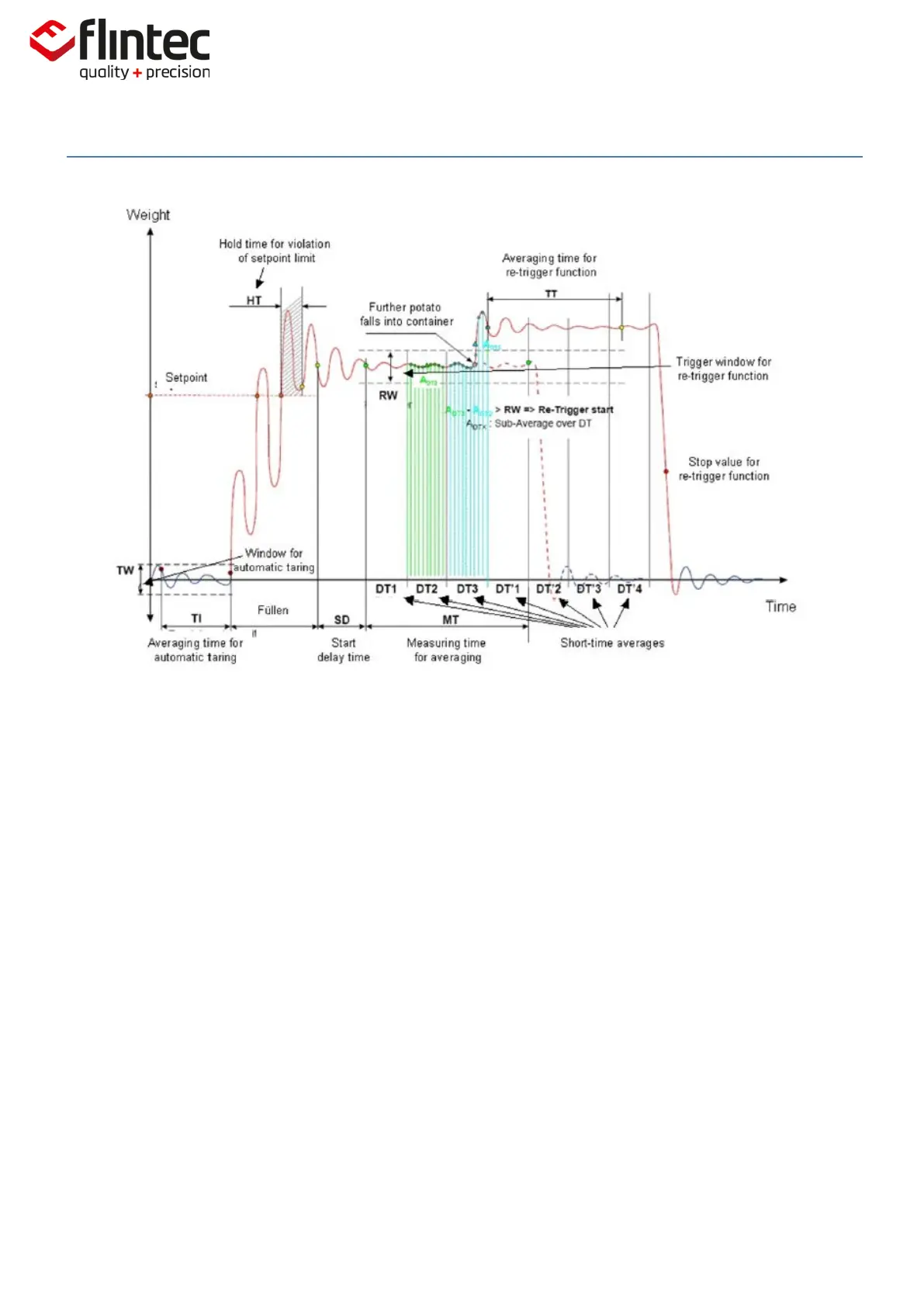

5.12.4. TR Software Trigger
This command starts a measurement cycle. Its execution can be compared to a hardware trigger
on the digital input channel 1.
Master Sends
Slave Responds With
Meaning
TR↵
OK
Trigger Event.
Note: If a measurement cycle is already active, the unit will respond with ‘ERR’.
5.12.5. TL Trigger Level
This command defines a level for a rising edge trigger on the measurement signal. Setting range: 0
to 999999.
Master Sends
Slave Responds With
Meaning
TL↵
T+999999
Request: TL=999999.
TL 100↵
OK
Setup: TL=100.

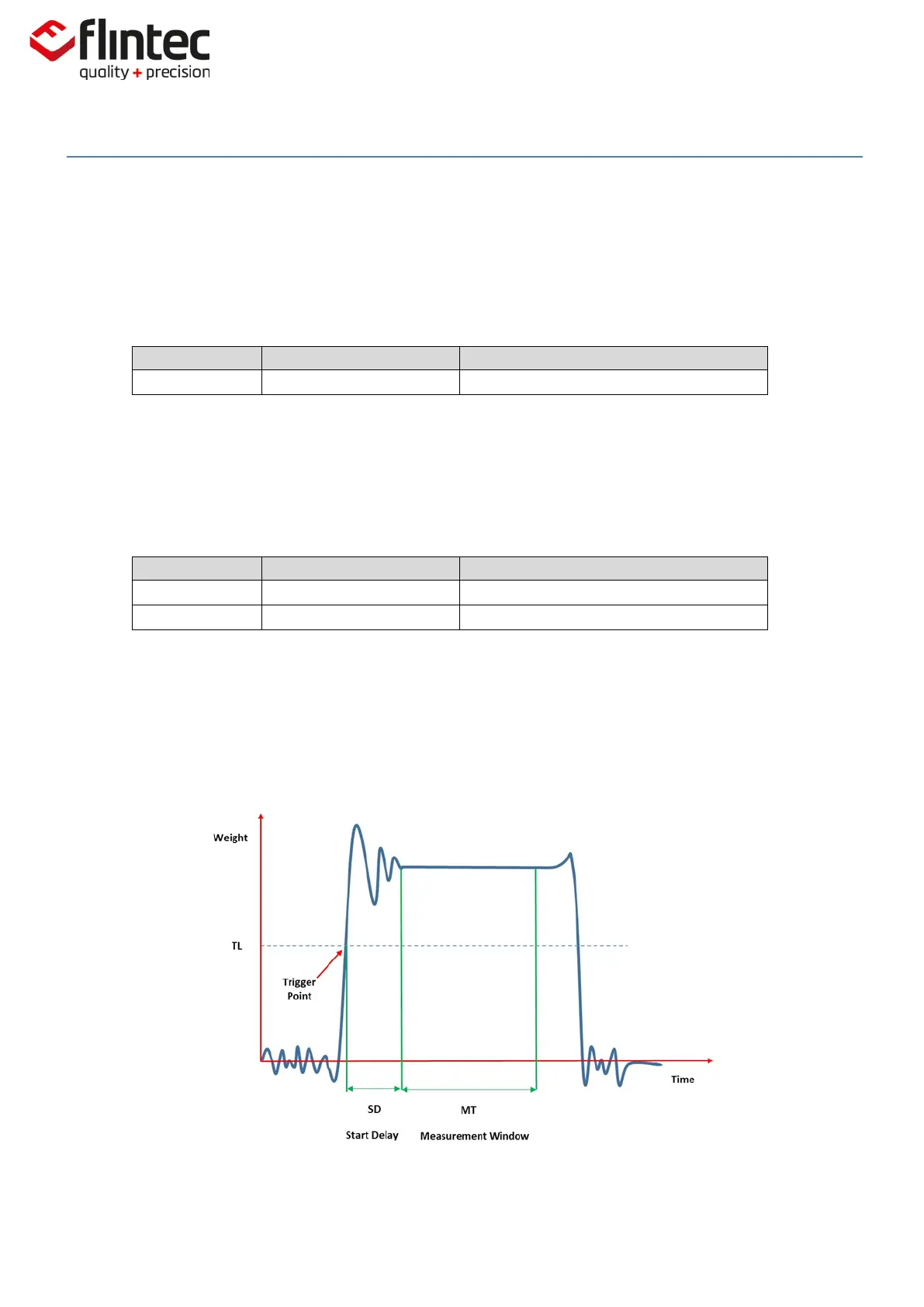

In the example, a new measurement cycle would automatically start, if the signal exceeds 100d
(e.g. 100.0g; trigger commands ‘SD’ & ‘TL’).
Note: All trigger possibilities are always available in parallel. If a software trigger (command ‘TR’)
or a hardware trigger (Digital Input 1) will be used the trigger level should be set to its maximum
value (TL=999999). This setting disables the trigger level.
Factory Default: 999999.
