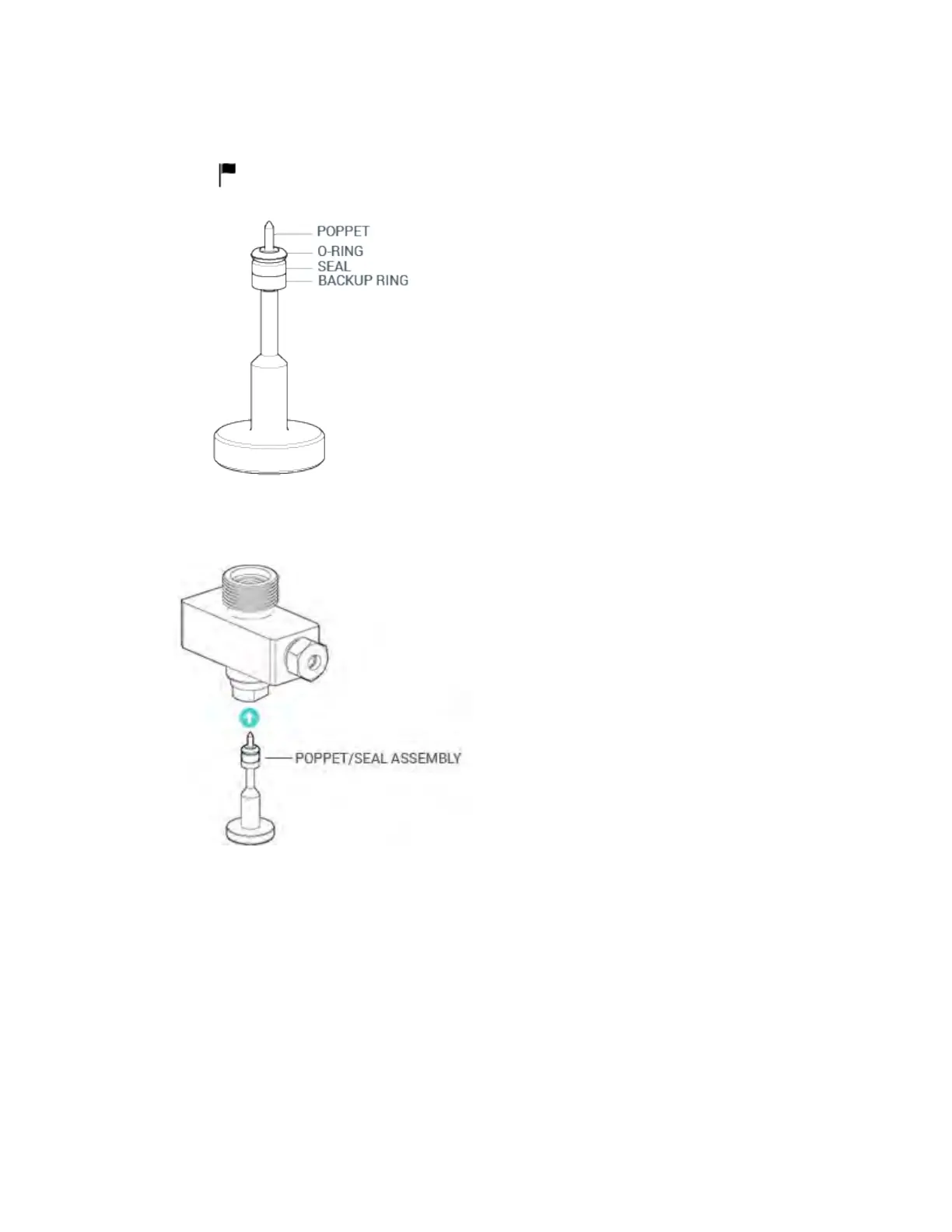

b. Install the -005 O-ring onto the seal, and then install the seal—O-ring toward the poppet's
point—onto the poppet.
The seal assembly should be approximately centered on the length of the poppet.
3. Install the poppet/seal assembly—pointed end first—into the actuator end of the valve body.
Remove the seal guide tool.
4. Apply a thin, even layer of BLUE LUBRICANT to the actuator threads, and then install the
actuator to the valve body.
