Fluke 5700A Series II User Manual

Front Panel Operation
Sample Applications 4
4-57
HI
HI
LO
LO
HI
OUTPUT
V A
SENSE
V
AUX
CURRENT
GUARD GROUND
WIDEBAND
8840A
INPUT
NC
CAL ENABLE
A. V, mA, AND TWO-WIRE OHMS: 100k AND ABOVE
EX SNS
: OFF
EX GRD
: OFF
HI
HI
LO
LO
HI
OUTPUT
V A
SENSE
V
AUX
CURRENT
GUARD GROUND
WIDEBAND
8840A
INPUT
NC
NC
CAL ENABLE
EX SNS
: ON
EX GRD
: OFF
2-WIRE
COMP
OFF
HI
HI
LO
LO
HI
OUTPUT
V A
SENSE
V
AUX
CURRENT
GUARD GROUND
WIDEBAND
8840A
NC
NC
CAL ENABLE
EX SNS
: ON
EX GRD
: OFF
2-WIRE
COMP
ON
B. TWO-WIRE OHMS: 10k AND BELOW
C. FOUR-WIRE OHMS
Ω
Ω
Ω
Ω
Ω
Ω
Ω
CAUTION
USE CONNECTIONS WITH EXPOSED
PLUG TIPS FOR THE OHMS FUNCTION ONLY.
Ω
CALIBRATOR
CALIBRATOR
CALIBRATOR

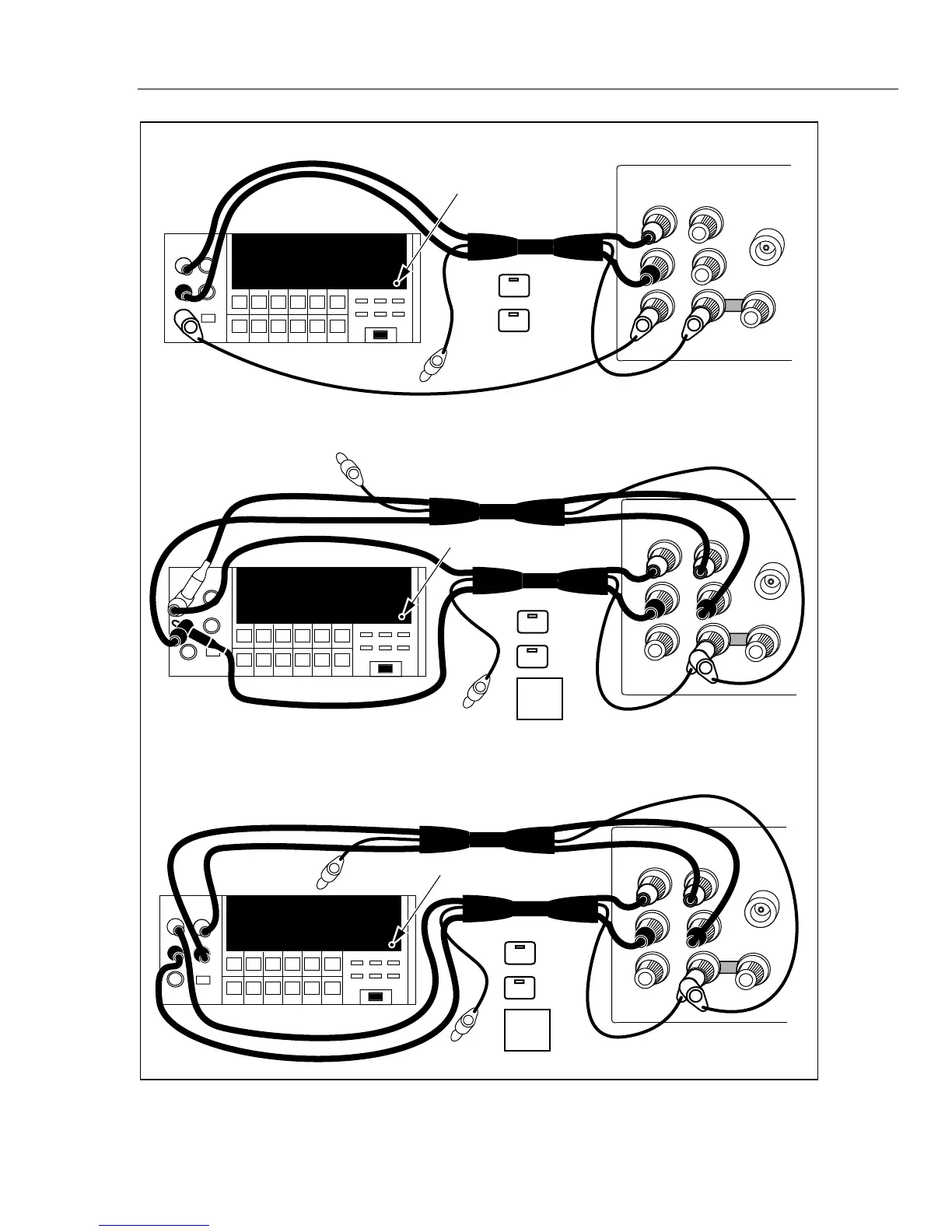

Figure 4-13. 8840A Calibration Connections

Fluke 5700A Series II Specifications

General

Type	Multifunction Calibrator
Operating Temperature	0 °C to 50 °C
Storage Temperature	-20 °C to 70 °C
Voltage Range	0 to 1100 V
DC Voltage Range	10 μV to 1100 V
Frequency Range	1 MHz
Humidity	non-condensing
Power Requirements	100 V to 240 V
