5700A/5720A Series II

Operators Manual

6-8

6-7. Generating a Printout

Follow the procedure below to generate a printout of calibration shift result. Make sure

the serial interface is configured for compatibility with your peripheral device and is

attached with an RS-232C cable. The output will be paginated for a 66-line page.

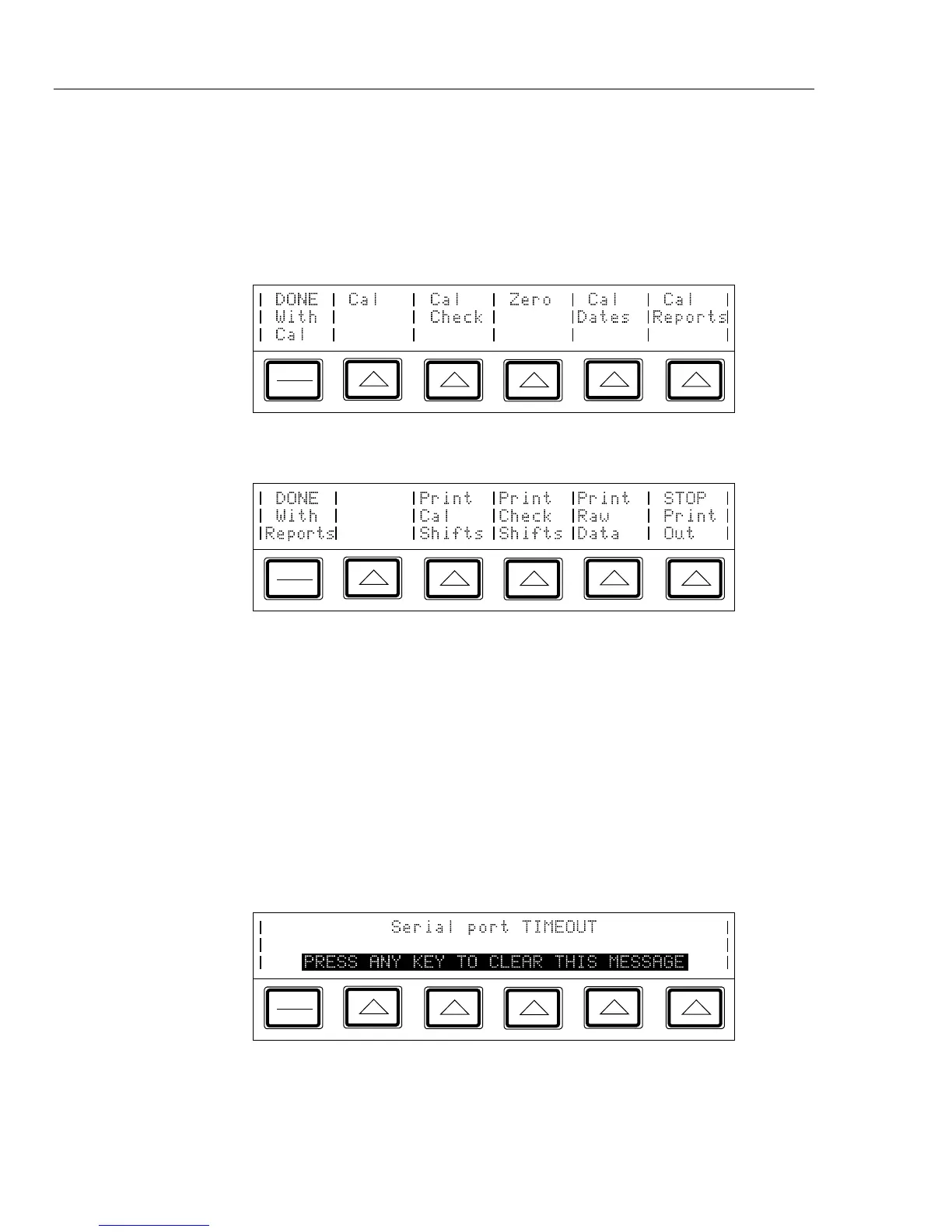

1. Press the “Setup Menus” softkey; then press the “Cal” softkey. The calibration menu

appears as shown below.

2. Press the “Cal Reports” softkey. The calibration reports menu appears as shown.

3. Select one of the following softkeys to generate the printout you prefer:

• To print the main output calibration shift results press the “Print Cal Shifts”

softkey (see Figure 6-2).

• To print the calibration check shift results, press the “Print Check Shifts” softkey.

• To print raw calibration constant data as shown in Figure, press the “Print Raw

Data” softkey.

If you have difficulty generating the printout, make sure the correct cable is attached to

the peripheral device, and the interface parameters are set to the correct values. If the

input buffer of the peripheral device fills, and the device sends the calibrator a stall

command, the calibrator will stop sending data and will start a timer. If the timeout period

expires, printing is aborted and the following message appears on the display:

To remove the message, press any key.

The output is paginated with Line Feed characters to format a 66-line page.
