Overshoot .............................................................. <10 %
Common Mode Rejection
....................................... 140 dB, DC to 400 Hz
Frequency
Ranges (Hz)........................................................ 10.000 – 119.99
0.1200 k – 1.1999 k
1.200 k – 11.999 k
12.00 k – 119.99 k
120.0 k – 1.1999 M
Uncertainty.......................................................... ±0.01 %
Resolution........................................................... 11.999 counts
Phase Lock (Selectable Rear Panel BNC Input)
Phase Uncertainty (except 1100 V range).......... >30 Hz: ±1 ° + 0.05 °/kHz), <30 Hz: ±3 °
Input Voltage....................................................... 1 V to 10 V rms sine wave (do not exceed 1 V for mV ranges)
Frequency Range ............................................... 10 Hz to 1.1999 MHz
Lock Range......................................................... ±2 % of frequency
Lock-In Time ....................................................... Larger of 10/frequency or 10 msec
Phase Reference (Selectable Rear Panel BNC Output)
Range ................................................................. ±180 °
Phase Uncertainty (except 1100 V range).......... ±1 ° at quadrature points (0 °, ±90 °, ±180 °) elsewhere ±2 °
Stability ............................................................... ±0.1 °
Resolution........................................................... 1 °
Output Level........................................................ 2.5 V rms ±0.2 V
Frequency Range ............................................... 50 kHz to 1 kHz, usable 10 Hz to 1.1999 MHz
1000
100
10
0
3.5 V
10000
50 Hz10 Hz 1 kHz 100 kHz 1 MHz 30 MHz
Voltage
Frequency
40 Hz 30 Hz
5725A
5700A-03
2.2 x 10
7
V-Hz
15 Hz
5700A/5720A

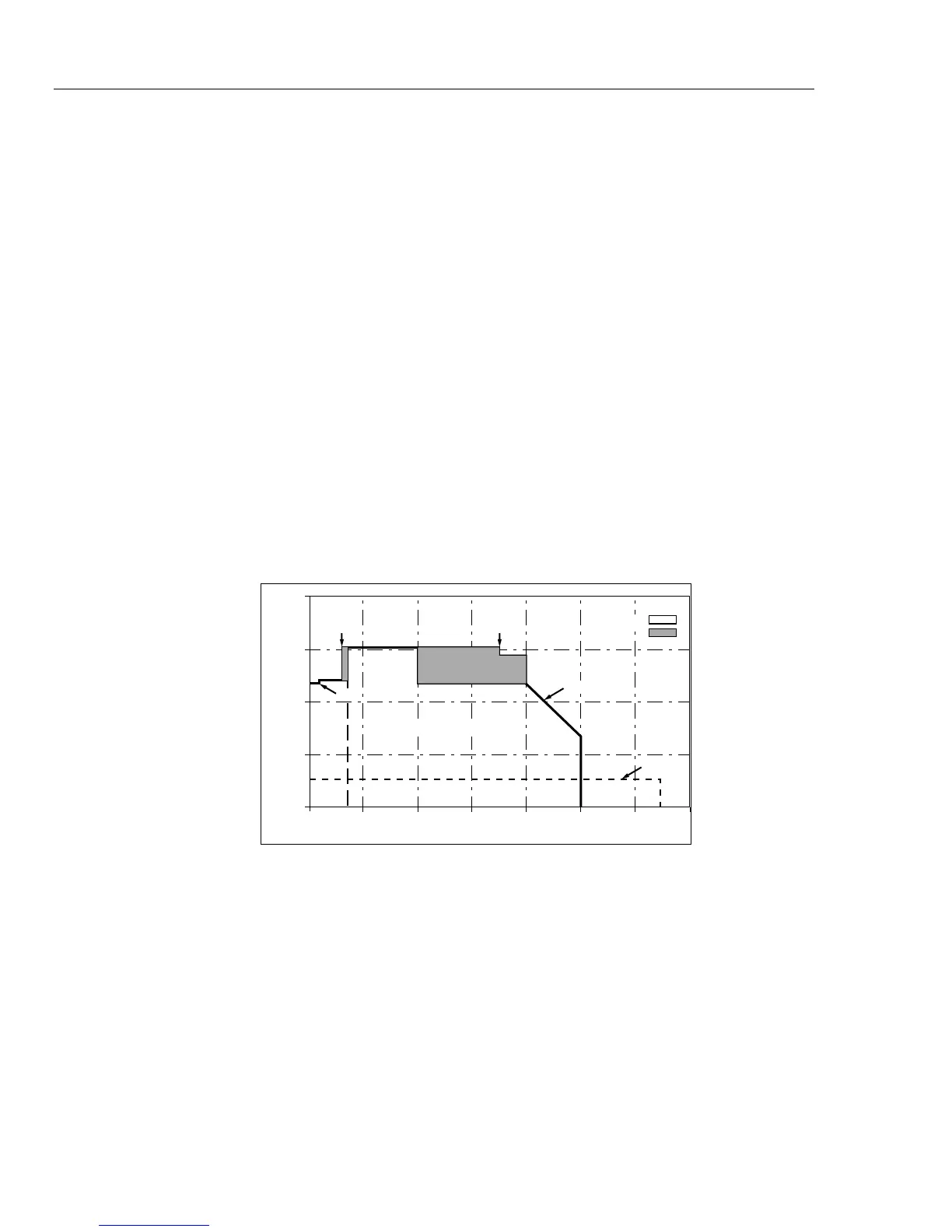

Volt-Hertz Capability
Figure A.

Fluke 5700A Series II Specifications

General

Type	Multifunction Calibrator
Operating Temperature	0 °C to 50 °C
Storage Temperature	-20 °C to 70 °C
Voltage Range	0 to 1100 V
DC Voltage Range	10 μV to 1100 V
Frequency Range	1 MHz
Humidity	non-condensing
Power Requirements	100 V to 240 V
