Installation
Selecting Line Voltage 2
2-7
VOLTAGE
SELECTION
FUSE-F1
T 3A
250V
(SB)
100V
S2 S3 S4
110V
115V
120V
VOLTAGE
SELECTION
FUSE-F1
T 1.5A
250V
(SB)
200V
S2 S3 S4
220V
230V
240V
CAUTION FOR FIRE PROTECTION REPLACE ONLY
WITH A 250V FUSE OF INDICATED RATING.
VOLTAGE
SELECTION
FUSE-F1
T 3A
250V
(SB)
100V
S2 S3 S4
110V
115V
120V
VOLTAGE
SELECTION
FUSE-F1
T 1.5A
250V
(SB)
200V
S2 S3 S4
220V
230V
240V
CAUTION FOR FIRE PROTECTION REPLACE ONLY
WITH A 250V FUSE OF INDICATED RATING.

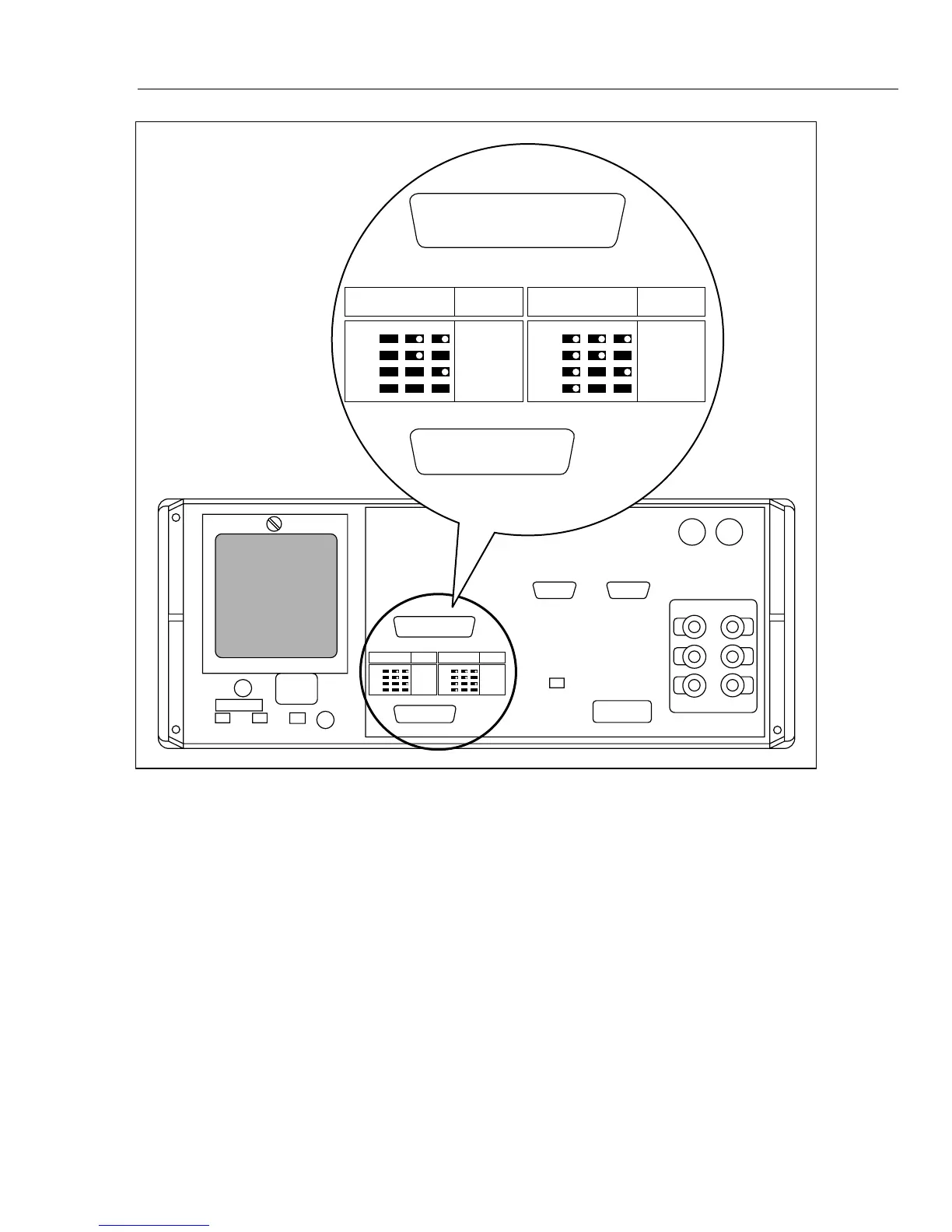

Figure 2-3. Line Power Label and Switch Location
