22

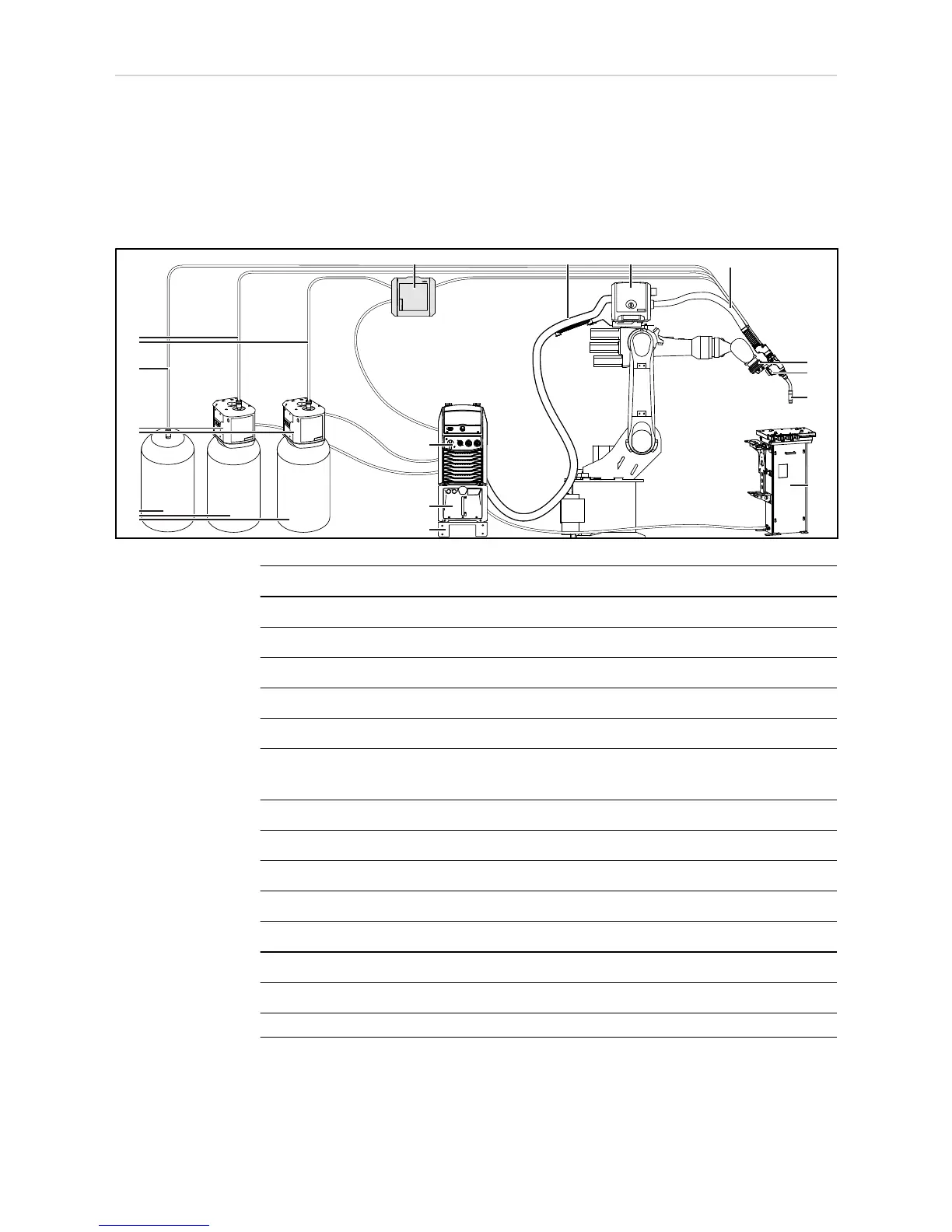

Overview of the
conventional TPS
/i welding system
with external
wirefeeding hose
The conventional TPS/i welding system with external wirefeeding hose is available in three
different variants:
- Variant A: without an unreeling wirefeeder
- Variant B: with an unreeling wirefeeder (2)
- Variant C: with two unreeling wirefeeders (2) and (5)
The variants differ in terms of the possible wirefeeding distance.
(1) Wire drum
(2) B and C only: Unreeling wirefeeder, for example WF 30 R REEL 2R
(3) PowerLiner (max. 10 m) or wirefeeding hose (max. 8 m)
(4) Wirefeeding hose
(5) C only: Unreeling wirefeeder, for example WF 30 R REEL 2R
(6) Interconnecting hosepack
(7) Media splitter, for example SB 500i R
"QuickConnect" option
(8) Torch hosepack
(9) CrashBox and robot flange
(10) WF 25i Robacta Drive
(11) Robot welding torch
(12) Service station, for example Robacta TX/i
(13) Trolley or upright console
(14) Cooling unit, for example CU 1400i Pro
(15) Power source, for example TPS 320i
A
BC
(1)
(13)
(14)
(15)
(3)
(4)
(2)
(9)
(10)
(11)
(12)
(6) (7)(5)
(8)
max.
15 m
max.15m
max.15m
