23
EN

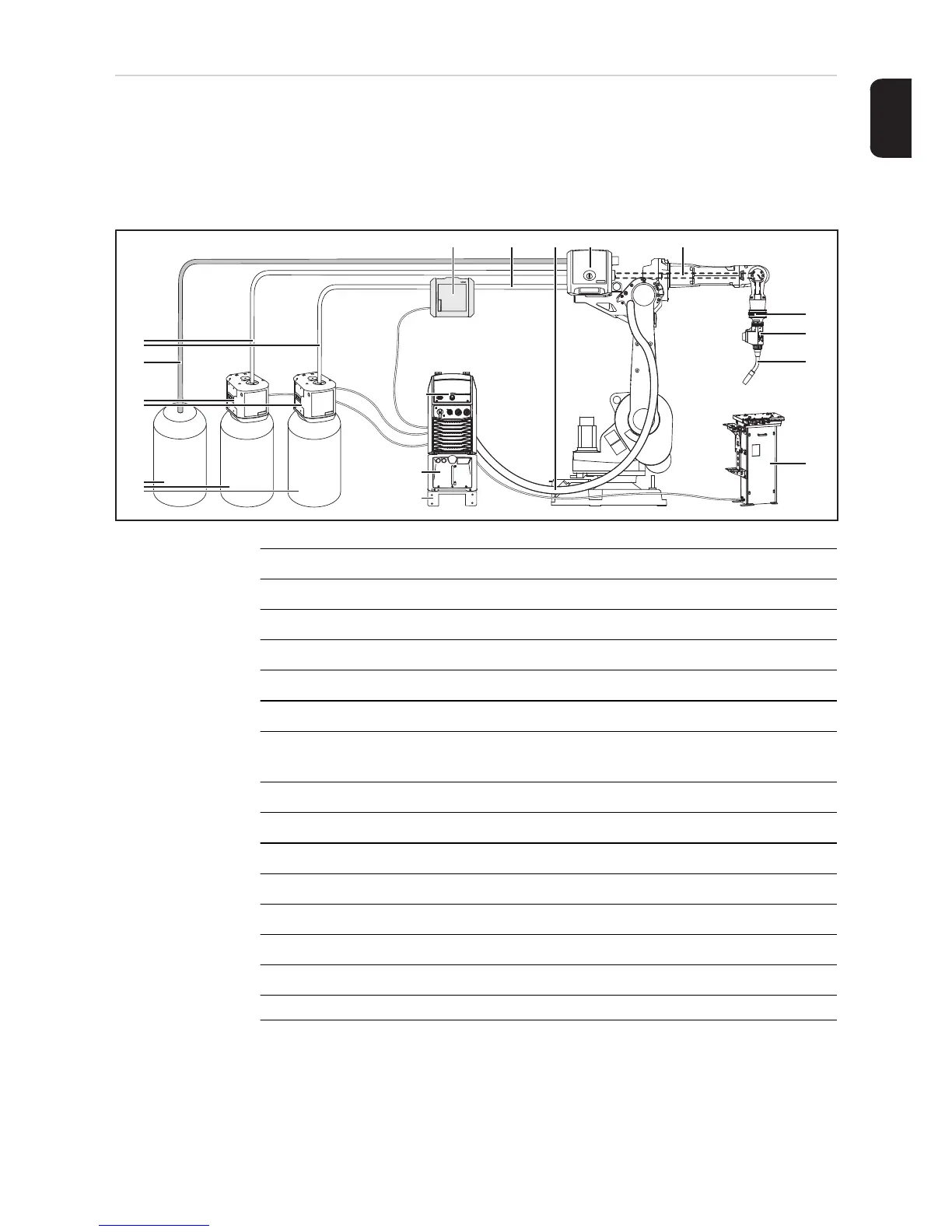

Overview of the
TPS/i PAP weld-
ing system
The TPS/i PAP welding system is available in three different variants:
- Variant A: with PowerLiner (3)
- Variant B: with an unreeling wirefeeder (2)
- Variant C: with two unreeling wirefeeders (2) and (5)
The variants differ in terms of the possible wirefeeding distance.
(1) Wire drum
(2) B and C only: Unreeling wirefeeder, for example WF 30 R REEL 2R
(3) A only: PowerLiner (max. 8 m) or wirefeeding hose (max. 6 m)
(4) B and C only: Wirefeeding hose
(5) C only: Unreeling wirefeeder, for example WF 30 R REEL 2R
(6) Interconnecting hosepack
(7) Media splitter, for example SB 500i R PAP
"QuickConnect" option
(8) Torch hosepack
(9) CrashBox and robot flange
(10) WF 25i Robacta Drive
(11) Robot welding torch
(12) Service station, for example Robacta TX/i
(13) Trolley or upright console
(14) Cooling unit, for example CU 1400i Pro
(15) Power source, for example TPS 320i
A
B
C
max.
15 m
max.15mmax.15m
(1)
(13)
(14)
(15)
(3)
(4)
(2)
(9)
(10)
(11)
(12)
(5) (4) (6) (7) (8)
