Areas of utilisa-
tion
The clamp system can be used for the following PushPull robot hosepacks:
- MHP /i G/W RD hosepacks
Scope of supply

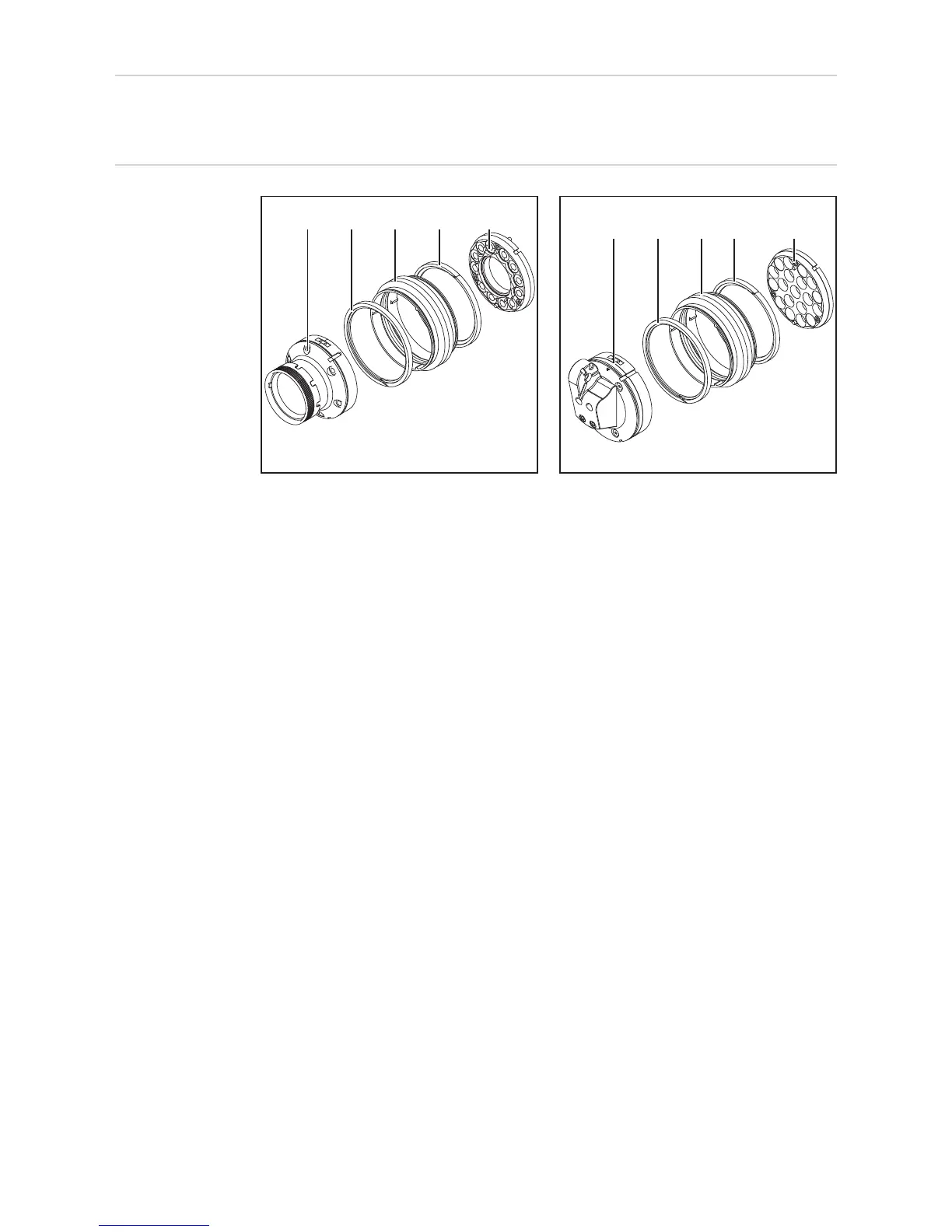

CrashBox Drive /i PAP scope of supply Conventional CrashBox /i scope of supply
(1) CrashBox Drive /i holder
(2) Locking ring fitted to (3) on delivery
(3) Bellows
(4) Magnetic ring with three M4x16 cheesehead screws
Do not fit the CrashBox Drive /i holder (1) and magnetic ring (4) together before fitting to
the robot. The design of the two components means that they are very difficult to part.
(1) (2) (3) (2) (4)
(1) (2) (3) (2) (4)
