49
EN
SB 500i R PAP control elements, connections and
mechanical components
Safety
Control elements,
connections and
mechanical com-
ponents

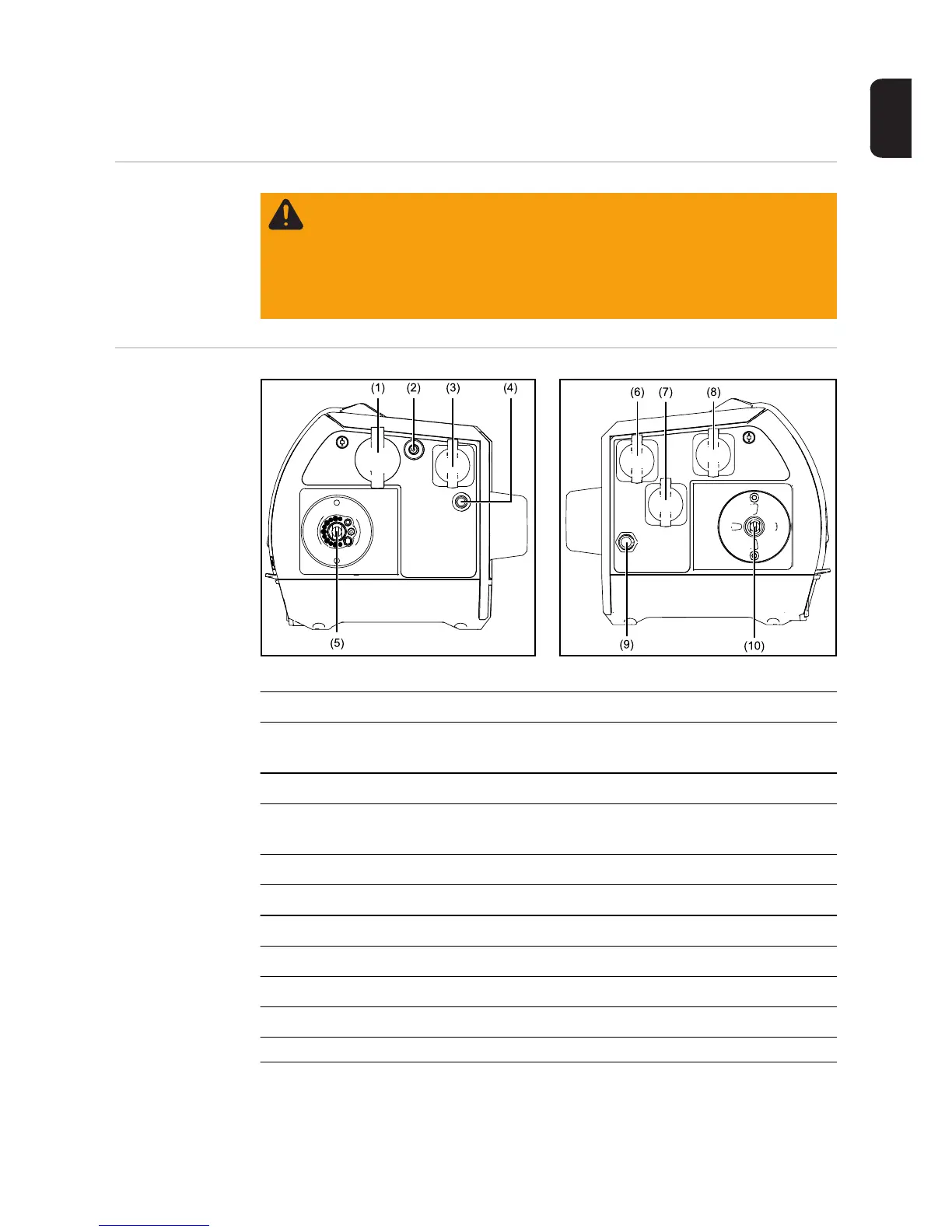

Front Rear
No. Function
(1) (+) current socket
for connecting the power cable from the interconnecting hosepack
(2) Shielding gas connection
(3) SpeedNet connection socket
for connecting the SpeedNet cable from the interconnecting hosepack
(4) Blanking cover for option 1
(5) Welding torch connection
(6) Blanking cover for option 3
(7) Blanking cover for option 4
(8) Blanking cover for option 5
(9) Blanking cover for option 2
(10) Wire infeed
WARNING! Operating the equipment incorrectly can cause serious injury and
damage. All the functions described may only be used by trained and qualified
personnel. Do not use the functions described until you have thoroughly read and
understood the following documents:
- this document
- all the operating instructions for the system components, especially the safe-
ty rules
