Fronius TPS/i Robotics PushPull CMT - Crashbox I

139
EN
CrashBox /i
CrashBox /i
a)

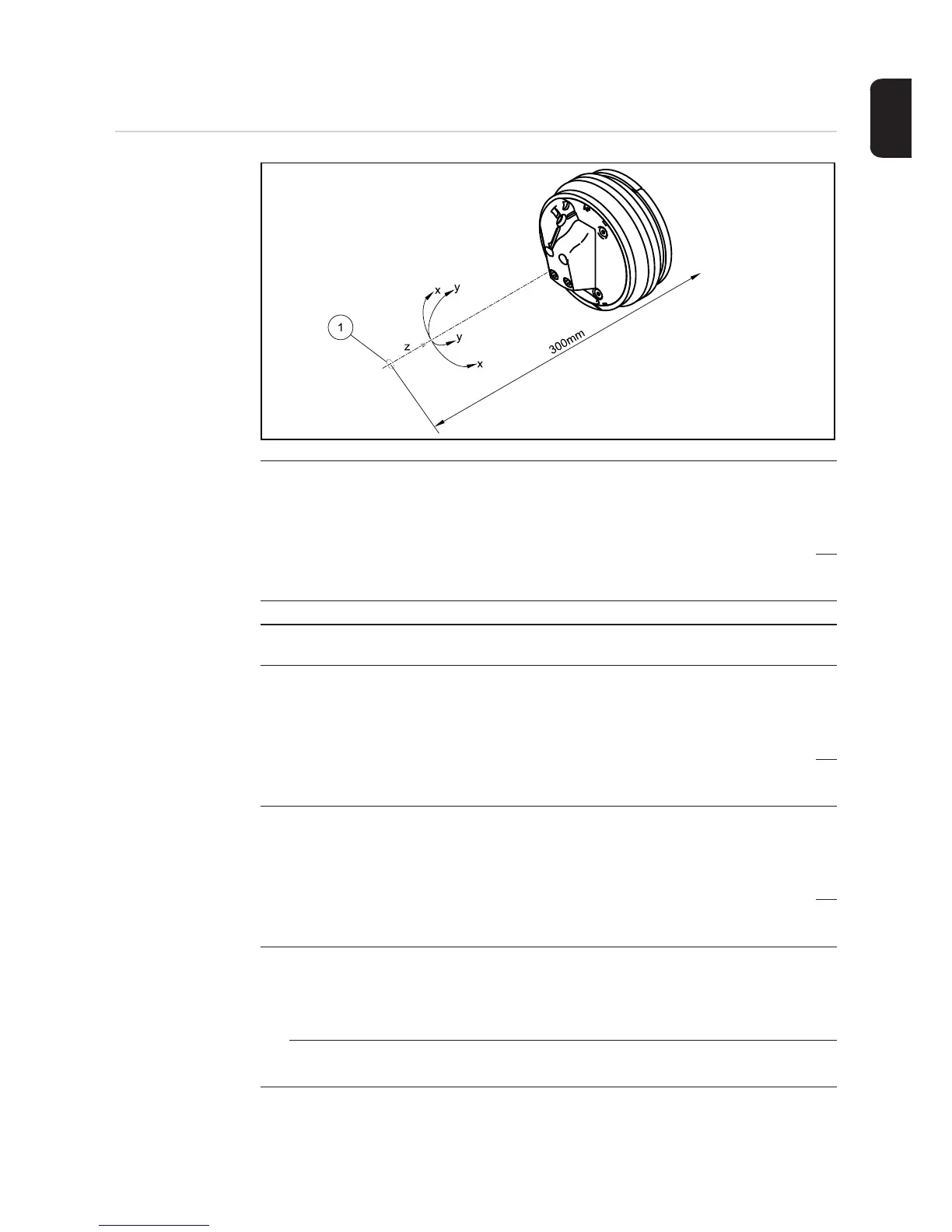

At a distance of 300 mm from the robot flange
b)
With bellows: Ø110 mm
Item numbers
CrashBox /i 44,0350,3589
CrashBox /i XL 44,0350,3760
CrashBox /i XXL 44,0350,3380
CrashBox Drive /i PAP 44,0350,3379
CrashBox Drive /i PAP XXL 44,0350,3754
Reset accuracy (1) ± 0.05 mm
a)
Triggering torques in x/y direction See table on the
following page
Maximum deflection in x/y direction
CrashBox /i ~ 45°
CrashBox /i XL ~ 45°
CrashBox /i XXL ~ 45°
CrashBox Drive /i PAP ~ 30°
CrashBox Drive /i PAP XXL ~ 30°
Weight
CrashBox /i 1200 g
CrashBox /i XL 1200 g
CrashBox /i XXL 1200 g
CrashBox Drive /i 920 g
CrashBox Drive /i PAP XXL 920 g
Dimensions
CrashBox /i Ø90 mm x 60 mm
b)
CrashBox /i XL Ø90 mm x 60 mm
b)
CrashBox /i XXL Ø90 mm x 60 mm
b)
CrashBox Drive /i PAP Ø90 mm x 84.5 mm
b)
CrashBox Drive /i PAP XXL Ø90 mm x 84.5 mm
b)
