Fronius TPS/i Robotics PushPull CMT - Fitting the SB 60 I R to the Robot; Fitting the SB 60 I R to the Balancer

62
Fitting the SB 60i
R to the robot

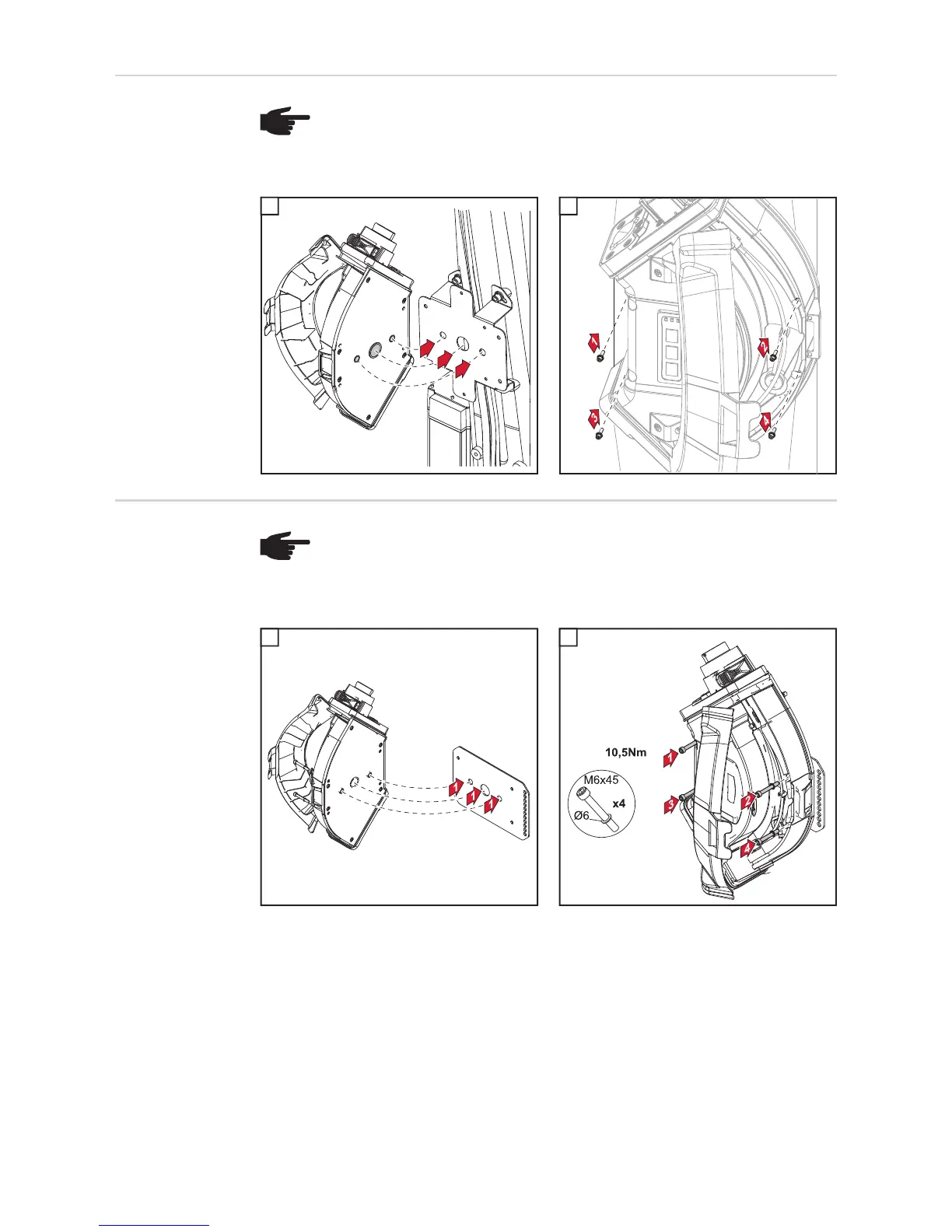

The installation of the SplitBox SB 60i R is illustrated using the right version of the appli-
ance. The left version of the appliance should be installed the other way around.
1 2
Fitting the SB 60i
R to the balancer
1 2
NOTE! Depending on the robot, please also note the instructions and information
in the leaflets on installing the holding plate for the SplitBox.
1
2
NOTE!
- Use a balancer with a load capacity of at least 18 kg
- Use a second balancer for hosepacks longer than 1.75 m. Position the bal-
ancer halfway along the length of the hosepack.
1
2
