Fronius TPS/i Robotics PushPull CMT - Fitting the Hosepack to the WF Robacta Drive (Conventional)

68

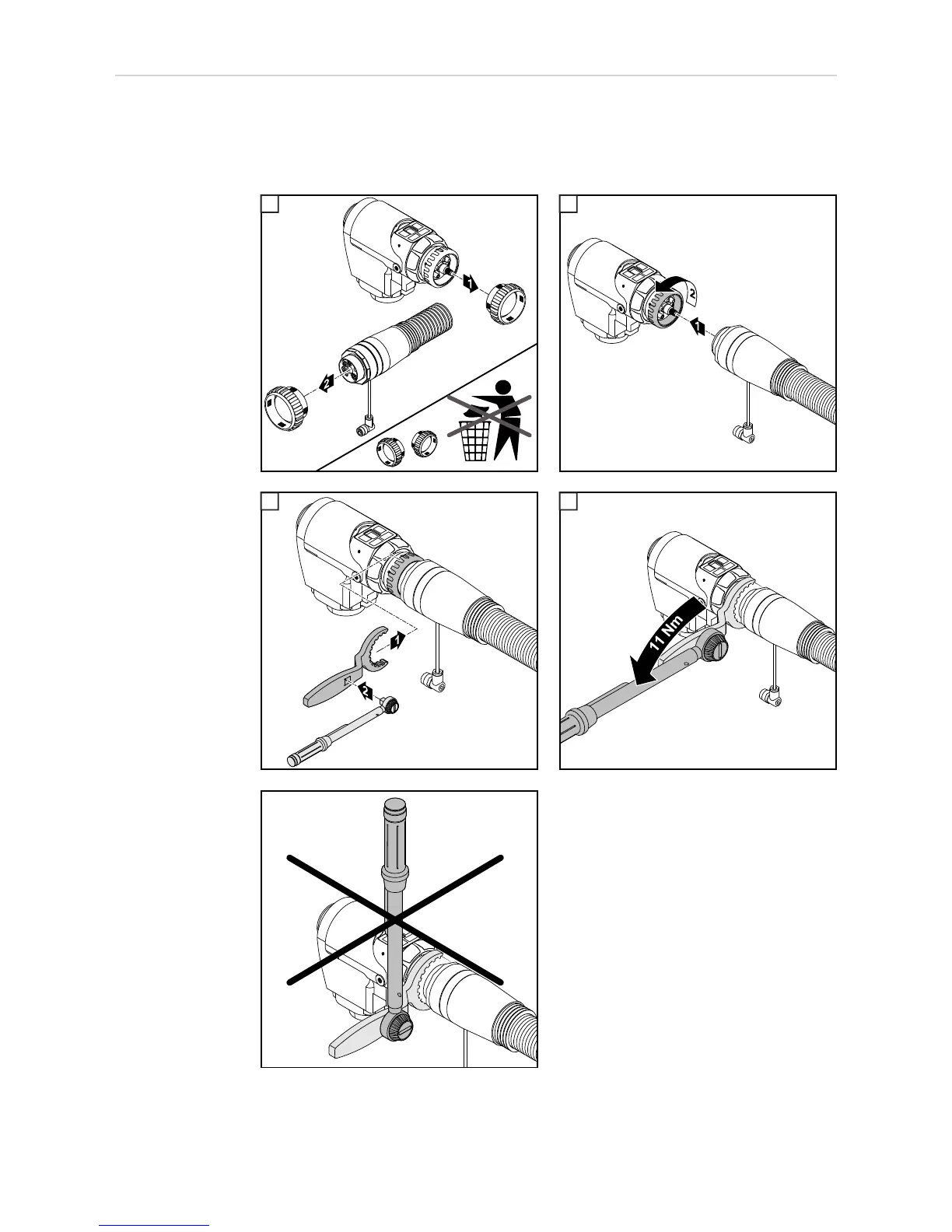

Fitting the hose-
pack to the WF
Robacta Drive
(conventional)
IMPORTANT! Whenever the hosepack is fitted or removed, ensure that the coupling point
is clean and dry. Remove any coolant that has escaped from the coupling point.
1 2
3 4
IMPORTANT! Only fit the drive unit when the power source is switched off.
1
2
3 4
