46
(4) Welding torch connection
(5) SpeedNet connection socket
for connecting the SpeedNet cable from the interconnecting hosepack
(6) Blanking cover for option 5
(7) Shielding gas connection
(8) (+) current socket
for connecting the power cable from the interconnecting hosepack
(9) Blanking cover for option 2
(10) Wire infeed

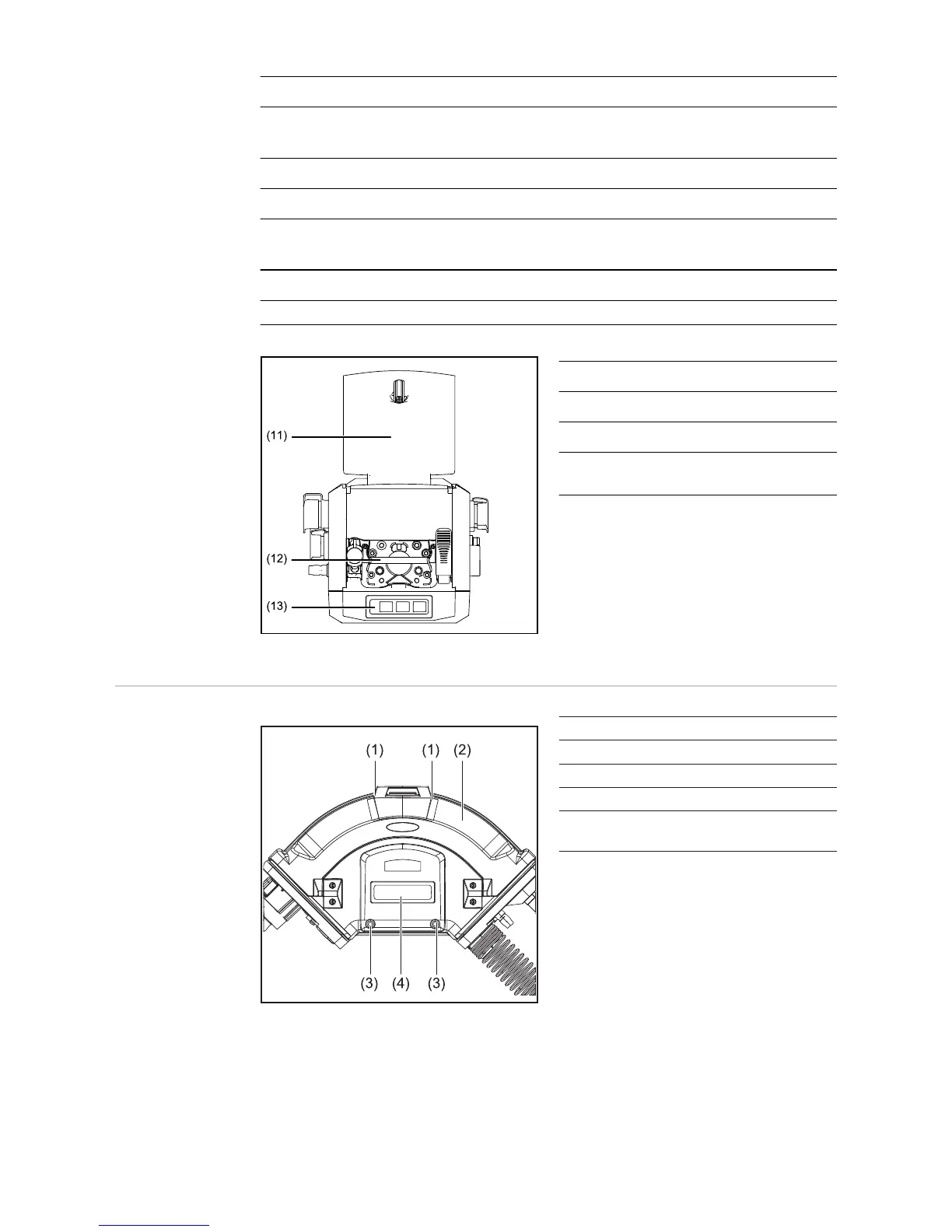

Side view (right variant)
No. Function
(11) Cover
(12) Implementation
(13) Gas test / wire threading control
panel (option)
SB 60i R:
control elements,
connections and
mechanical com-
ponents
Front
No. Function
(1) Hole for fitting to robot
(2) Cover
(3) Hole for fitting to robot
(4) Blanking cover / gas test / wire
threading control panel option
A
B
