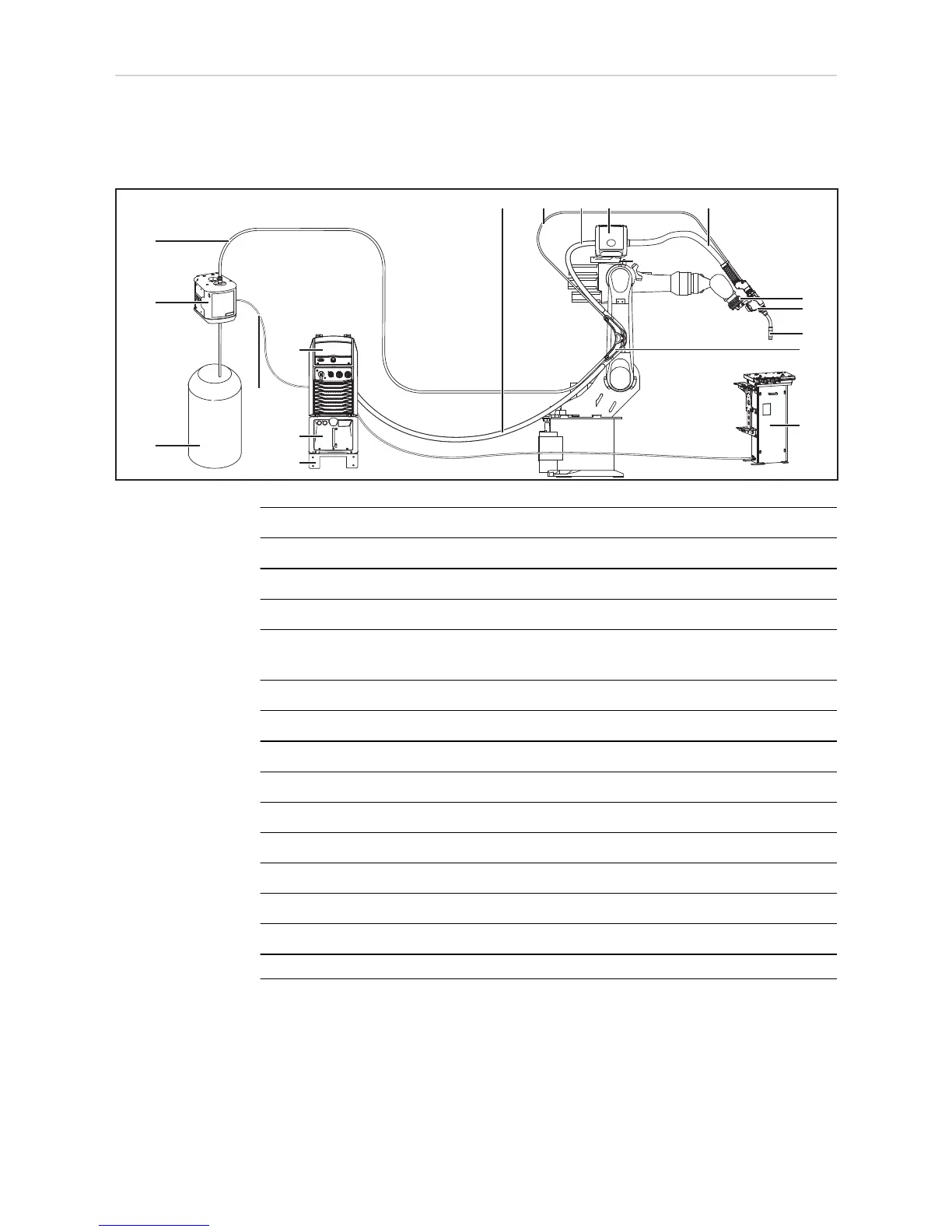

Overview of the
conventional TPS
/i CMT welding
system
(1) Wire drum
(2) Unreeling wirefeeder, for example WF 30i REEL 2R
(3) Wirefeeding hose or PowerLiner
(4) Interconnecting hosepack
(5) Media splitter, for example SB 500i R
"QuickConnect" option
(6) Torch hosepack
(7) CrashBox and robot flange
(8) WF 60i Robacta Drive CMT
(9) Robot welding torch
(10) Wire buffer
(11) Service station, for example Robacta TX/i
(12) Trolley or upright console
(13) Cooling unit, for example CU 1400i Pro
(14) Power source, for example TPS 320i
(15) SpeedNet Cable CON
A
max. 6 m
(1)
(12)
(13)
(14)
(15)
(3)
(2)
(7)
(8)
(9)
(11)
(10)
(4) (4)(3) (5) (6)
max. 4 m
0 - max. 8 m
