Fronius TPS/i Robotics PushPull CMT - Installing the CrashboxI Dummy on the Robot

66

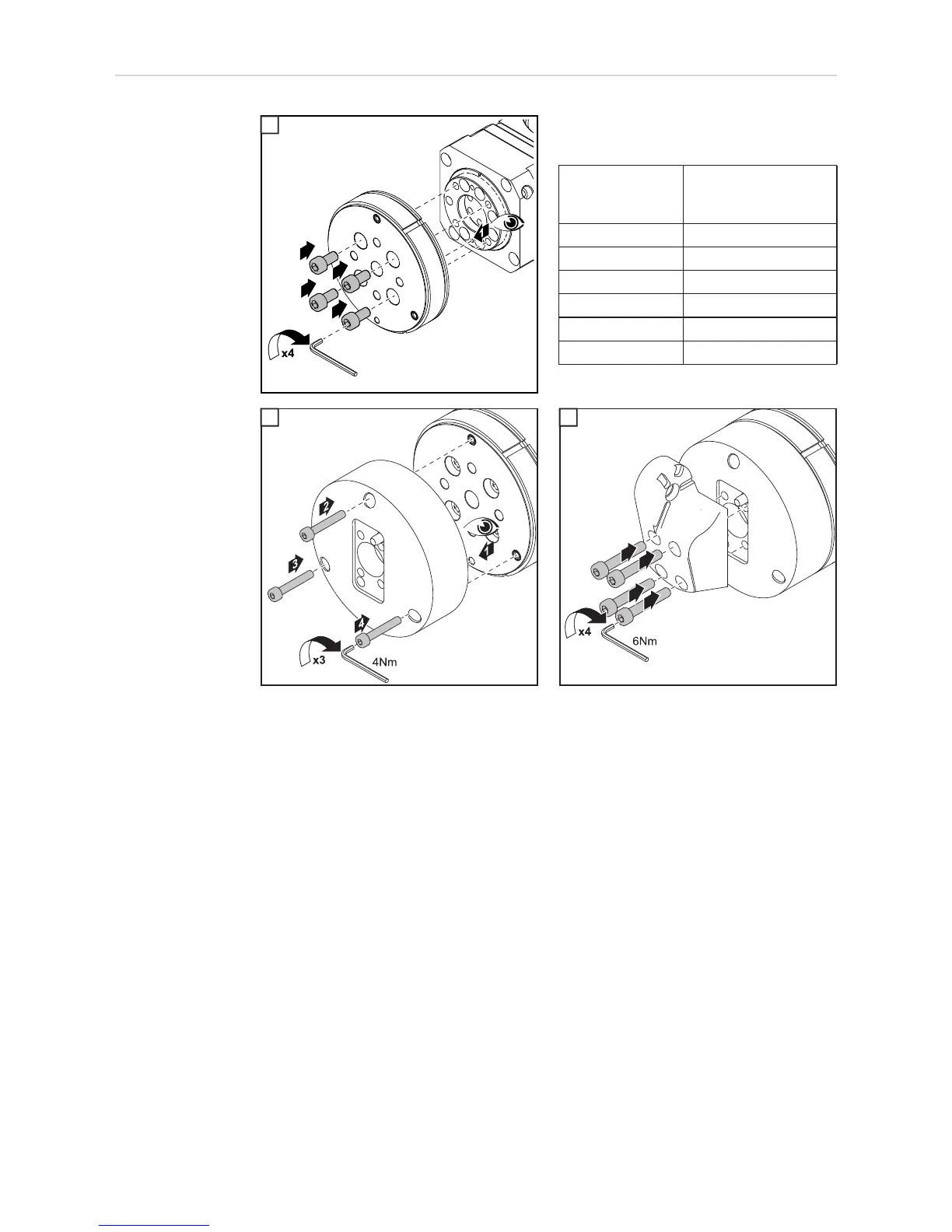

Installing the
CrashBox/i Dum-
my on the robot
1 2
1
Observe the torques when fitting the robot
flange:
Thread dimen-
sion
Max. tightening torque
for screws of strength
class 8.8
M4 3.3 Nm
M5 6.5 Nm
M6 11.3 Nm
M8 27.3 Nm
M10 54 Nm
M12 93 Nm
1
2 3
