81
EN
1 2

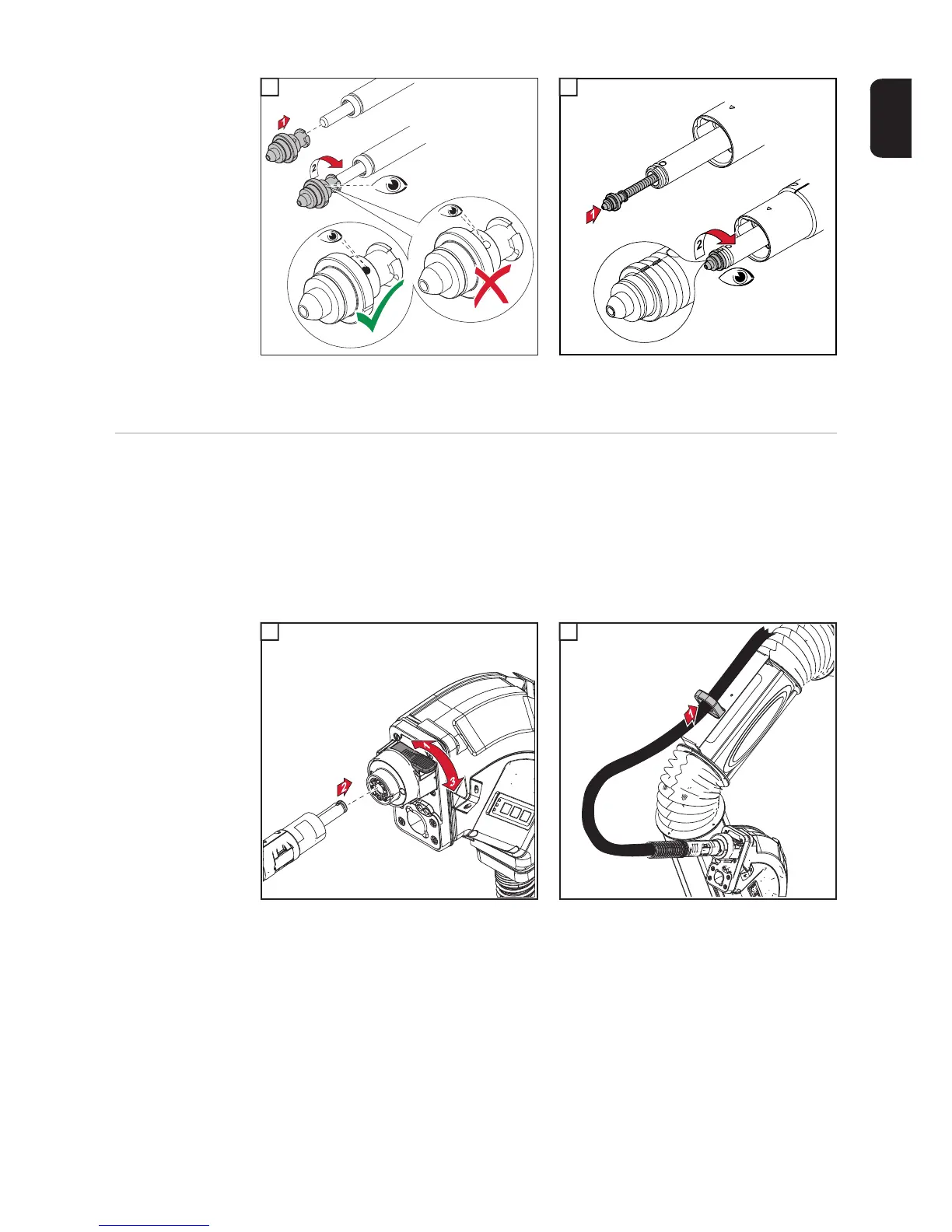

*** Screw the cap onto the inner liner as far as it will go. The inner liner must be visible
through the hole in the cap.
Connecting the
torch hosepack to
the SplitBox SB
60i R
IMPORTANT! Whenever the torch hosepack is fitted or removed, ensure that the coupling
point is clean and dry. Remove any coolant that has escaped from the coupling point.
The connection of the torch hosepack to the SplitBox SB 60i R is illustrated using the right
version of the appliance.
The left version of the appliance should be connected to the torch hosepack the other way
around.
1 2
***
6 7
1
2
