72

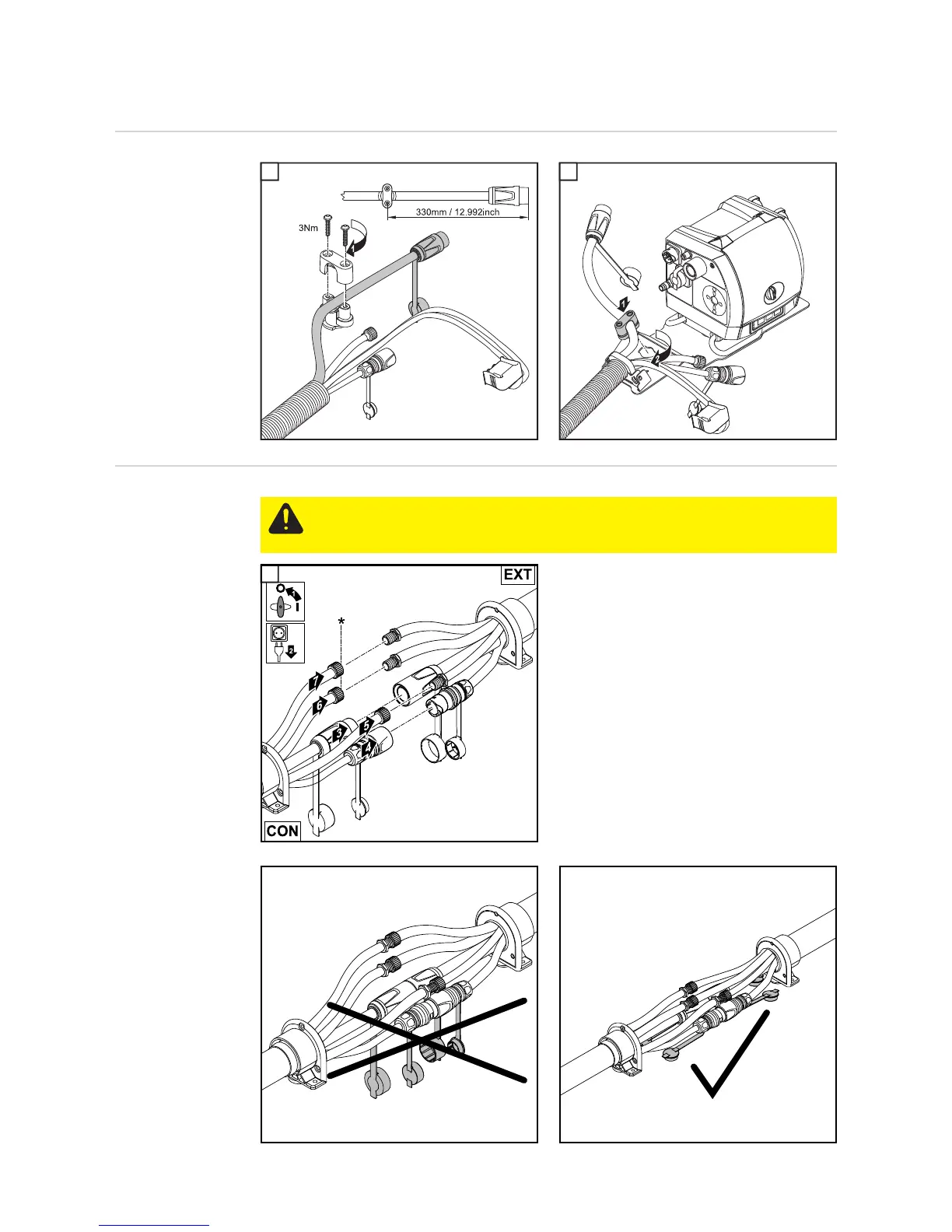

Fitting the interconnecting hosepack
Fitting the stand-
ard interconnect-
ing hosepack to
the robot
1 2
Connecting the
extension hose-
pack
1
* Only on water-cooled hosepack
CON = interconnecting hosepack
EXT = extension hosepack
1
SB 500i
2
CAUTION! Risk of injury and damage from loose connections. All cables, leads
and hosepacks must be properly secured, undamaged, insulated and adequately
dimensioned.
1
