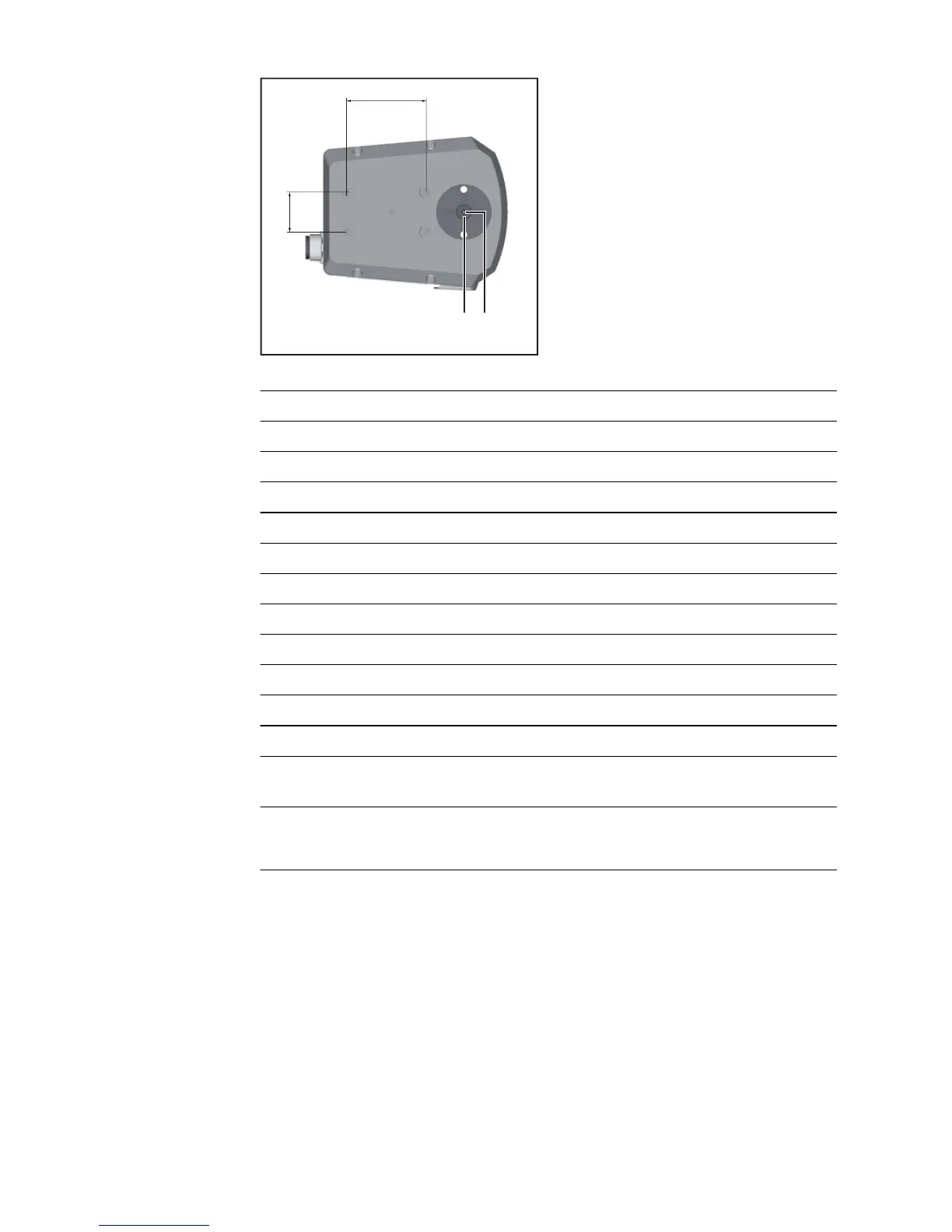

Top/underside

No. Function

(1) Cover

(2) Protective cover for the 4-roller drive

(3) 4-roller drive

(4) Protective cover for the 2-roller drive

(5) 2-roller drive

(6) Opening for optional sash lock

(7) Control panel

(8) SpeedNet connection

(9) Blanking cover for optional component

(10) Blanking cover for optional component

(11) Blanking cover for optional component

(12) M20 thread

for connecting QuickConnect option

(13) Wire infeed/outfeed tube

Wire infeed (underside)

Wire outfeed (top)

(12)(13)

100 mm

50 mm

4 x M5

3.9 in.

2.0 in.

Fronius TPS/i Robotics PushPull CMT User Manual
