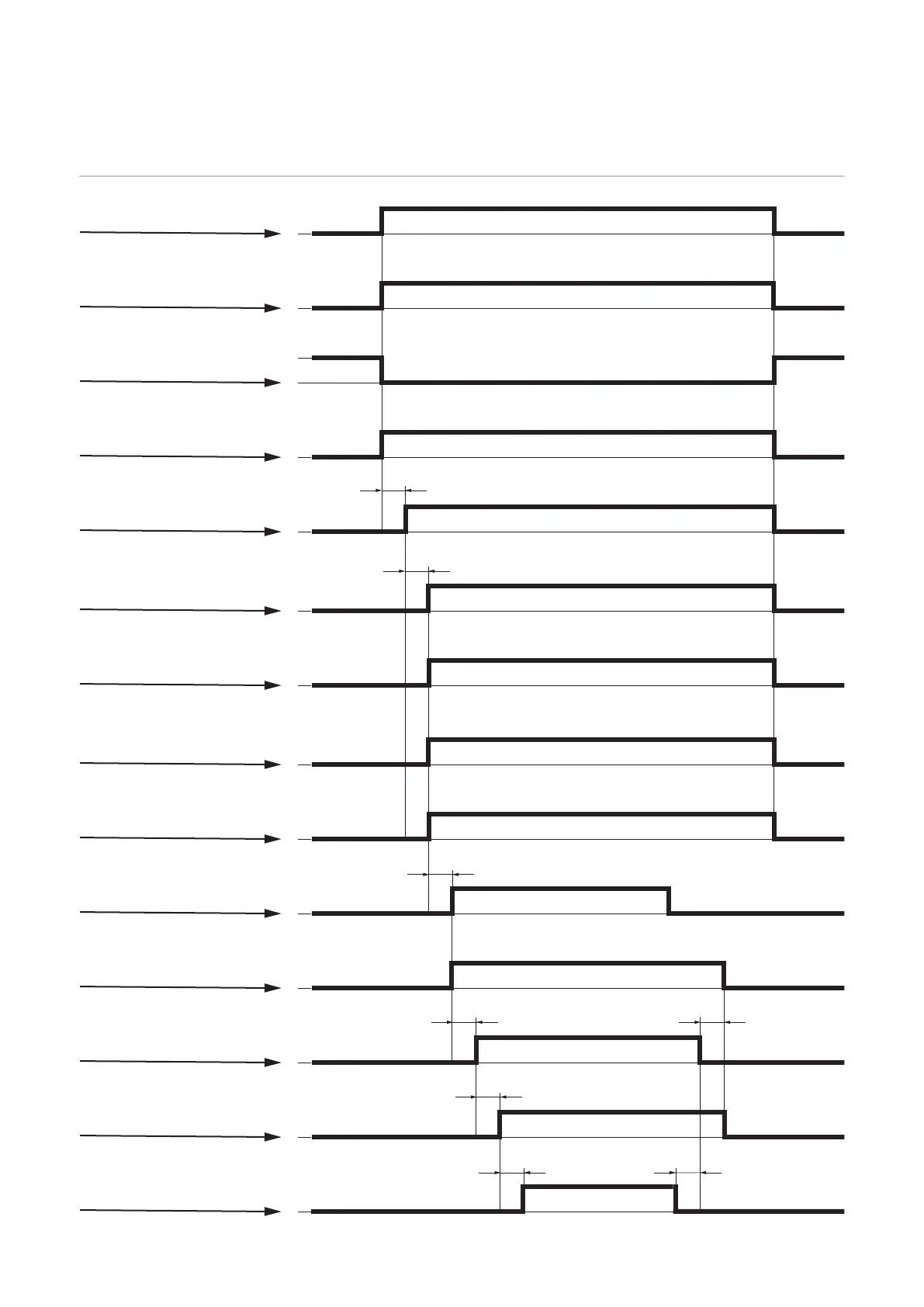

Signal sequence when selected using "Character-
istics Mode" operating mode
Robot ready
Power source ready
Error number
Working mode
(2-step mode characteristics)
(1)
(2)
Welding characteristic
Welding start
Process active
Arc stable
Robot motion release
Main current signal
Wire feed speed
command value
Arclength correction
Pulse-/ dynamic correction
Wire retract correction
(4)
(3)
(7)
(5)
(6)
(8)
