Energy monitor-
ing
Serves to:
- Set the energy set value and the desired limits
- Monitor the energy input per weld seam / job
If a weld seam consists of 2 or more jobs, the energy input of the previously welded job
must be added for the subsequent jobs in the weld sequence.
Example:
- A weld seam consists of 4 jobs, with an energy input of 40 kJ each
- Limit Monitoring ignores the first 3 jobs and only records the last job
- For this reason, an energy set value of at least 160 kJ must be set for the last job (4
x 40 kJ) in order to prevent Limit Monitoring from unintentionally issuing a notifica-
tion

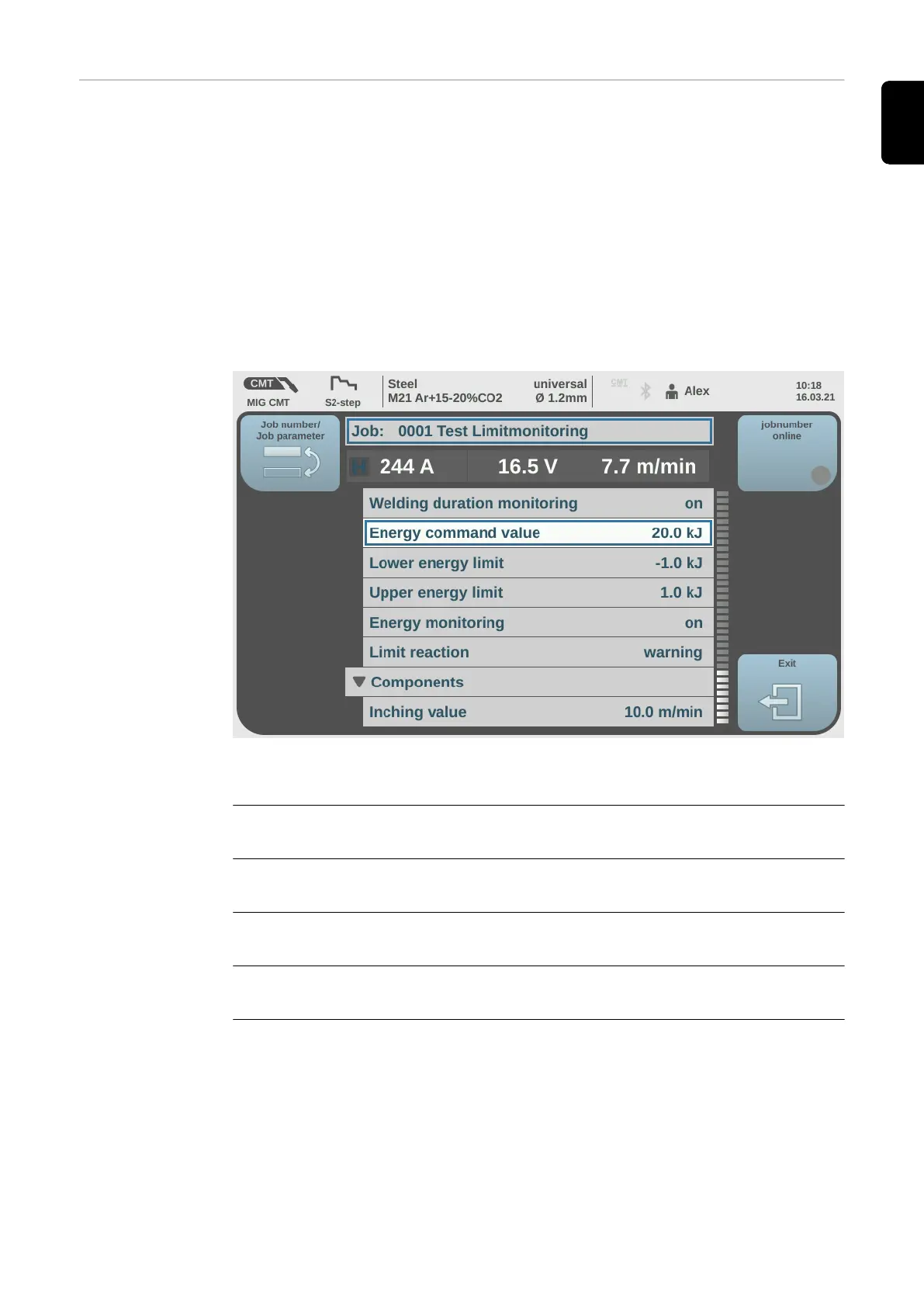

Energy monitoring
Adjustable parameters:
(1) Energy set value:
0 to 9999.9 kJ
(2) Lower energy limit:
-10 to 0 kJ
(3) Upper energy limit:
0 to 10 kJ
(4) Energy monitoring:
On/Off
Possible error messages:
47 | Lower energy limit not reached
48 | Upper energy limit exceeded
71
