Fronius TPS/i - Note on Ignition Timeout (Ignition Timeout)

max.
+24mm
max. CTWD*
or NTWD*
*CTWD: Contact-Tip To Workpiece Distance
*NTWD: Nozzle To Workpiece Distance
Reference-Point

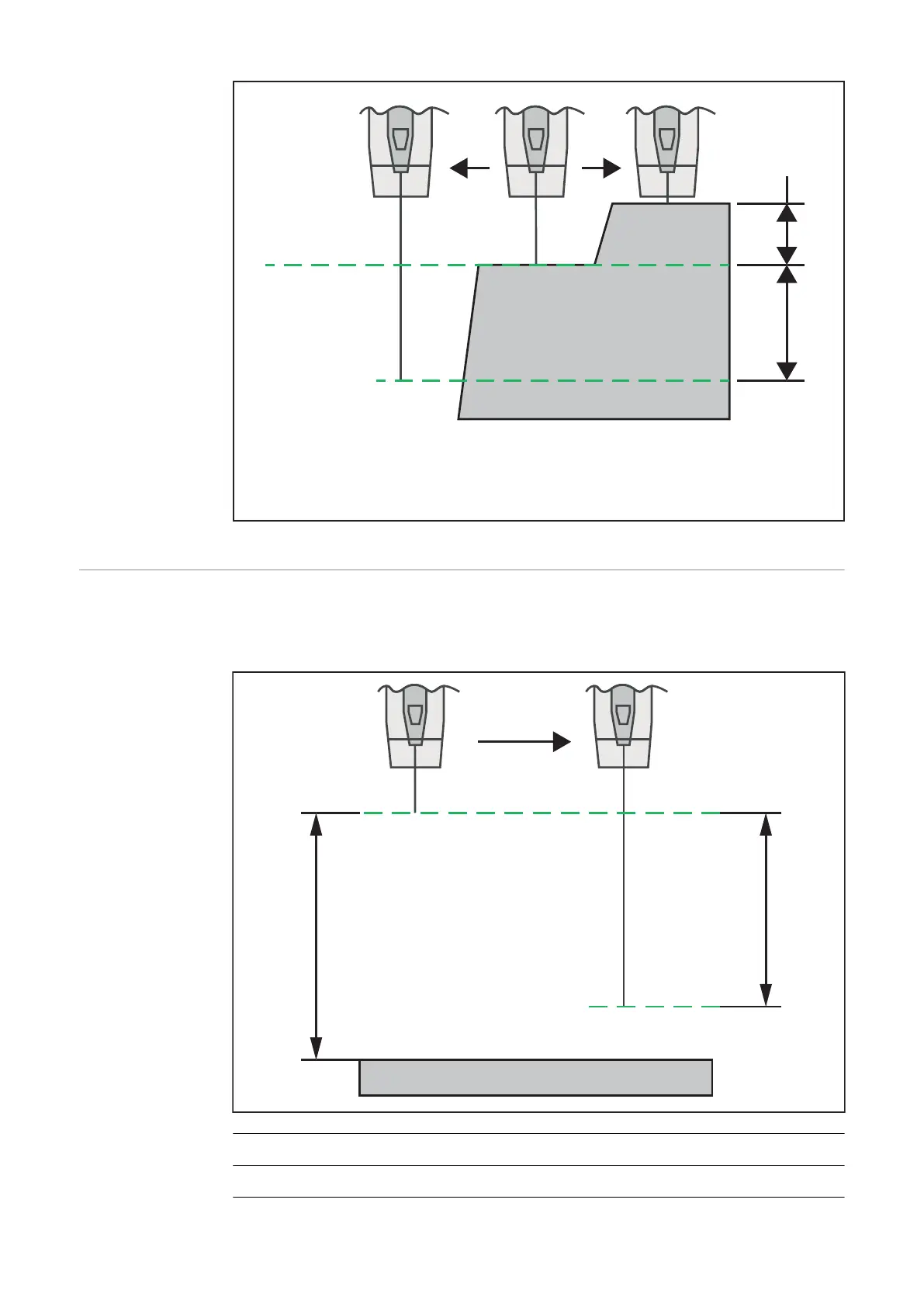

Note on ignition
timeout (Ignition
Timeout)
If the ignition timeout is set to 30 mm, for example, but the end of the wire electrode is
more than 30 mm away from the workpiece, the WireSense function will not start suc-
cessfully because the wire feed is stopped after 30 mm.
WireSense start
(1)
(2)
(1) For example, distance = 40 mm
(2) Ignition timeout setting = after 30 mm, for example
