Limit Monitoring - details on the individual welding
parameters
Voltage monitor-
ing
Serves to:

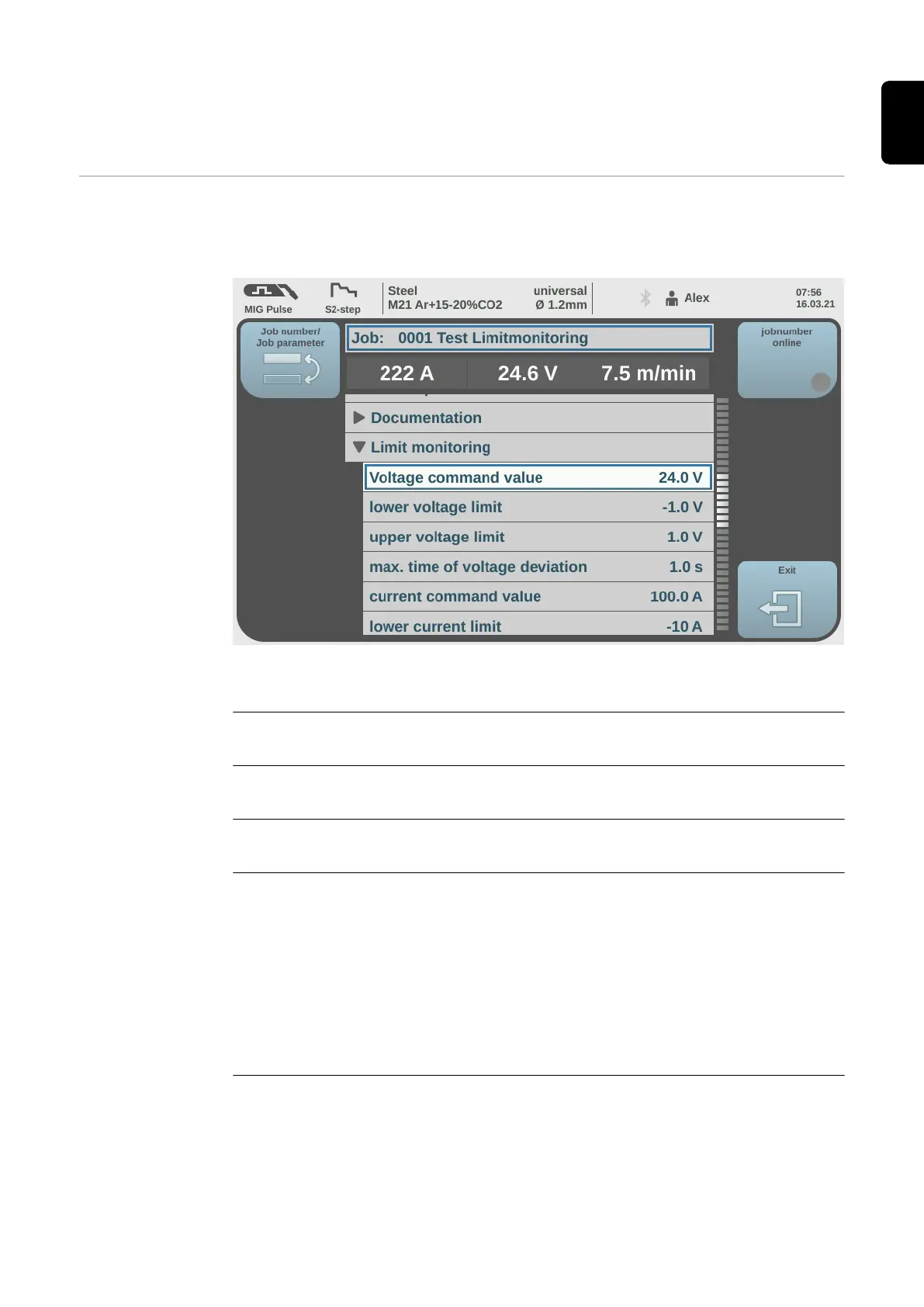

- Set the voltage set value and the desired limits
- Monitor the voltage actual value per weld seam / job
Voltage monitoring
Adjustable parameters:
(1) Voltage set value:
0 to 100 V
(2) Lower voltage limit:
-10 to 0 V
(3) Upper voltage limit:
0 to 10 V
(4) Time limit for the reaction of Limit Monitoring:
Off / 0 to 10 seconds
Explanation for setting from 0 to 10 seconds:
- If, for example, 5 seconds are set, Limit Monitoring will only react after a limit
has been exceeded or undershot continuously for 5 seconds
Explanation for "Off" setting:
- Limit Monitoring is disabled for this welding parameter
- There is no display of limit overruns
Possible error messages during voltage monitoring:
19 | Lower voltage limit undershot
20 | Upper voltage limit exceeded
