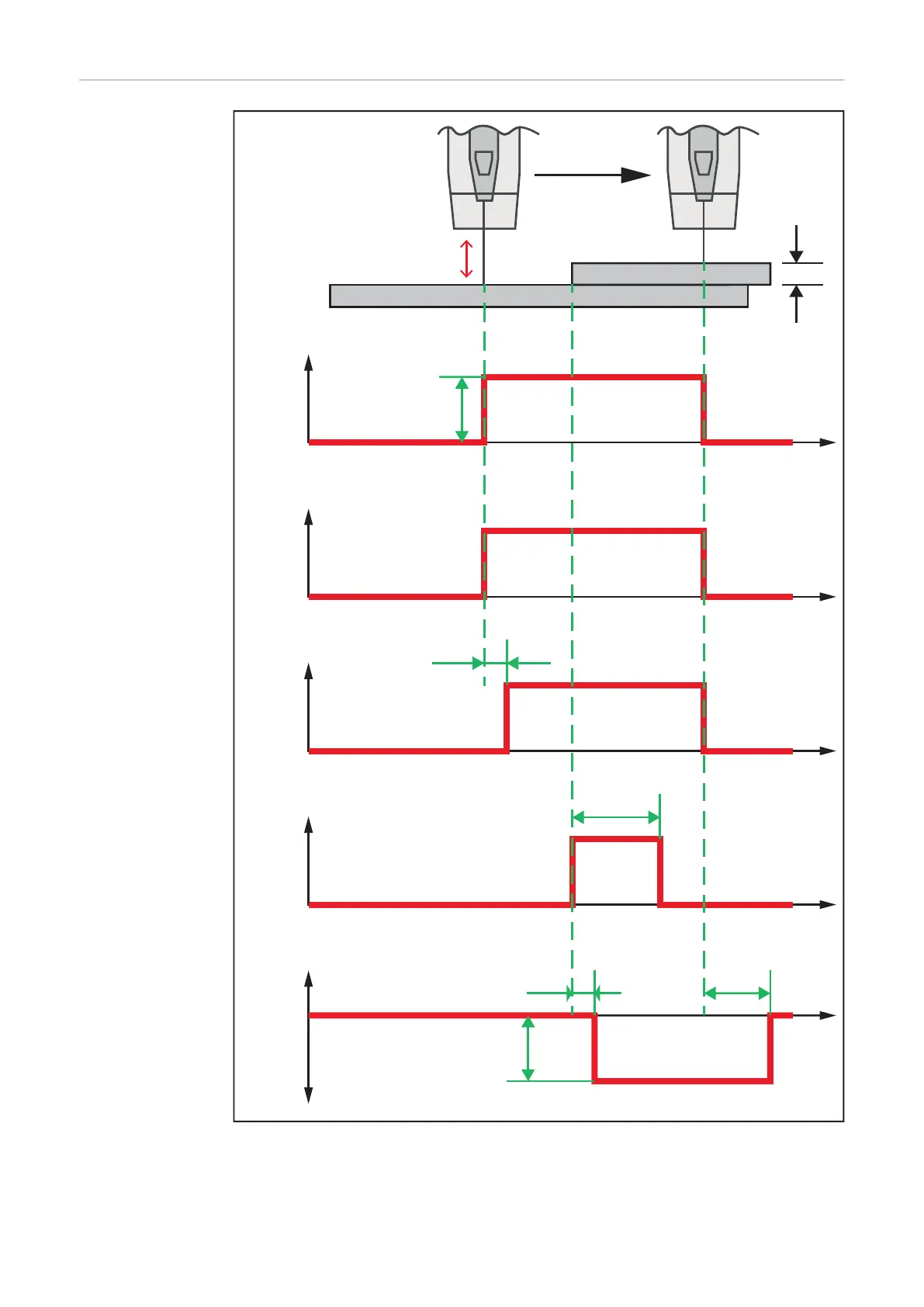

Fronius TPS/i - Signal Curve of Edge Detection Mode on a Level Surface

Signal curve of
Edge Detection
Mode on a level
surface
WireSense Position
(Analog Output)
Touch signal
(Digital Output)
Arc stable
(Digital Output)
WireSense start
(Digital Input)
WireSense
edge detection
(Analog Input)
*
VRobot
h=2,5mm
20 ms
250ms
100ms
h= -2,5mm
t
t
t
t
t
1s
h in mm
(for example 2mm)
54
