Example:
- A weld seam consists of 4 jobs, each with a duration of 4 seconds
- Limit Monitoring ignores the first 3 jobs and only records the last job
- For this reason, a welding time set value of at least 16 seconds must be set for the
last job (4 x 4 seconds) in order to prevent Limit Monitoring from unintentionally issu-
ing a message

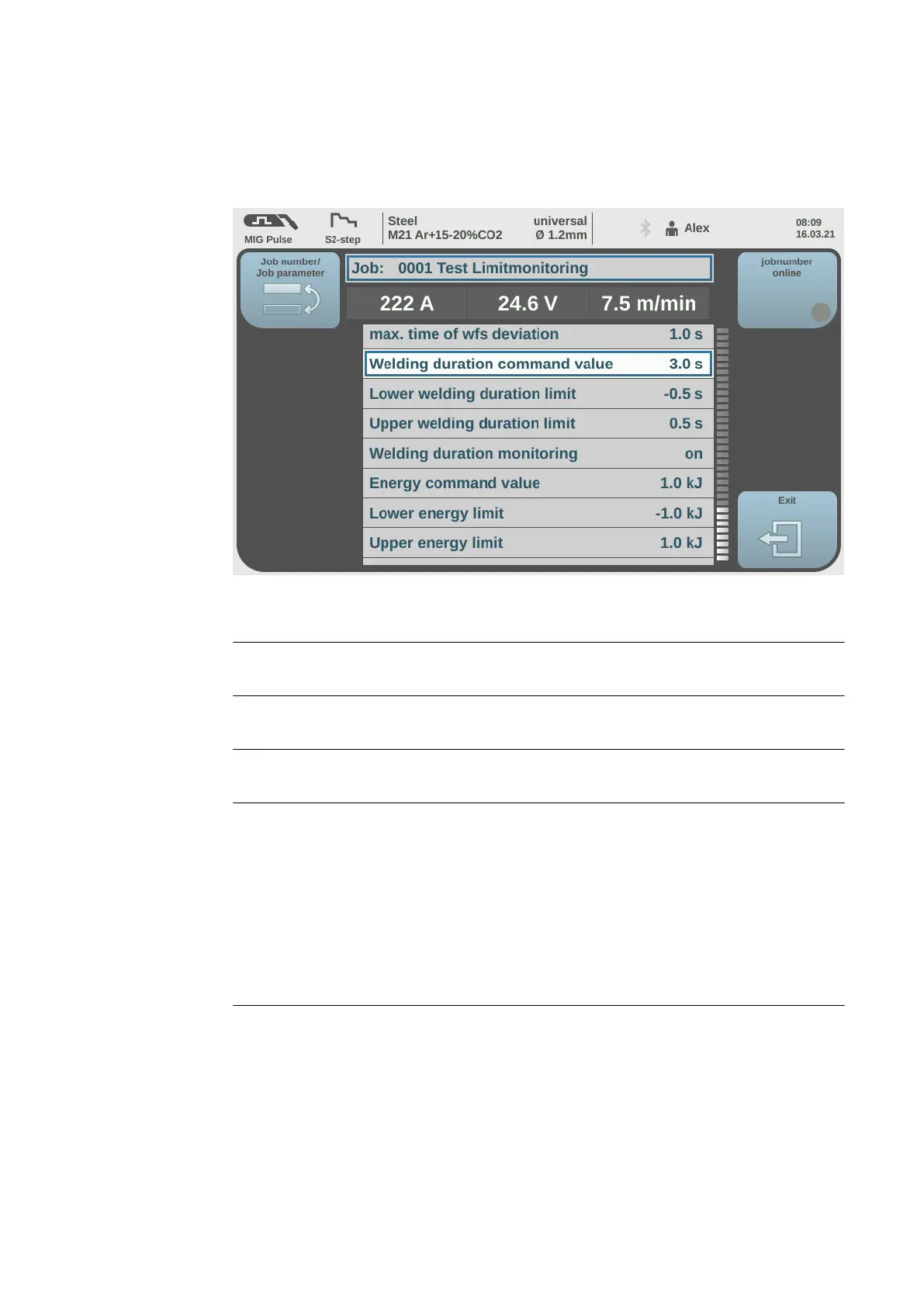

Welding time monitoring
Adjustable parameters:
(1) Welding time set value:
0 to 999.9 seconds
(2) Lower welding time limit:
-50 to 0 seconds
(3) Upper welding time limit:
0 to 50 seconds
(4) Time limit for the reaction of Limit Monitoring:
Off / 0 to 10 seconds
Explanation for setting from 0 to 10 seconds:
- If, for example, 5 seconds are set, Limit Monitoring will only react after a limit
has been exceeded or undershot continuously for 5 seconds
Explanation for "Off" setting:
- Limit Monitoring is disabled for this welding parameter
- There is no display of limit overruns
Possible error messages during welding time monitoring:
50 | Lower welding time limit not reached
51 | Upper welding time limit exceeded
