Reaction when limits are exceeded or undershot = warning:
- The welding parameters affected by exceeding or falling below the limits are marked
in red
Reaction when limits are exceeded or undershot = Warning

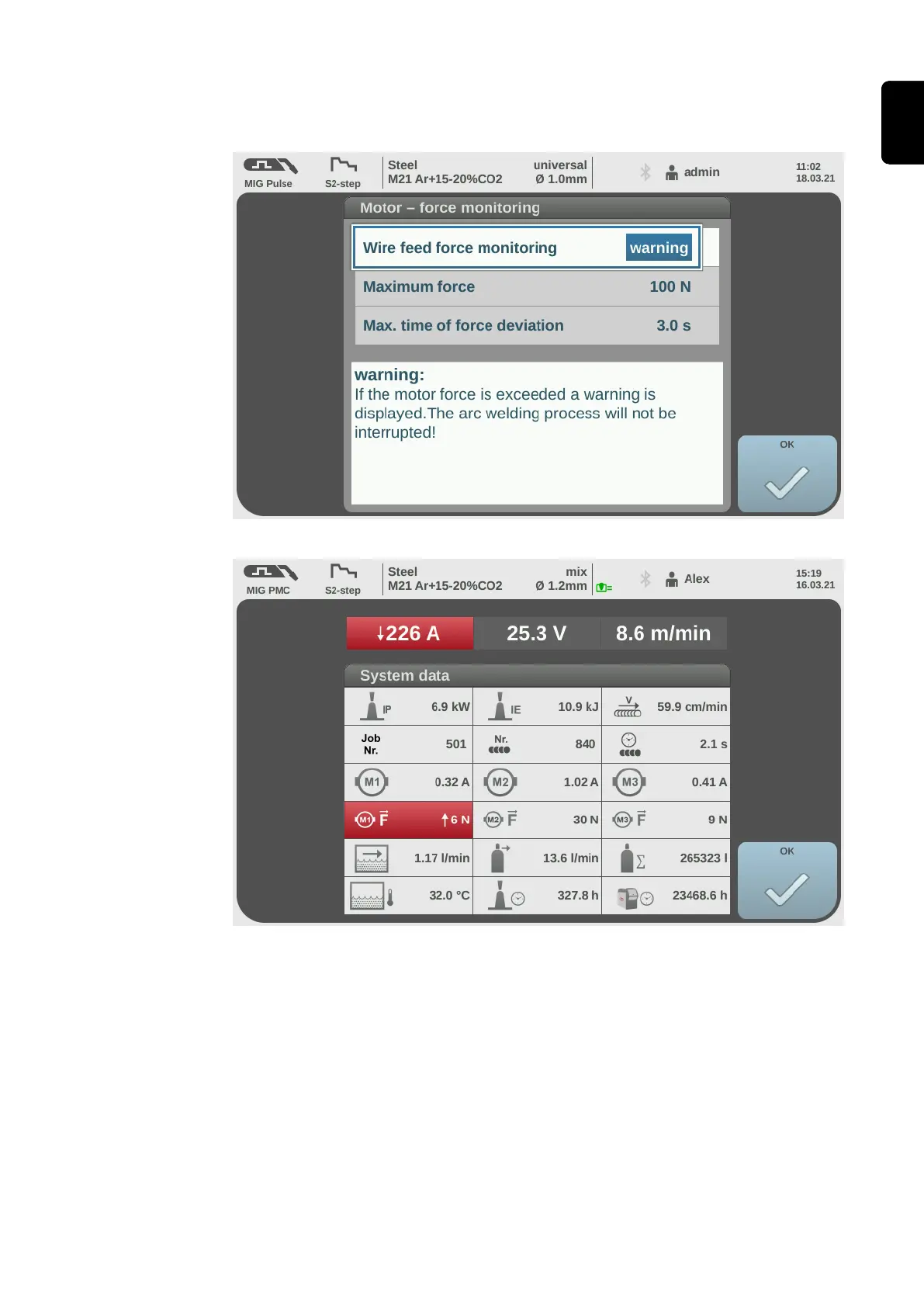

Display of the warning with the system data
Additional information on reactions at the interface to a warning:
- During welding the limit signal (WORD 1 / Byte 2 / Bit 19) reacts directly to exceed-
ing or falling below the limits
- If no overshoot or undershoot of the limits is detected, the Limitsignal Low
remains
- If an overshoot or undershoot of the limits is detected, the Limitsignal changes
to High
- As soon as the welding parameters are within the defined limits again, the Limit-
signal changes back to Low after 1 second
