Fuji Xerox ApeosPort Print C5570

To Next Page

To Previous Page

235

10.2 Installing 2 Tray Module and Tandem Tray Module

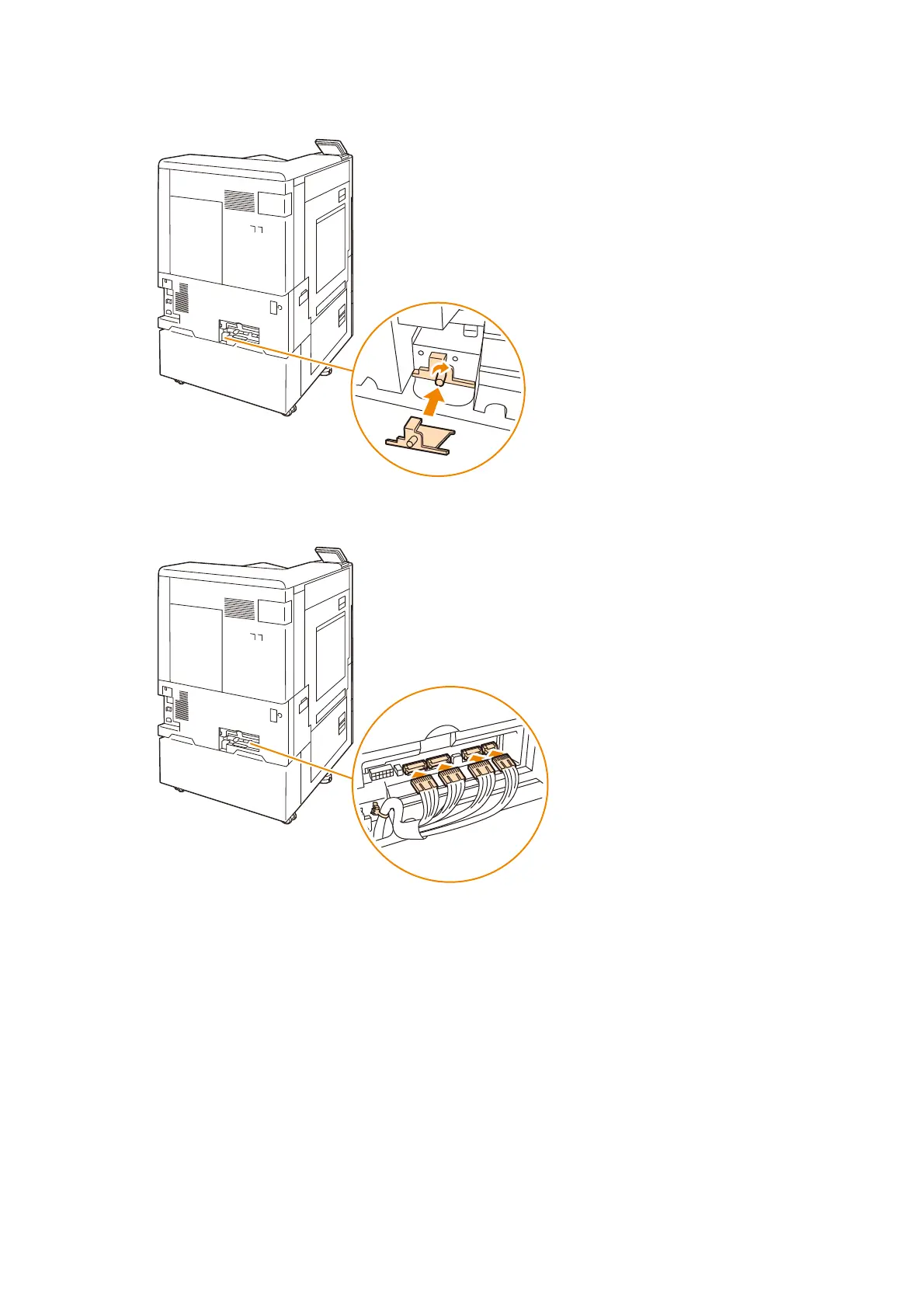

14. Fasten the machine and the 2 Tray Module at the included joint.

15. Connect the connector cable.
