10.5 Installing storage

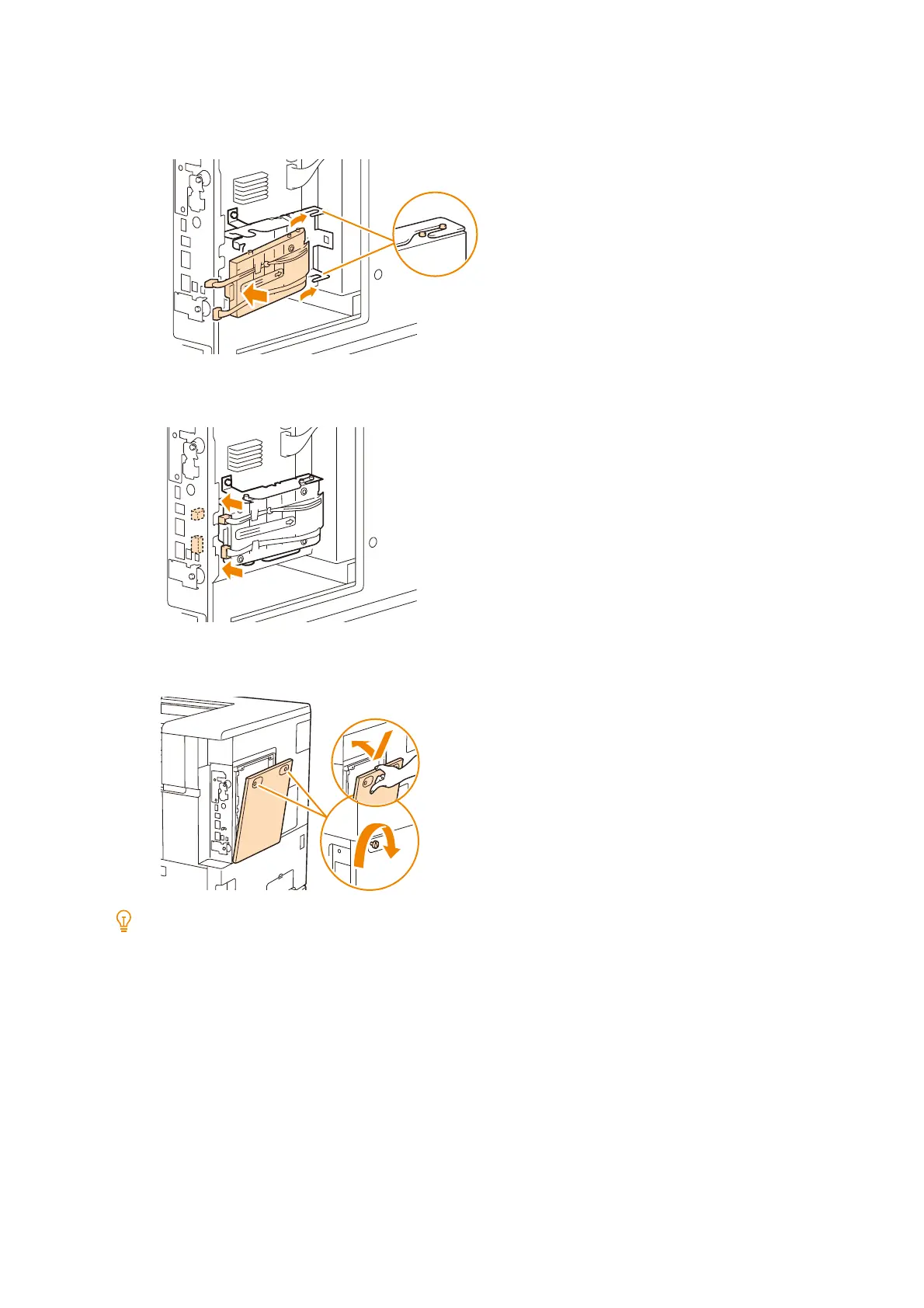

6. Make sure that the protrusions of the storage (optional) fit correctly into the slots of the frame (1), place the
connector cable on the outside, and insert it into the frame on the control board (2).
7. Connect the connector cables (2) of storage (optional) to the connectors on the control board.
8. Return the rear cover and tighten the screws in two locations.
Note

Close the rear cover while pushing it down as shown in (1) in the illustration.
9. Connect the power cord.
(1)
(2)
(1)
(2)
