Function
S.BUS Servo
1
The type and data of the loaded servo are displayed. Since there are two setting items,
change the page as follows.
1
(Writing to servo)

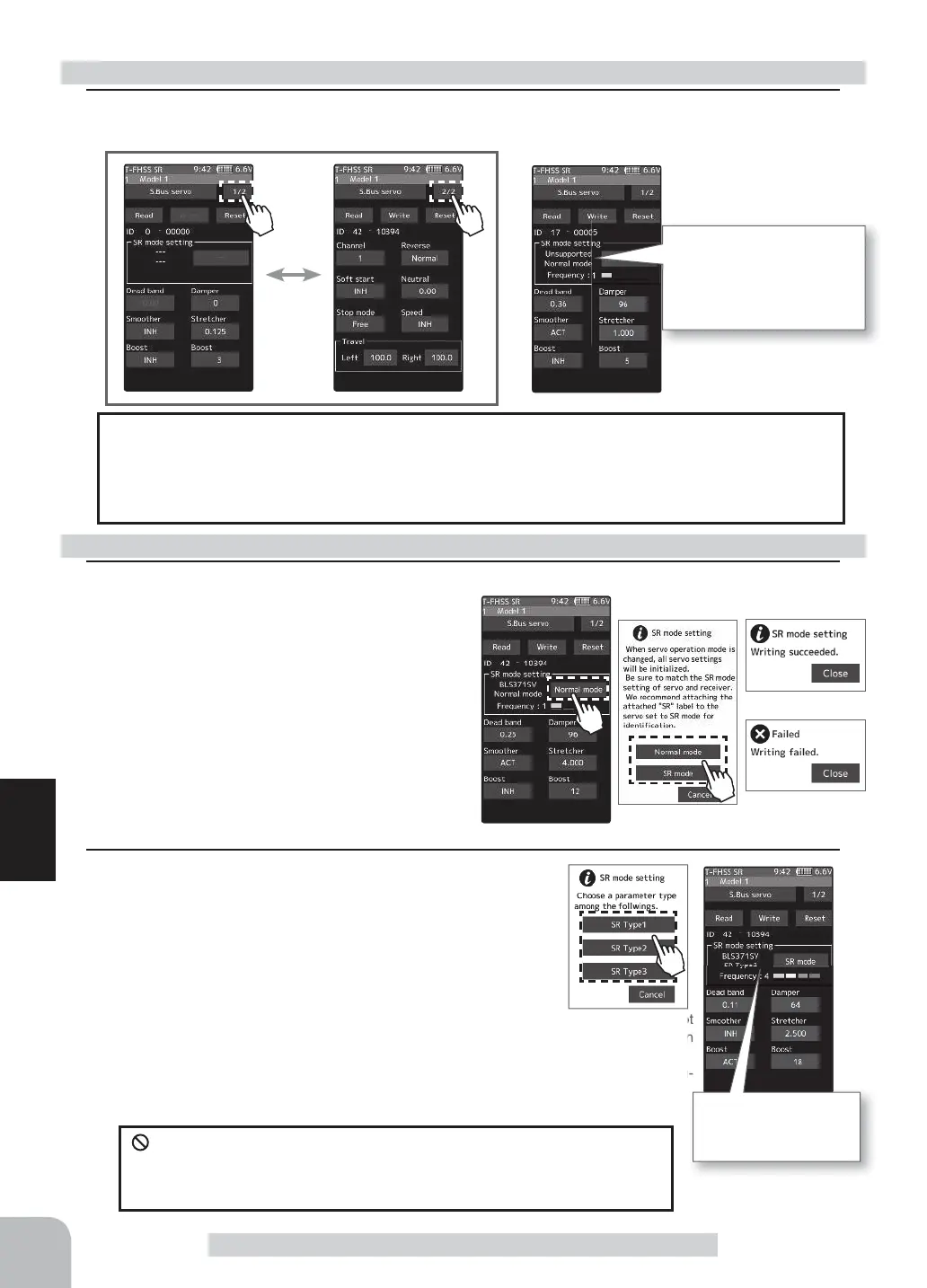

Tap [SR mode] or [Normal mode] of SR mode
setting. A confirmation screen of "Notes on
SR setting" is displayed, so read carefully
and tap [Normal mode] or [SR mode].
- When [Normal mode] is selected, "Writing succeeded"
is displayed on the screen, and the setting data is writ-
ten to the servo.
- If "Failed" is displayed, communication with the servo is
not performed normally. Check the connection between
the T7XC and the servo, and then execute the write
operation again.
2
(When SR mode is selected by writing to servo)
In the confi rmation screen of "Notes on SR setting", tap
[SR mode], the screen for selecting the SR type is dis-
played. Three types with different feeling are prepared.
(Please repeat the test and choose the type. )
- "Writing succeeded" is displayed on the screen and the setting
data is written to the servo. If "Failed" is displayed, communication with the servo is not
performed normally. Check the connection between the T7XC and the servo, and then
execute the [Write] operation again.
- For the servo set to SR mode, affi x the attached SR label so that the mode can be recog-
nized.
Display data list
SR mode setting
When the connected servo
type is not compatible with
the S R m o d e , " U n s u p -
ported Normal mode" is
displayed
- Do not plug in or disconnect servos, or connect other servos while keeping the screen
where data was read by [Read]. Be sure to connect the servo in the state where [Write]
or [Reset] is  nished, or press the HOME button to access the accessory menu screen.
- The loaded data cannot be written to another servo.
o is not
then
x the attached SR label so that the mode can be recog-
The type of servo and
the set SR type are dis-
played.
Do not connect any servos that are on SR mode to a receiver via S.BUS/
S.BUS2 terminal. You cannot use an SR servo in the SBUS/S.BUS2
ports, as they are not compatible with SR mode. The SR servo can be
damaged if it is connected into the S.BUS/S.BUS2 ports.
