F13 16 bits Setpoints Status Register 1
0000 0000 0000 0001 Custom Curve selected (set trip times starting at address 0080H)
0000 0000 0000 0010 Reserved
0000 0000 0000 0100 Reserved
0000 0000 0000 1000 RTD Bias defeated
0000 0000 0001 0000 Start Inhibit Feature enabled
0000 0000 0010 0000 Unbalance Bias defeated
0000 0000 0100 0000 Phase Reversal enabled
0000 0000 1000 0000 Single Shot Restart enabled
0000 0001 0000 0000 G/F CT = xxx:5 (2000:1 if '0')
0000 0010 0000 0000 Reserved
0000 0100 0000 0000 Set to clear RTD last access data
0000 1000 0000 0000 Set to clear commissioning data
0001 0000 0000 0000 No Sensor Alarm defeated
0010 0000 0000 0000 Learned Cool Rate defeated
0100 0000 0000 0000 RTD 10 made ambient sensor
1000 0000 0000 0000 Speed Switch Input defeated
F14 16 bits Setpoints Status Register 2
0000 0000 0000 0001 Special External Reset enabled
0000 0000 0000 0010 Reserved
0000 0000 0000 0100 Reserved
0000 0000 0000 1000 Set to Place 269 in Test Mode
0000 0000 0001 0000 Enable PF Trip/Alarm Block on Start
0000 0000 0010 0000 Reserved
0000 0000 0100 0000 Are there any RTDs connected to the 269 Plus? Yes =1, No = 0
0000 0000 1000 0000 Reserved
0000 0001 0000 0000 Meter on-line
0000 0010 0000 0000 Voltage Phase Reversal enabled
0000 0100 0000 0000 Spare enabled as 52b
0000 1000 0000 0000 Enable Differential Trip
0001 0000 0000 0000 Enable RTD Low Temp Alarm
0010 0000 0000 0000 Enable Stator RTD Voting
0100 0000 0000 0000 Set to 1 if 2-Input Wye, Reset to 0 if Open Delta (DO NOT ALTER)
1000 0000 0000 0000 Clear Pre-Trip Data
F15 16 bits Product Code
0000 0000 0011 0100 269 Plus Motor Management Relay
0000 0000 0001 0010 269 Motor Management Relay

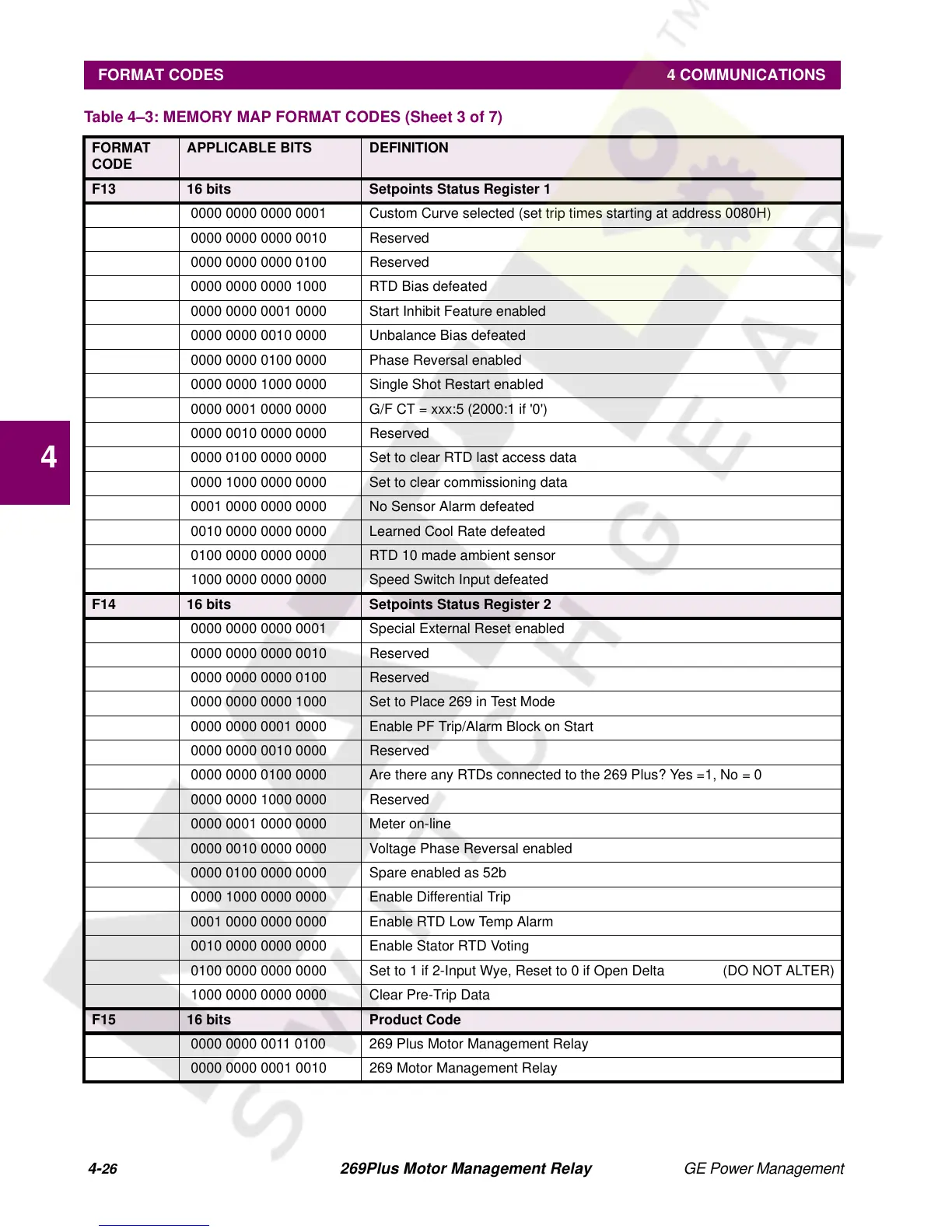

Table 4–3: MEMORY MAP FORMAT CODES (Sheet 3 of 7)
