GE 269Plus

3- 22 269Plus Motor Management Relay GE Power Management
SETPOINTS MODE 3 SETUP AND USE
3
215 Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
or
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
216
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392 °F in steps of 1 °F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
or
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
217
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
or
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
218
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
or
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
219
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
or
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
220
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
or
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18

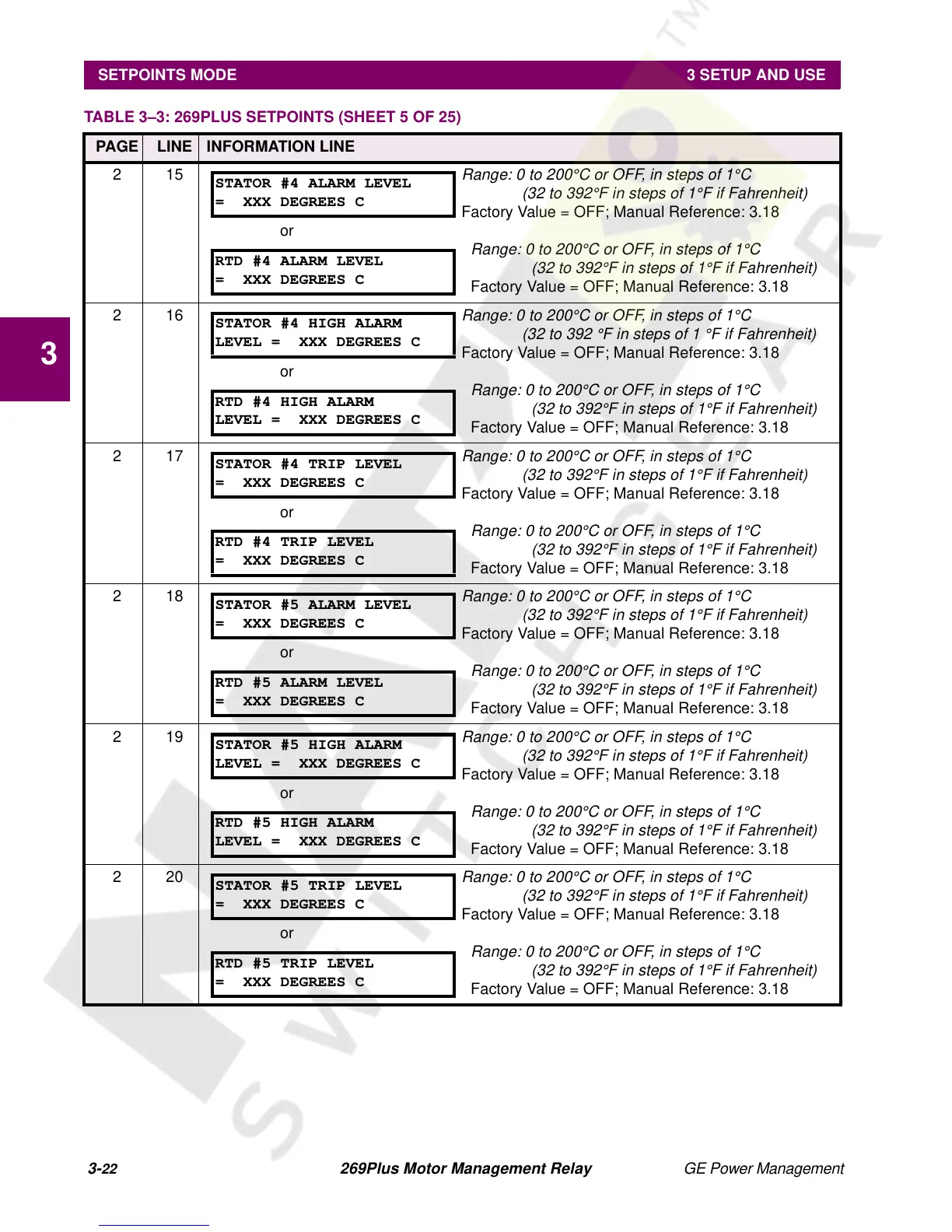

TABLE 3–3: 269PLUS SETPOINTS (SHEET 5 OF 25)
PAGE LINE INFORMATION LINE
STATOR #4 ALARM LEVEL
= XXX DEGREES C
RTD #4 ALARM LEVEL
= XXX DEGREES C
STATOR #4 HIGH ALARM
LEVEL = XXX DEGREES C
RTD #4 HIGH ALARM
LEVEL = XXX DEGREES C
STATOR #4 TRIP LEVEL
= XXX DEGREES C
RTD #4 TRIP LEVEL
= XXX DEGREES C
STATOR #5 ALARM LEVEL
= XXX DEGREES C
RTD #5 ALARM LEVEL
= XXX DEGREES C
STATOR #5 HIGH ALARM
LEVEL = XXX DEGREES C
RTD #5 HIGH ALARM
LEVEL = XXX DEGREES C
STATOR #5 TRIP LEVEL
= XXX DEGREES C
RTD #5 TRIP LEVEL
= XXX DEGREES C
