GE Power Management 269Plus Motor Management Relay 3- 23
3 SETUP AND USE SETPOINTS MODE
3
221 Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
or
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
222
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
or
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
223
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
or
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
224
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.19
225
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.19
226
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.19
227
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.19
228
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.19
229
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.19
230
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.19
231
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.19

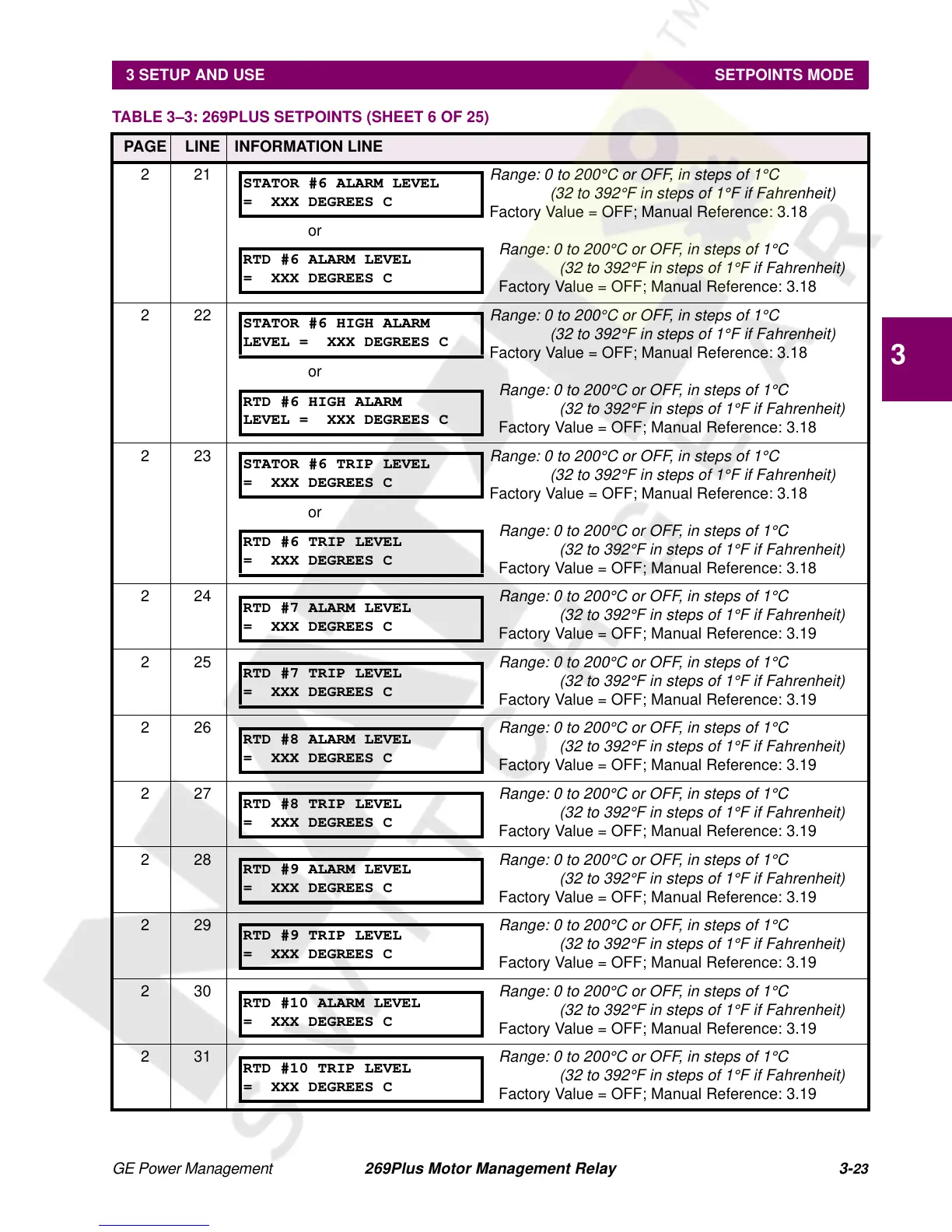

TABLE 3–3: 269PLUS SETPOINTS (SHEET 6 OF 25)
PAGE LINE INFORMATION LINE
STATOR #6 ALARM LEVEL
= XXX DEGREES C
RTD #6 ALARM LEVEL
= XXX DEGREES C
STATOR #6 HIGH ALARM
LEVEL = XXX DEGREES C
RTD #6 HIGH ALARM
LEVEL = XXX DEGREES C
STATOR #6 TRIP LEVEL
= XXX DEGREES C
RTD #6 TRIP LEVEL
= XXX DEGREES C
RTD #7 ALARM LEVEL
= XXX DEGREES C
RTD #7 TRIP LEVEL
= XXX DEGREES C
RTD #8 ALARM LEVEL
= XXX DEGREES C
RTD #8 TRIP LEVEL
= XXX DEGREES C
RTD #9 ALARM LEVEL
= XXX DEGREES C
RTD #9 TRIP LEVEL
= XXX DEGREES C
RTD #10 ALARM LEVEL
= XXX DEGREES C
RTD #10 TRIP LEVEL
= XXX DEGREES C
