GE 269Plus

GE Power Management 269Plus Motor Management Relay 3- 25
3 SETUP AND USE SETPOINTS MODE
3
313 Range: 1 to 2000 sec., step 1
Manual Reference: 3.20
This line is not seen when using a standard curve
314
Range: 1 to 2000 sec., step 1
Manual Reference: 3.20
This line is not seen when using a standard curve
315
Range: 1 to 2000 sec., step 1
Manual Reference: 3.20
This line is not seen when using a standard curve
316
Range: 1 to 2000 sec., step 1
Manual Reference: 3.20
This line is not seen when using a standard curve
317
Range: 1 to 2000 sec., step 1
Manual Reference: 3.20
This line is not seen when using a standard curve
318
Range: 1 to 2000 sec., step 1
Manual Reference: 3.20
This line is not seen when using a standard curve
319
Range: 1 to 2000 sec., step 1
Manual Reference: 3.20
This line is not seen when using a standard curve
320
Range: 1 to 2000 sec., step 1
Manual Reference: 3.20
This line is not seen when using a standard curve
321
Range: 1 to 2000 sec., step 1
Manual Reference: 3.20
This line is not seen when using a standard curve
322
Range: 1 to 2000 sec., step 1
Manual Reference: 3.20
This line is not seen when using a standard curve
323
Range: 1 to 1000 sec., step 1
Manual Reference: 3.20
This line is not seen when using a standard curve
324
Range: 1 to 2000 sec., step 1
Manual Reference: 3.20
This line is not seen when using a standard curve
325
Range: 1 to 2000 sec., step 1
Manual Reference: 3.20
This line is not seen when using a standard curve
326

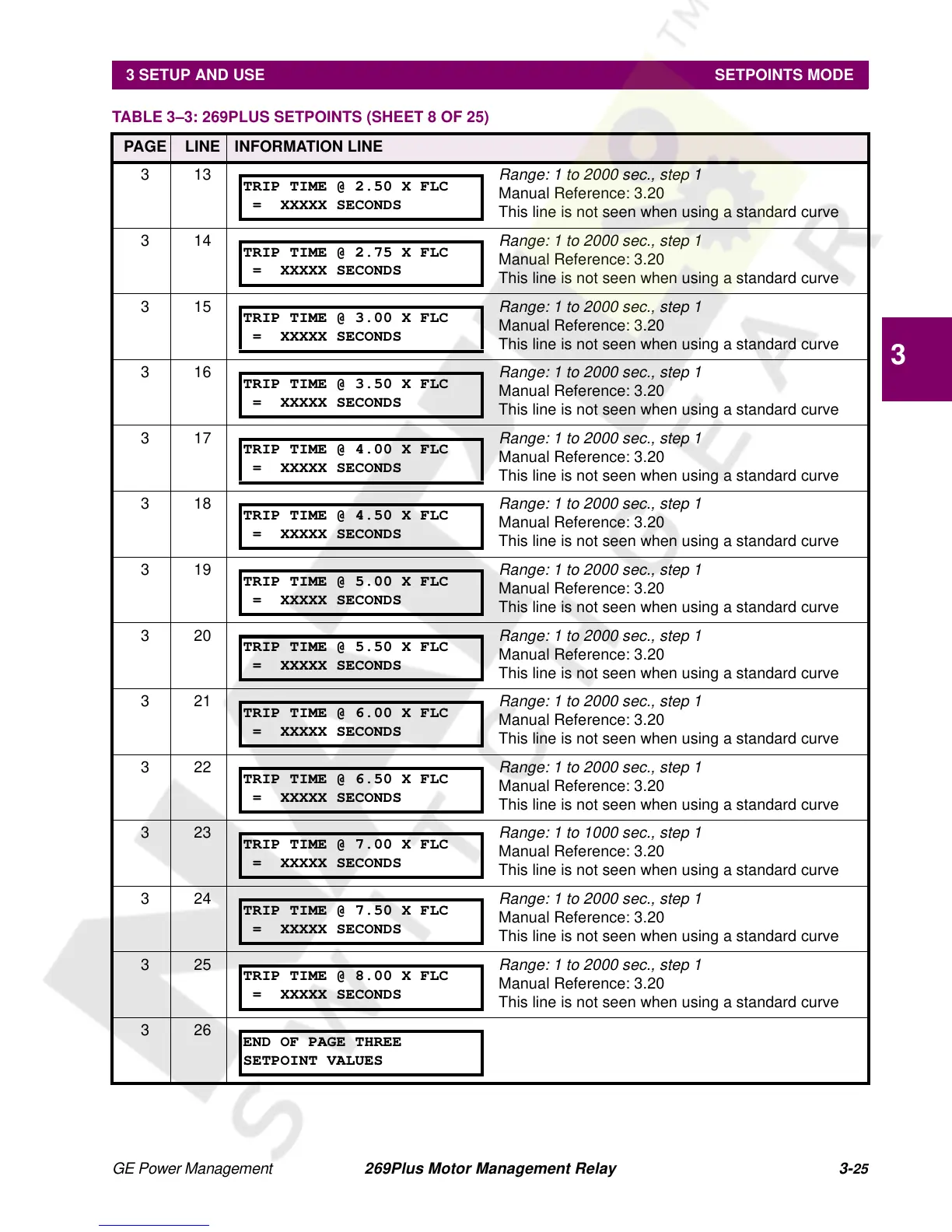

TABLE 3–3: 269PLUS SETPOINTS (SHEET 8 OF 25)
PAGE LINE INFORMATION LINE
TRIP TIME @ 2.50 X FLC
= XXXXX SECONDS
TRIP TIME @ 2.75 X FLC
= XXXXX SECONDS
TRIP TIME @ 3.00 X FLC
= XXXXX SECONDS
TRIP TIME @ 3.50 X FLC
= XXXXX SECONDS
TRIP TIME @ 4.00 X FLC
= XXXXX SECONDS
TRIP TIME @ 4.50 X FLC
= XXXXX SECONDS
TRIP TIME @ 5.00 X FLC
= XXXXX SECONDS
TRIP TIME @ 5.50 X FLC
= XXXXX SECONDS
TRIP TIME @ 6.00 X FLC
= XXXXX SECONDS
TRIP TIME @ 6.50 X FLC
= XXXXX SECONDS
TRIP TIME @ 7.00 X FLC
= XXXXX SECONDS
TRIP TIME @ 7.50 X FLC
= XXXXX SECONDS
TRIP TIME @ 8.00 X FLC
= XXXXX SECONDS
END OF PAGE THREE
SETPOINT VALUES
