269Plus Motor Management Relay GE Power Management
SETPOINTS MODE 3 SETUP AND USE
3
SETPOINTS PAGE 4: RELAY CONFIGURATION
41
This page assigns trip and alarm functions to the output relays. Each trip/alarm function is
assigned separately to the appropriate relay or to "NO" relay. If an alarm is assigned to no
relay, it can still become active (i.e. cause the appropriate alarm message to be displayed)
but no output relay activation occurs. Possible assignments are shown below.
Only one TRIP may occur at any time. TRIP functions/inhibits must therefore be used to trip
or lockout the motor. Once a trip or inhibit function is active, no other trip or inhibit may occur.
42

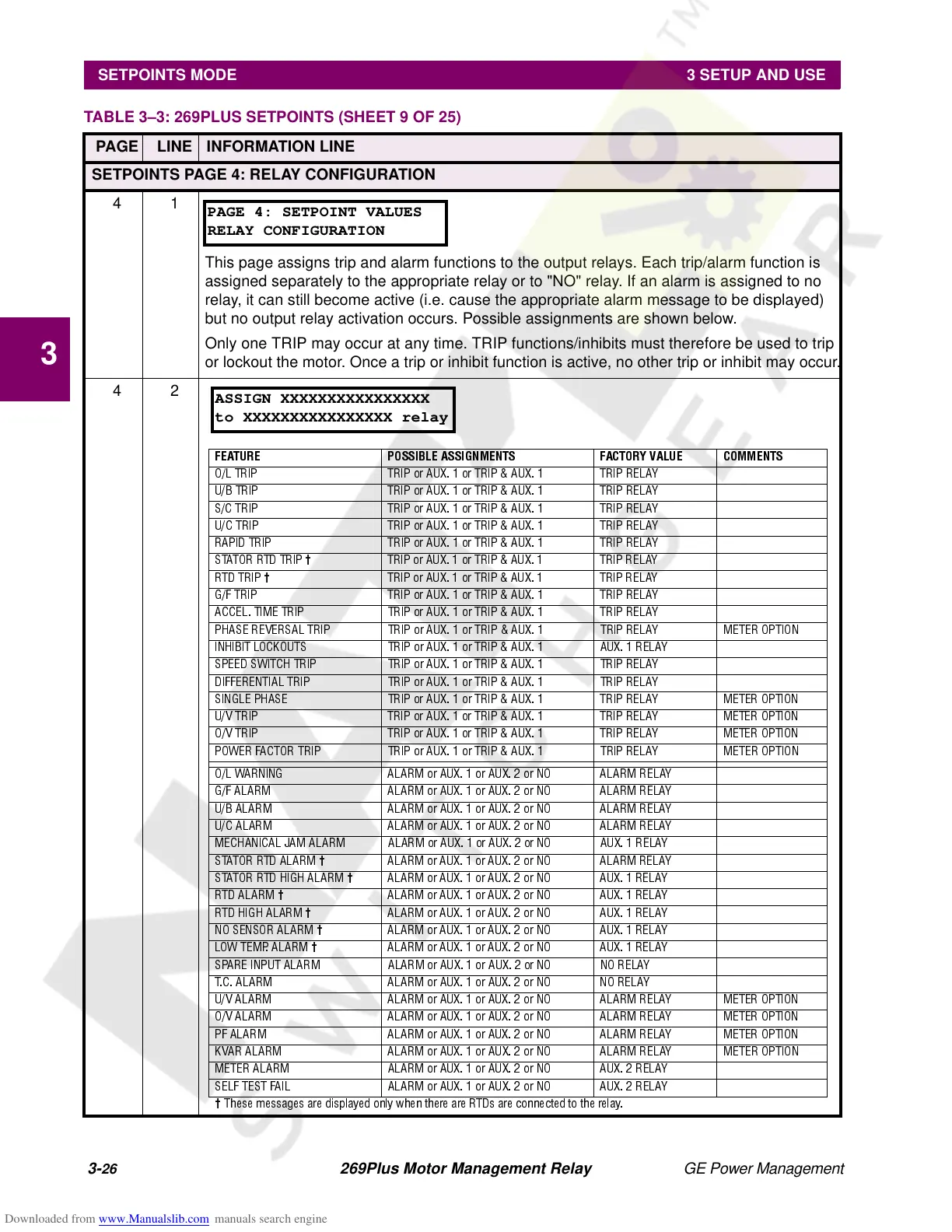

TABLE 3–3: 269PLUS SETPOINTS (SHEET 9 OF 25)
PAGE LINE INFORMATION LINE
PAGE 4: SETPOINT VALUES
RELAY CONFIGURATION
ASSIGN XXXXXXXXXXXXXXXX
to XXXXXXXXXXXXXXXX relay
FEATURE POSSIBLE ASSIGNMENTS FACTORY VALUE COMMENTS
O/L TRIP TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY
U/B TRIP TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY
S/C TRIP TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY
U/C TRIP TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY
RAPID TRIP TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY
STATOR RTD TRIP
†
TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY
RTD TRIP
†
TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY
G/F TRIP TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY
ACCEL. TIME TRIP TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY
PHASE REVERSAL TRIP TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY METER OPTION
INHIBIT LOCKOUTS TRIP or AUX. 1 or TRIP & AUX. 1 AUX. 1 RELAY
SPEED SWITCH TRIP TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY
DIFFERENTIAL TRIP TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY
SINGLE PHASE TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY METER OPTION
U/V TRIP TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY METER OPTION
O/V TRIP TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY METER OPTION
POWER FACTOR TRIP TRIP or AUX. 1 or TRIP & AUX. 1 TRIP RELAY METER OPTION
O/L WARNING ALARM or AUX. 1 or AUX. 2 or NO ALARM RELAY
G/F ALARM ALARM or AUX. 1 or AUX. 2 or NO ALARM RELAY
U/B ALARM ALARM or AUX. 1 or AUX. 2 or NO ALARM RELAY
U/C ALARM ALARM or AUX. 1 or AUX. 2 or NO ALARM RELAY
MECHANICAL JAM ALARM ALARM or AUX. 1 or AUX. 2 or NO AUX. 1 RELAY
STATOR RTD ALARM
†
ALARM or AUX. 1 or AUX. 2 or NO ALARM RELAY
STATOR RTD HIGH ALARM
†
ALARM or AUX. 1 or AUX. 2 or NO AUX. 1 RELAY
RTD ALARM
†
ALARM or AUX. 1 or AUX. 2 or NO AUX. 1 RELAY
RTD HIGH ALARM
†
ALARM or AUX. 1 or AUX. 2 or NO AUX. 1 RELAY
NO SENSOR ALARM
†
ALARM or AUX. 1 or AUX. 2 or NO AUX. 1 RELAY
LOW TEMP. ALARM
†
ALARM or AUX. 1 or AUX. 2 or NO AUX. 1 RELAY
SPARE INPUT ALARM ALARM or AUX. 1 or AUX. 2 or NO NO RELAY
T.C. ALARM ALARM or AUX. 1 or AUX. 2 or NO NO RELAY
U/V ALARM ALARM or AUX. 1 or AUX. 2 or NO ALARM RELAY METER OPTION
O/V ALARM ALARM or AUX. 1 or AUX. 2 or NO ALARM RELAY METER OPTION
PF ALARM ALARM or AUX. 1 or AUX. 2 or NO ALARM RELAY METER OPTION
KVAR ALARM ALARM or AUX. 1 or AUX. 2 or NO ALARM RELAY METER OPTION
METER ALARM ALARM or AUX. 1 or AUX. 2 or NO AUX. 2 RELAY
SELF TEST FAIL ALARM or AUX. 1 or AUX. 2 or NO AUX. 2 RELAY
†
These messages are displayed only when there are RTDs are connected to the relay.
