SETPOINTS MODE 3 SETUP AND USE
3
525
This setpoint is used to enable or disable the start inhibit feature.
This setpoint should not be changed until a reasonable value has been obtained for the
LEARNED START CAPACITY REQUIRED (Actual Values page 6)
Range: YES, NO.
Factory Value = NO
526
This line is only seen when the start inhibit feature is enabled.
The LEARNED START THERMAL CAPACITY actual value is obtained from this setpoint. This is
done after the motor is started and then stopped. The relay updated the LEARNED START
THERMAL CAPACITY with this setpoint value and uses it in the calculation of any lockout time
required for a start inhibit (see Section 3.22: THERMAL MEMORY on page 3–59 for details).
Range: 10 to 80% in steps of 1%.
Factory Value = 40%.
527
This setpoint is used to enable or disable the special external reset feature described in
Section 3.15: RAPID TRIP / MECHANICAL JAM SETPOINTS on page 3–52.
Range: YES, NO.
Factory Value = NO.
528
This values sets the output relay latch attributes. A latched output relay must be manually
reset. An unlatched relay is automatically reset when the condition causing the relay
activation goes away. This setpoint allows alarm functions to be manually or automatically
reset. The Immediate O/L Alarm function is automatically reset regardless of the Latchcode.
Trip functions must always be manually reset regardless of the Latchcode
value chosen here.
Range: 1 to 7 step 1 (see table below)
latched = manual reset; unlatched = automatic reset)
Factory Value = 1

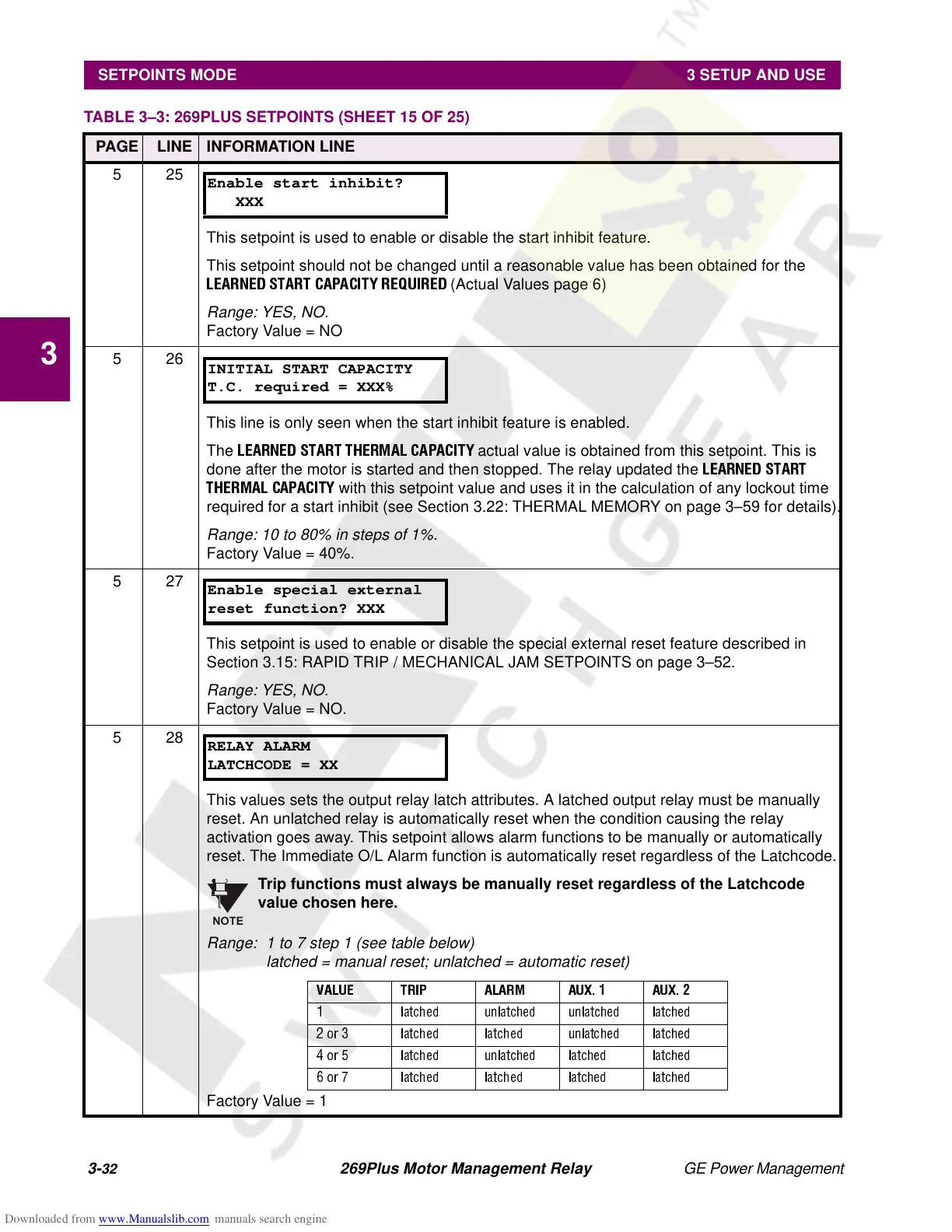

TABLE 3–3: 269PLUS SETPOINTS (SHEET 15 OF 25)
PAGE LINE INFORMATION LINE
Enable start inhibit?
XXX
INITIAL START CAPACITY
T.C. required = XXX%
Enable special external
reset function? XXX
RELAY ALARM
LATCHCODE = XX
NOTE
VALUE TRIP ALARM AUX. 1 AUX. 2
1 latched unlatched unlatched latched
2 or 3 latched latched unlatched latched
4 or 5 latched unlatched latched latched
6 or 7 latched latched latched latched
