SETPOINTS MODE 3 SETUP AND USE
3
SETPOINTS PAGE 6: GE POWER MANAGEMENT SERVICE CODES
61
This page is used for 269Plus relay testing both in the field and at the GE Power
Management. The first five lines of this page are available to the user for testing the relay
once it is installed. The other lines in this page are only accessible to GE Power
Management service personnel by entering an access code.
62
All statistical values in Actual Values page 4 and all learned parameters in Actual Values
page 6 are not updated when this setpoint is set to YES ; i.e. as long as the relay remains in
test mode. Normal updating of these Actual Values resumes once the 269Plus is placed in
normal running mode by changing this setpoint to NO .
Range: YES, NO
Factory Value = NO
63
This line tests the operation of the output relay contacts and any connected switchgear. This
can only be done when the motor is stopped and not tripped. With the access terminals
shorted, pressing the [VALUE s]or[VALUEt] keys, followed by the [STORE] key, causes
different output relays to change state:
Range: NO (no output relays activated), TRIP (Trip relay activated)
ALARM (Alarm relay activated), AUX.1 (Aux. 1 relay activated)
AUX.2 (Aux. 2 relay activated), ALL (All output relays activated)
64
This line forces the relay to read a single RTD. The RTD number is chosen by pressing the
[VALUE s]or[VALUEt] keys.
Range: 1 to 10 in steps of 1 (RTD number to be read continuously)
This message is not displayed if the answer to the question ARE THERE ANY RTDS CONNECTED?
is NO (see Setpoints page 2, line 3).
65
This line is used to force the analog current output of the 269 Plus relay to a certain value to
test the relay and any associated meters.
Range: NORMAL (unchanged), ZERO (forced to zero), MID (forced to middle of scale)
FULL (forced to full scale output)

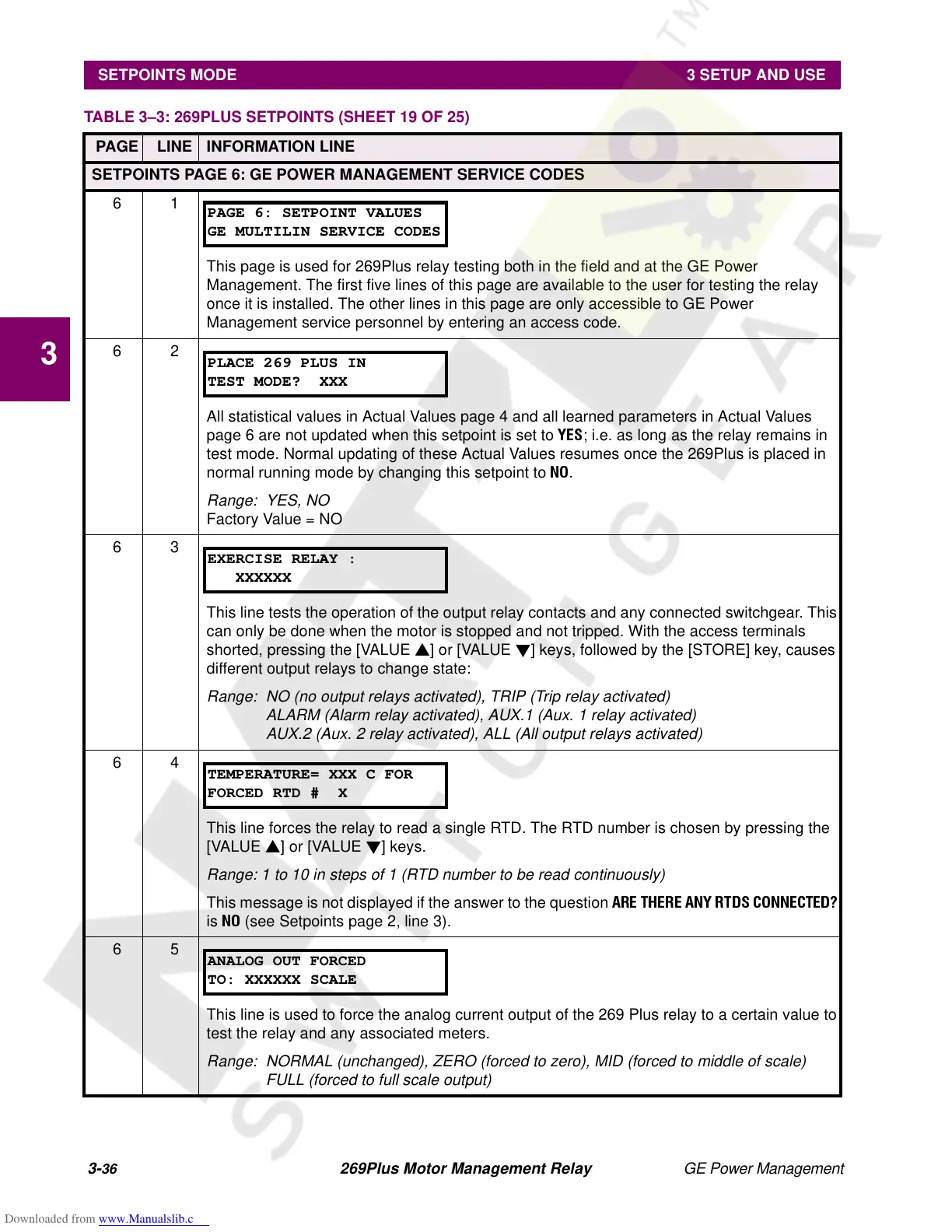

TABLE 3–3: 269PLUS SETPOINTS (SHEET 19 OF 25)
PAGE LINE INFORMATION LINE
PAGE 6: SETPOINT VALUES
GE MULTILIN SERVICE CODES
PLACE 269 PLUS IN
TEST MODE? XXX
EXERCISE RELAY :
XXXXXX
TEMPERATURE= XXX C FOR
FORCED RTD # X
ANALOG OUT FORCED
TO: XXXXXX SCALE
