Sensor control

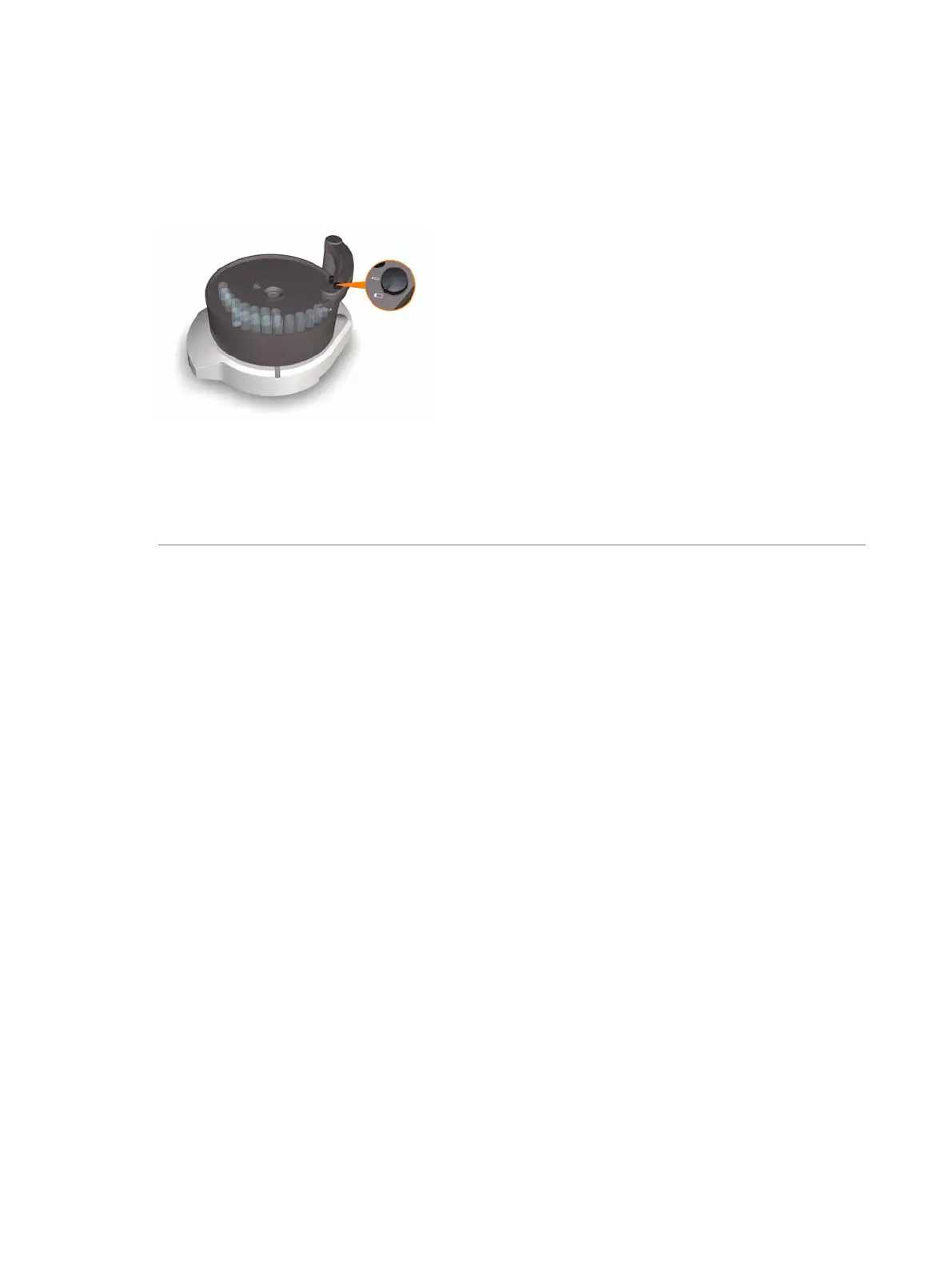

The sensor control can be switched between the two positions "small tubes" and "large tubes", indicated
in the illustration below.
The position for large tubes is used for tubes of approximately 18 mm i.d. and larger. The position for
small tubes is used for tubes smaller than 18 mm i.d.
Note that this is a rough approximation. Always check that the eluent tubing is centered above the
collection tube.
206 ÄKTA pure User Manual 29119969 AB
5 Operation
5.8 Fractionation
5.8.2 Prepare Fraction collector F9-R
