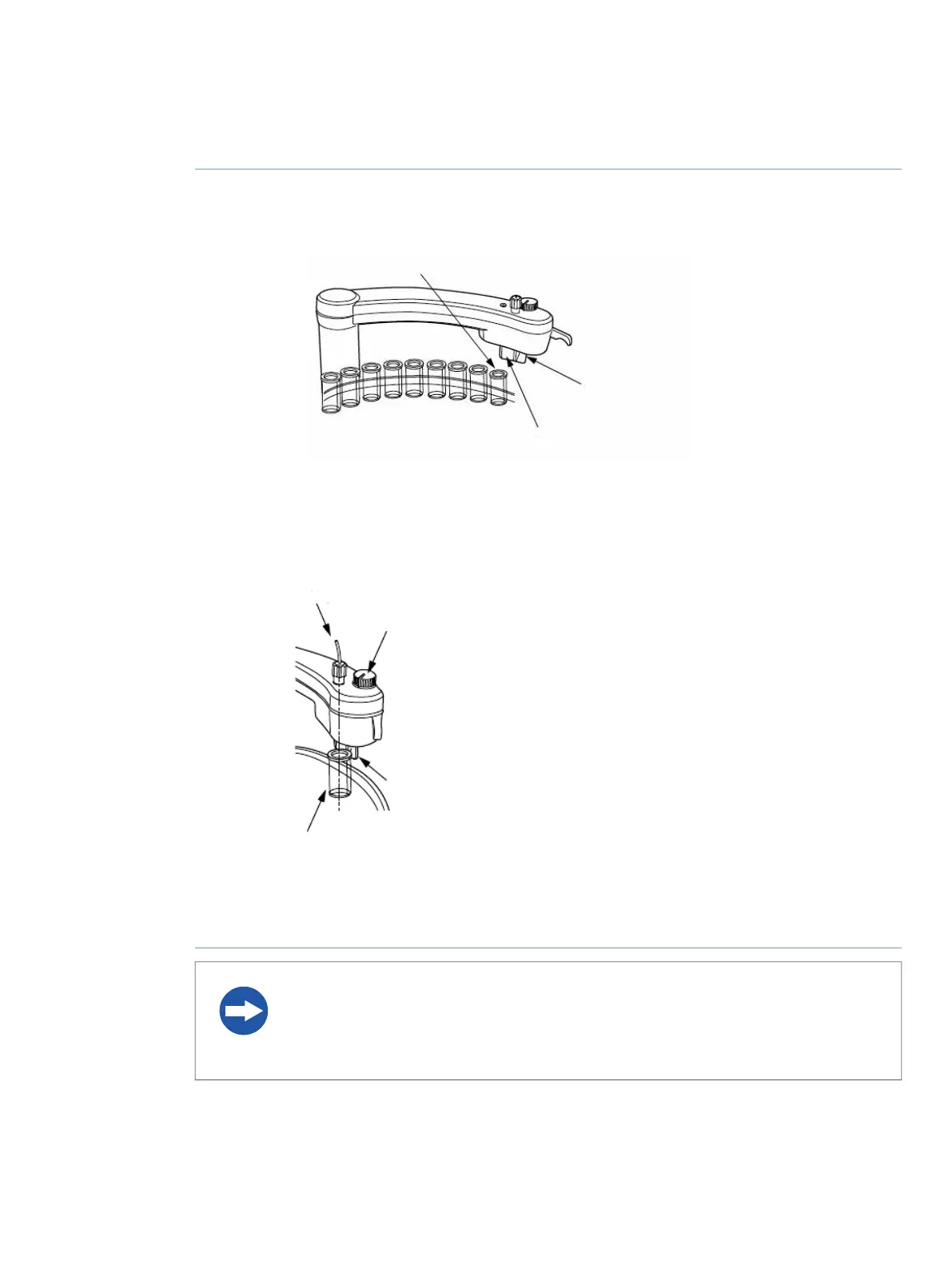

Adjust the height so that the horizontal mark (5) on the Tube sensor (6) is at the same
level as the top of the flat collection tubes and approximately 2 mm over the top of
the flanged collection tubes (4).
4
5
6
•
Lock the Delivery arm at this height with the lock knob.
3
Check that the Tube sensor (9) is in the correct position for the tubes used (10). The eluent
tubing (7) should be above the center of the collection tube.
4
7
8
9
10
Use the Sensor control (8) to position the Tube holder over the center of the collection
tube.
5
NOTICE
Never lift Fraction collector F9-R by the Delivery arm. This may damage the Fraction
collector.
ÄKTA pure User Manual 29119969 AB 205
5 Operation
5.8 Fractionation
5.8.2 Prepare Fraction collector F9-R
