Attach the new tubing to the inlet port:5
•
Thread the tubing from the interior of the fraction collector to the inlet port.
•
Slide the fingertight connector onto the tubing.
•
Insert the tubing with connector into the port. Make sure to insert the tubing all the
way into the bottom of the port.
•
Tighten the connector fully.
Thread the tubing into the fraction collector and through the tubing guide in the ceiling
of the fractionation chamber.
6

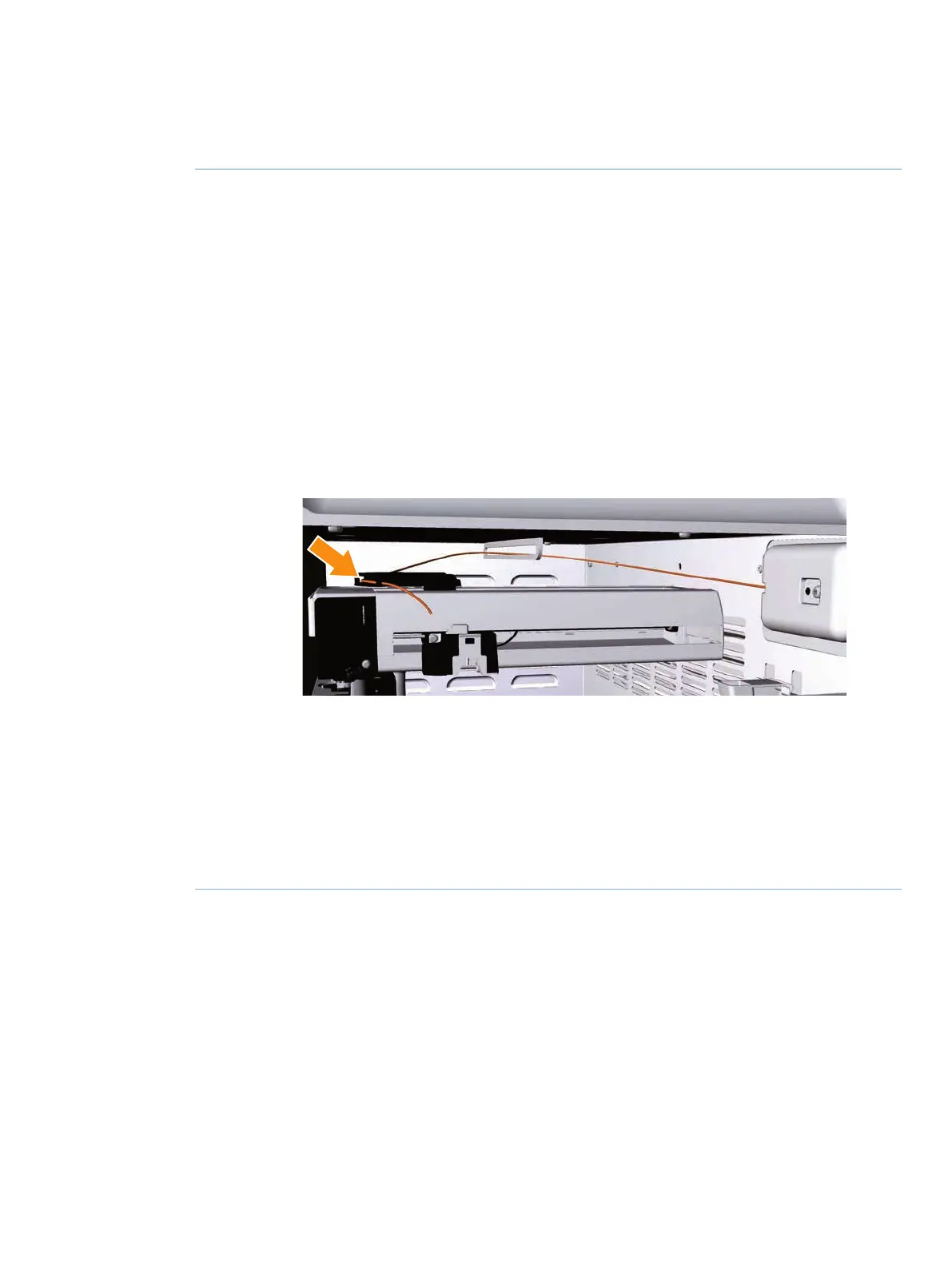

Position the new tubing:7
•
Gently move the fractionation arm forward while holding the tubing.
•
Thread the tubing through the second tubing guide.
Attach the new tubing to the dispenser head:8
•
Slide the fingertight connector onto the tubing.
•
Insert the tubing with connector into the port. Make sure to insert the tubing all the
way into the bottom of the port.
•
Tighten the connector fully.
Make sure that the tubing not is twisted or bent and that it does not dip downwards.9
