Familiarization, continued
D20 Rear
Panel:
non-VME

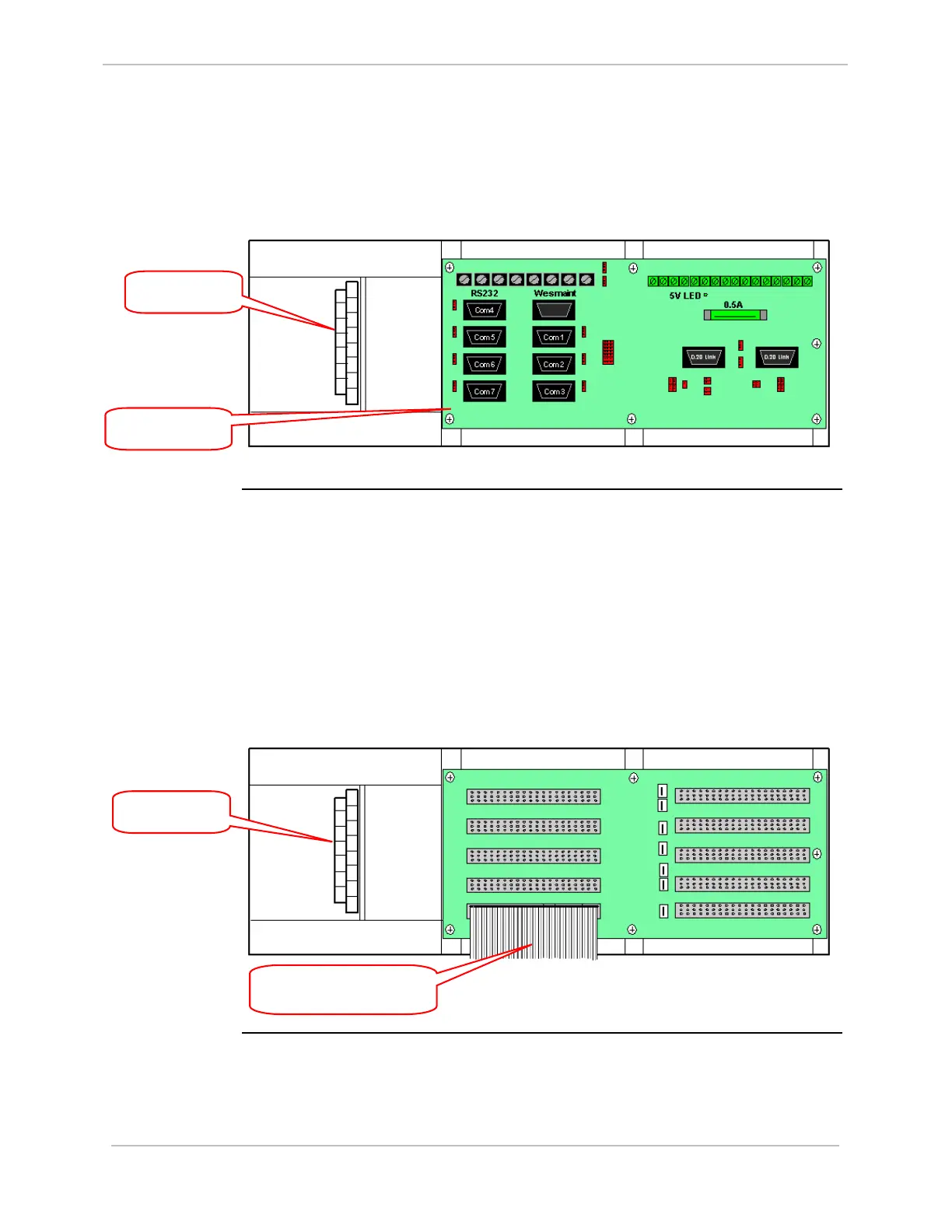

The Single Slot non-VME chassis has the WESTERM D20M+ SS Termination
Panel attached directly to the chassis:
D20 Rear
Panel: VME
The Termination panel for the VME version for the D20ME/ME II is the
WESTERM D20M+. A D20M+ is required for each D20ME/ME II board.
Termination panels are mounted separately to the D20 chassis. The VME chassis kit
is supplied with a VME bus backplane, called the WESTERM D20VME.
The VME bus backplane connects to the Termination panels using ribbon cables:
• Single D20ME/ME II to the D20M+ Termination panel with a ribbon cable from
Slot 1 on the bus backplane
• Multiple D20ME/ME II boards to D20M+ Termination panels from multiple
slots on the bus backplane
The WESTERM D20VME bus backplane for single D20ME/ME II board:
Power Supply
Connector Block
Ribbon cable from slot 1 to
WESTERM D20M+
Power Supply
Connector Block
WESTERM
D20M+ SS Panel
