D20EME
The D20EME is a self-configuring product. That is, the D20EME main board has no
jumpers or switches to define parameters such as:
• VME interrupts
• Ethernet bus address
• Global memory starting address
• Global memory size
EME Main
Board Jumper
& Component
Locations

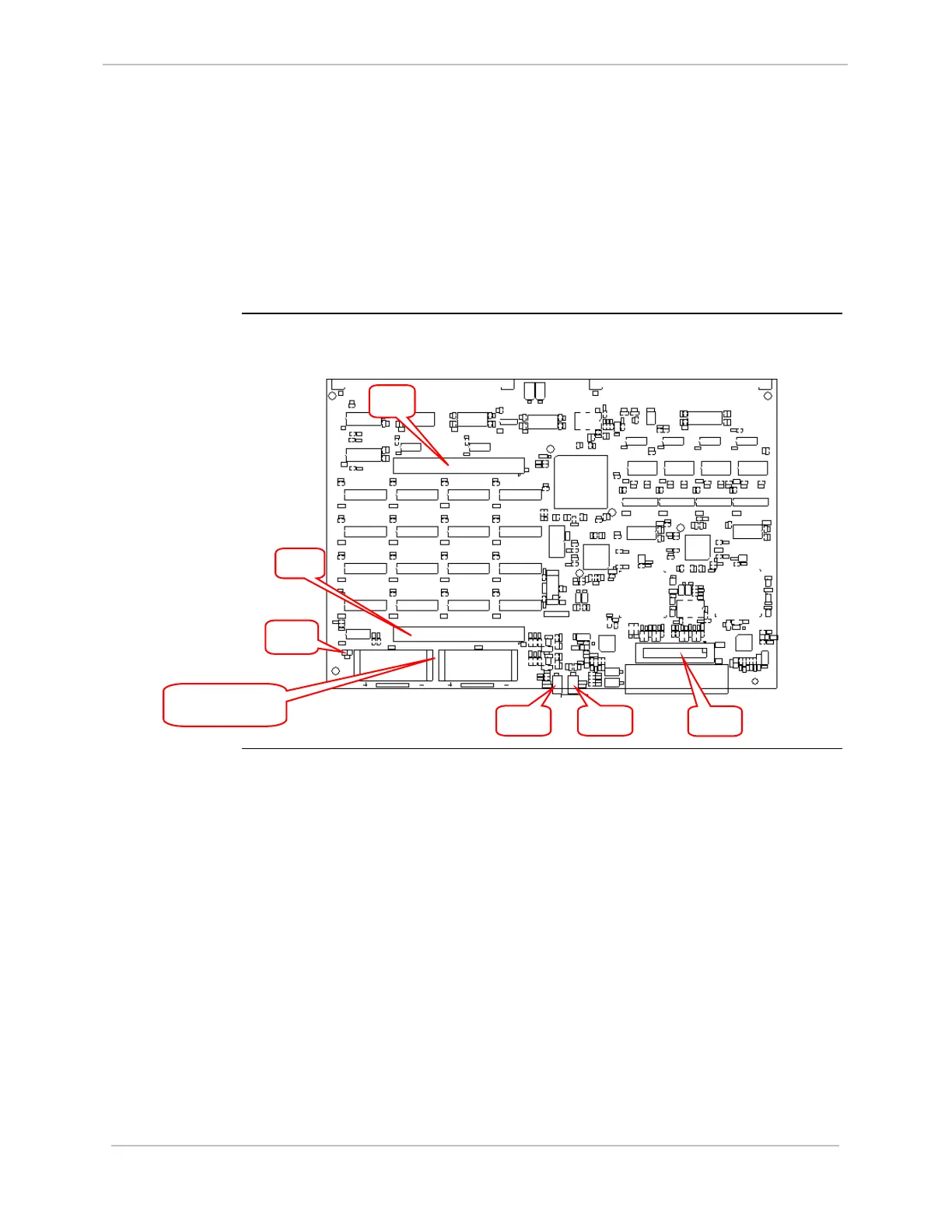

The following diagram identifies the location of the key components:
J2
JP5
J1
P4
D11 D12
Lithium Batteries
BT1 & BT2
