GE Energy
D20/D200
Installation and Operations Guide
General 994-0078-2.00-7
Full
67
Connections and Configuration, continued
WESTERM
D20S: Jumpers

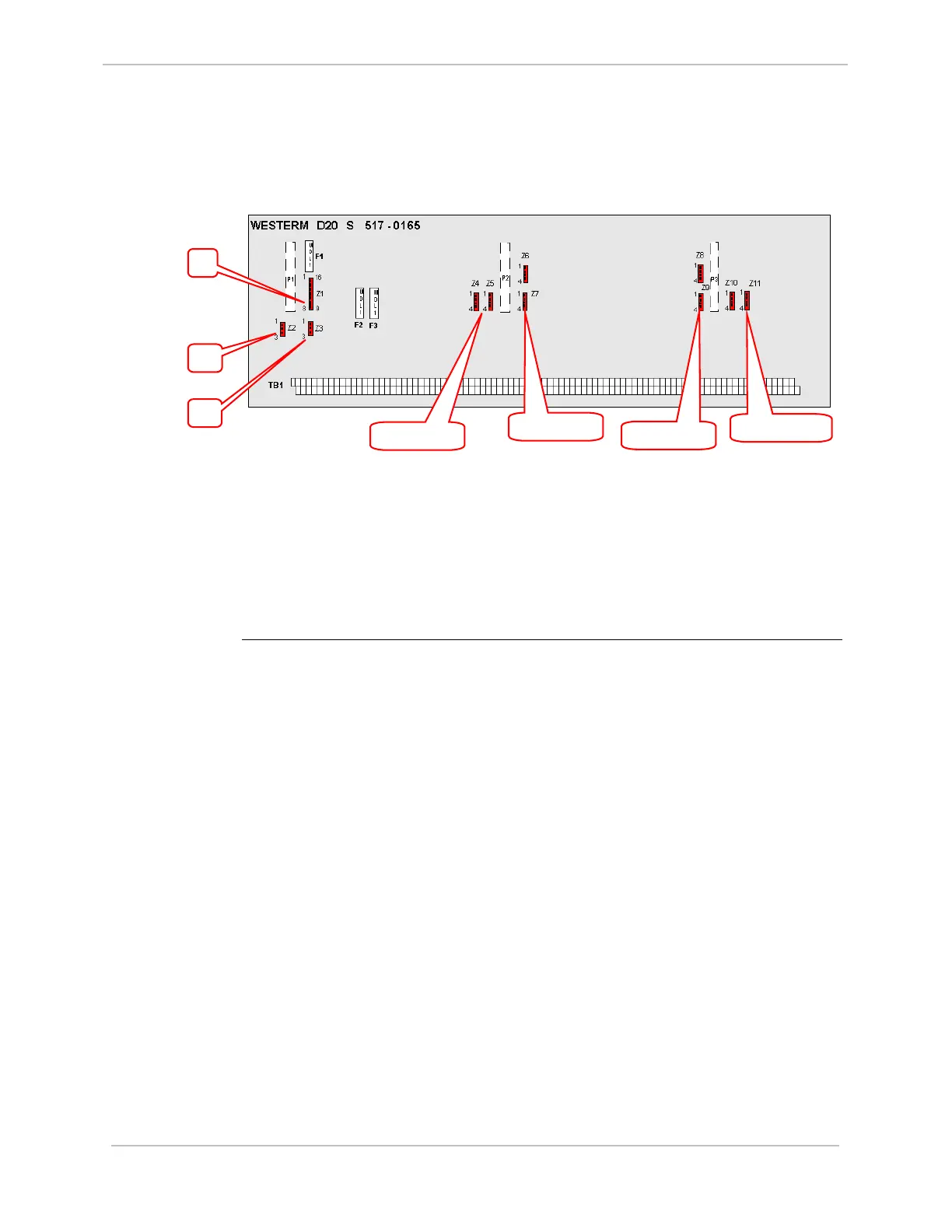

Jumper locations on the WESTERM D20S:
To set Module address jumpering on Z1, see “WESTERM Addressing”, page 65.
Use ju
mpers:
• Z2 and Z3 for supply voltage setting
• Z4 to Z11 to set wetting configuration for 64 digital inputs (DI) in groups of
eight
See table below, next page.
Z1
Z2
Z3
Z4 & Z5
Z6 & Z7
Z8 & Z9
Z10 & Z11
