GE D20 - Page 25

GE Energy
D20/D200
Installation and Operations Guide
General 994-0078-2.00-7
Full
23
Familiarization, continued
WESTERM
D20M++
Termination
Panel

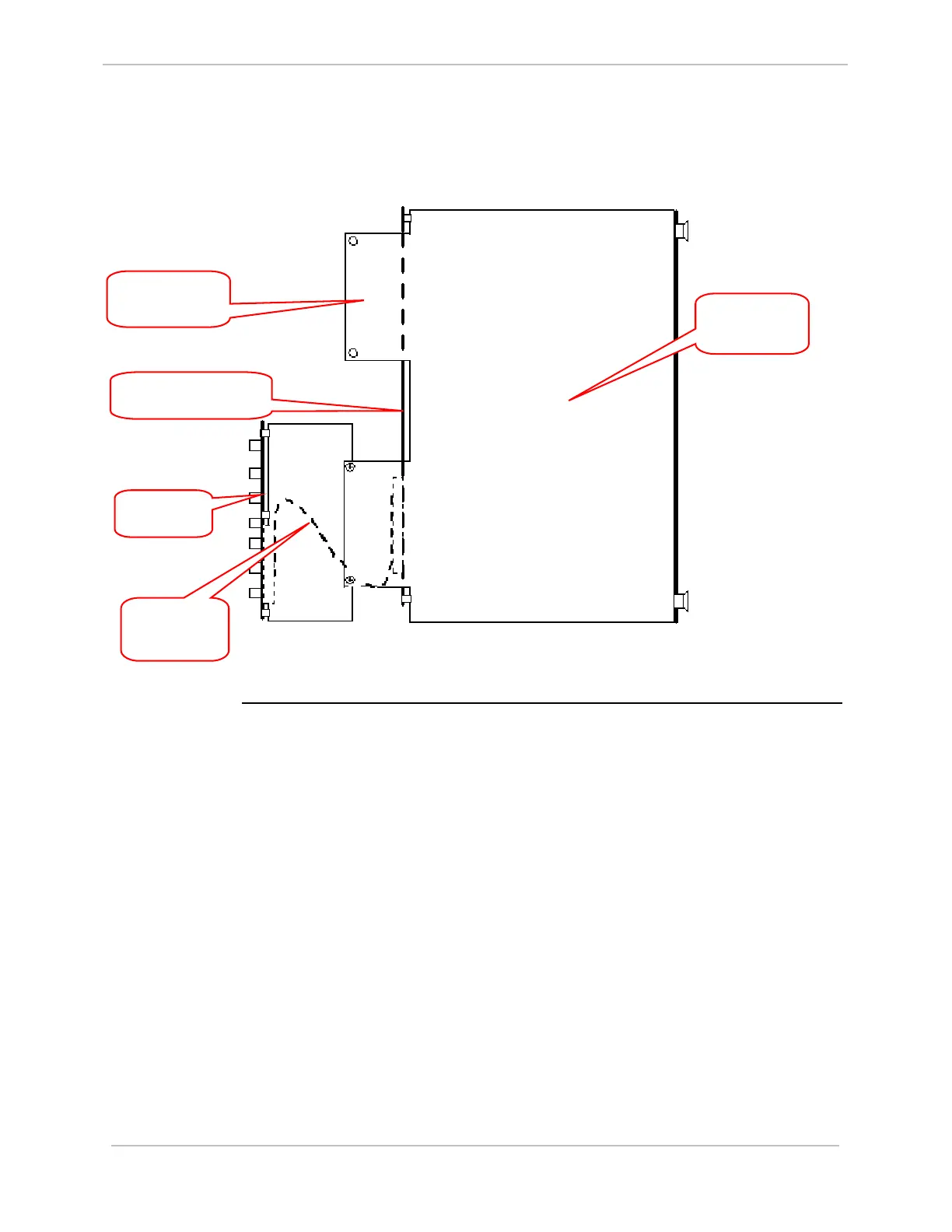

WESTERM D20M++ Termination Panels are mounted behind the VME bus
backplane:
FRONT
REA
R
Side of D200
Vertical Slot
Chassis
SCHROFF VME bus
backplane
Ribbon Cables
to SCHROFF
Backplane
WESTERM
D20M++
Mount for second
D20M++
