User Manual Druck DPI620 Genii
Example Procedure: Measure or Source Current 2.4
Figure 2-10 shows CH1 set-up to measure or source a
current with external loop power.
Note: When using the CH2 connectors, set CH 2 to measure
or source these ranges with internal or external loop power.
Set the appropriate function by selecting mA or mA +24V.
Loop power has three possible settings:
1) OFF 2) 24V 3) 28V
1. Set the applicable software option.
2. Complete the electrical connections and
continue with the measure or source operation.
3. Source only (Automation). Set the applicable
output value.

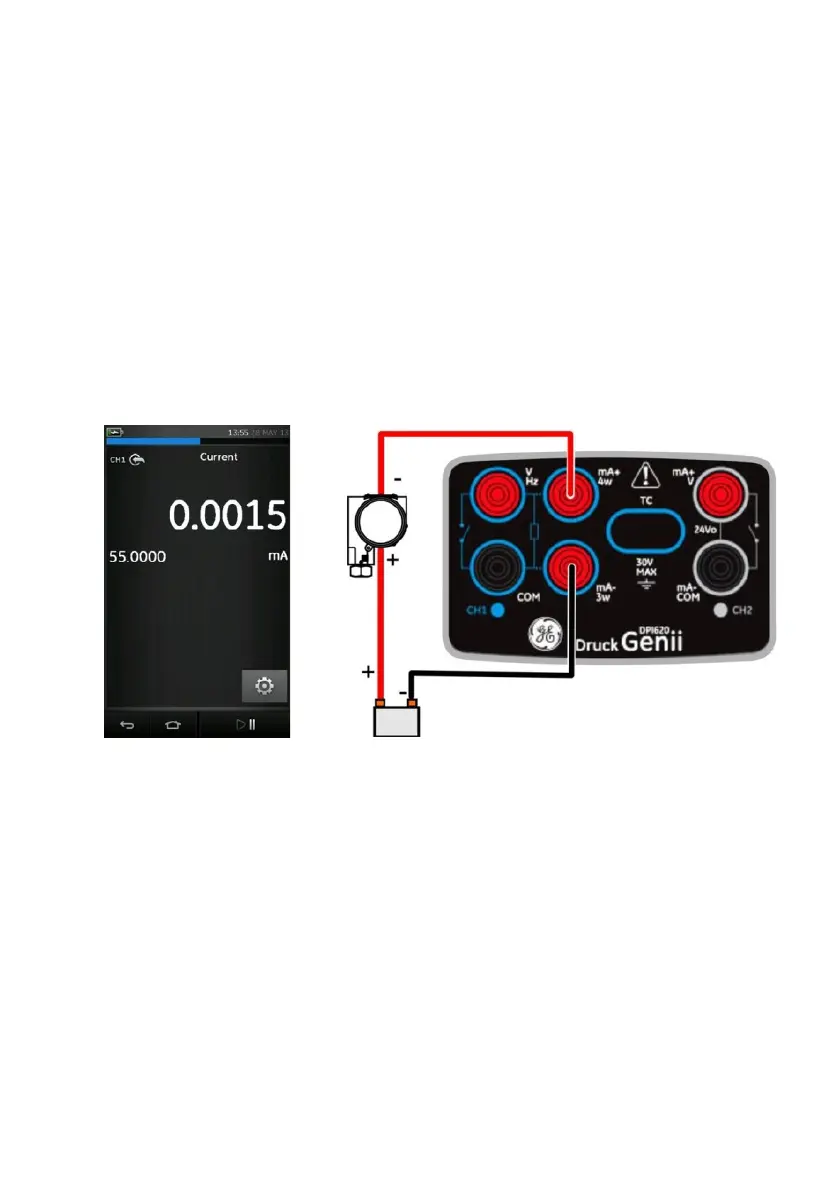

Figure 2-10 Measure current on CH1. Range ± 55 mA
06 June 2013 K0541 issue 1 Page 44 of 175
