GE Infinity M Series - System Components

NE-M Installation Guide H5692448
850050111 Issue 03 August 2017 10
Components
•
Systems (with 4 rectifier shelves)
• 13 U with 2 distribution panel positions
• 18 U with 3 distribution panel positions
• 22 U with 4 distribution panel positions
• Frameworks:
• Full-Height Frame
• Half-Height Frame
• Sub-frame
with frame mounting brackets
• Pulsar Plus or Millennium II controller
• NE830 Redundant Voltage Monitor
• NE-Series Rectifiers and Converters
• Front accessible AC terminal blocks
• Battery Options and Monitoring:
• Battery Trays with Disconnect Breakers or
Anderson PowerPole® disconnects
• LVBD Contactors
• Thermal/Voltage Probes
• External Ambient Temperature Probes
• Battery Shunt
• DC distribution options:
• Bullet Terminal Panels – 26 position
• Fit in 1 distribution position
• Single Voltage (24V or 48V) or
Selectable Voltage per position
• Integrated return bar
• Bullet terminal breakers up to 250A
• TPS fuses up to 70A
• GMT module fuses up to 15A – 6 position
• Shunt option
• Bolt-in breaker Panel – 12 position
• Mounted in
• Bottom 2 distribution positions with
integrated return bar
or
• Bottom distribution position with top
of frame return bar.
• KS22012 breakers up to 600A
• TPL-C Fuse holders

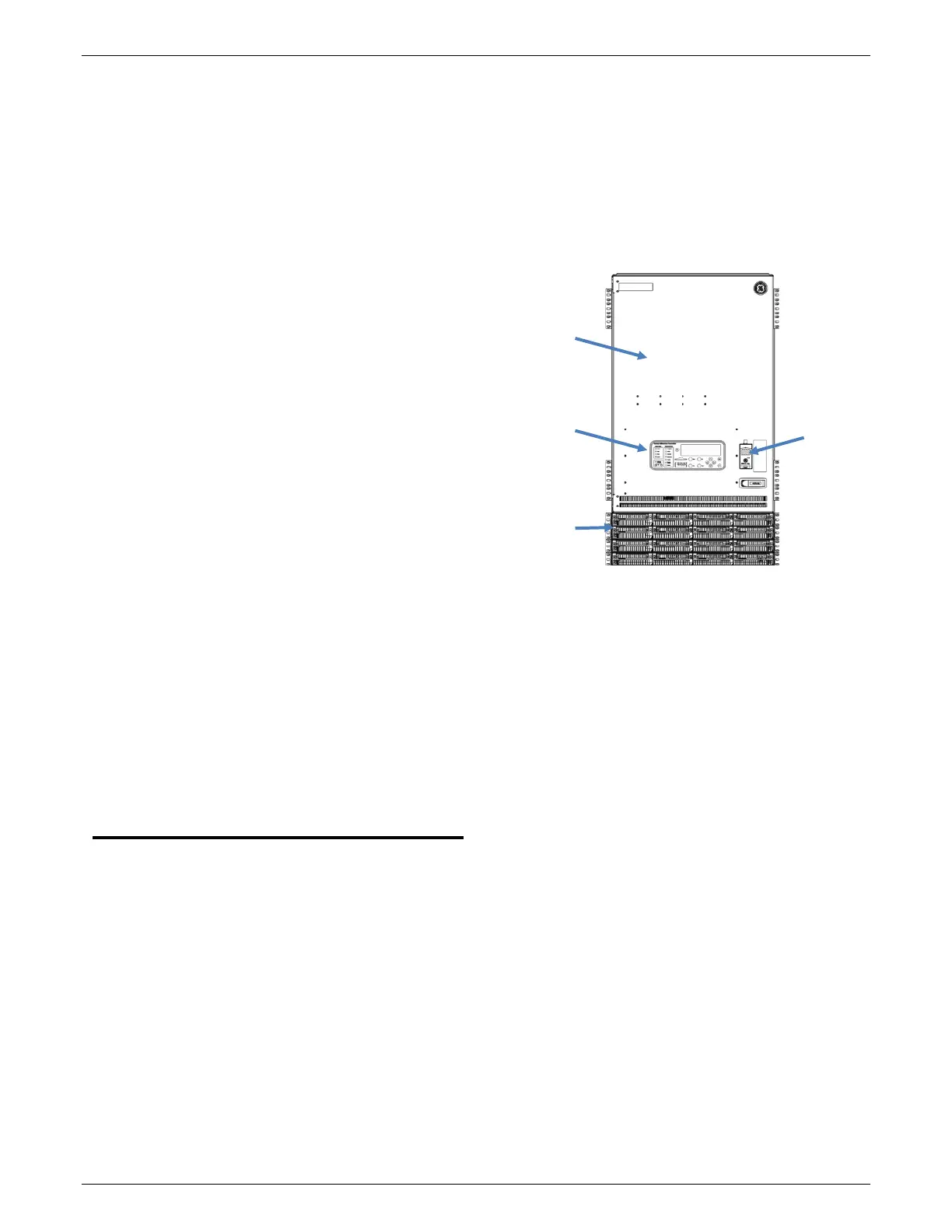

Figure 2 NE-M Components
•
Additional Power shelves
9 shelves maximum
7 AC powered shelves maximum
AC Input
Terminals, DC
Output
Distribution,
and Battery
Connections
Milllennium
Controller
NE Series
Rectifiers and
Converters
NE830
Voltage
Display
