GE Infinity M Series - Figure 24 RPM Connections

NE-M Installation Guide H5692448
850050111 Issue 03 August 2017 26
Step Action

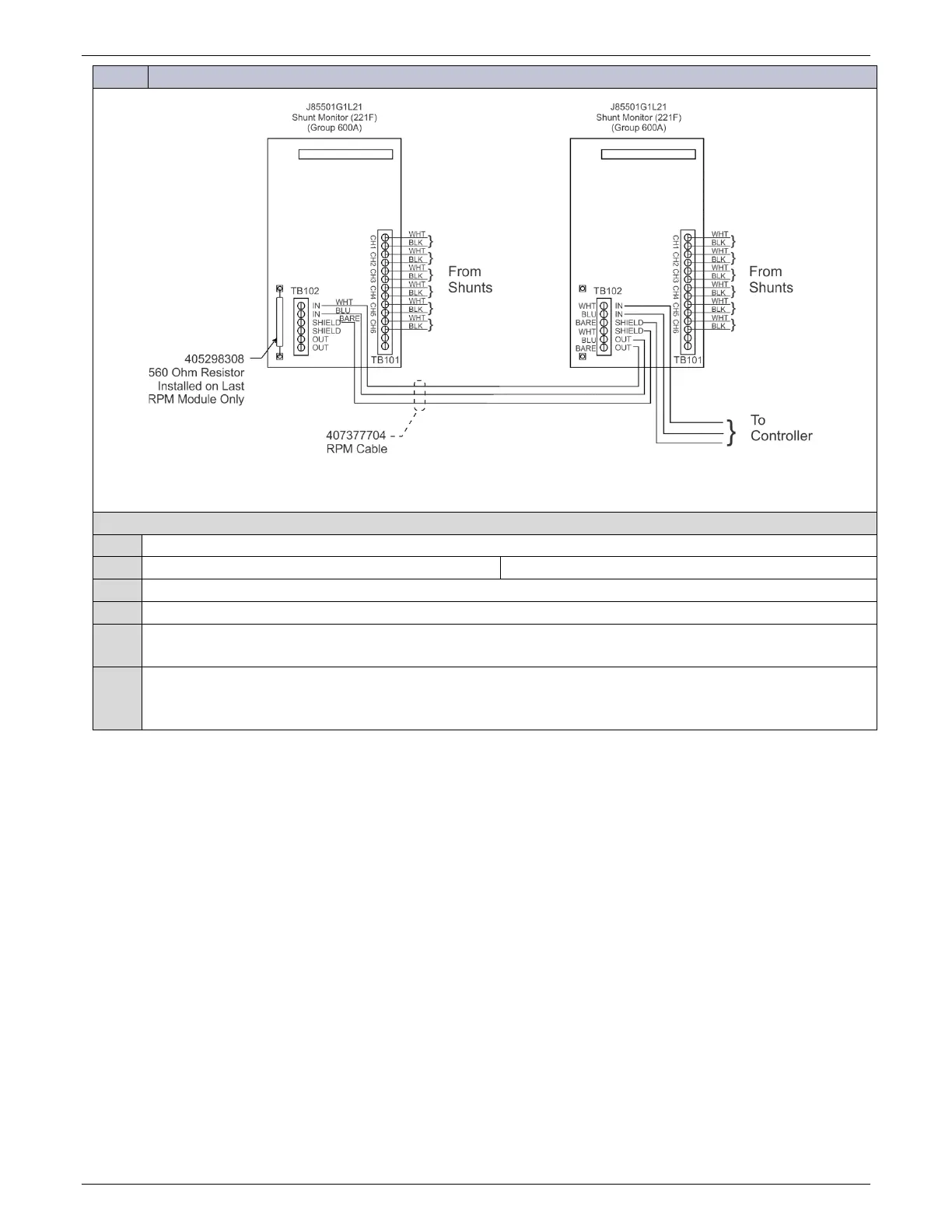

Figure 24 RPM Connections
Connect RPMs
RPMs in Supplemental Frame?
Yes – go to Step 9.
No – go to next section.
9 Connect 407377704 RPM cable between RPMs as shown.
10 Set RPMs to unique addressed using RPM SW1 and DW2 rotary switches (refer to RPM manual).
11
Move 560 Ohm resistor from RPM in Initial frame to the last RPM in the daisy chain in the Supplemental frame.
Only the last RPM in the daisy chain should have the resistor.
12
After applying power
a. Configure Plant Shunt 2 for Supplemental Frame -see Configure Millennium II Controller section.
b. Configure the RPM channels per site installation instructions – refer to RPM manual.
